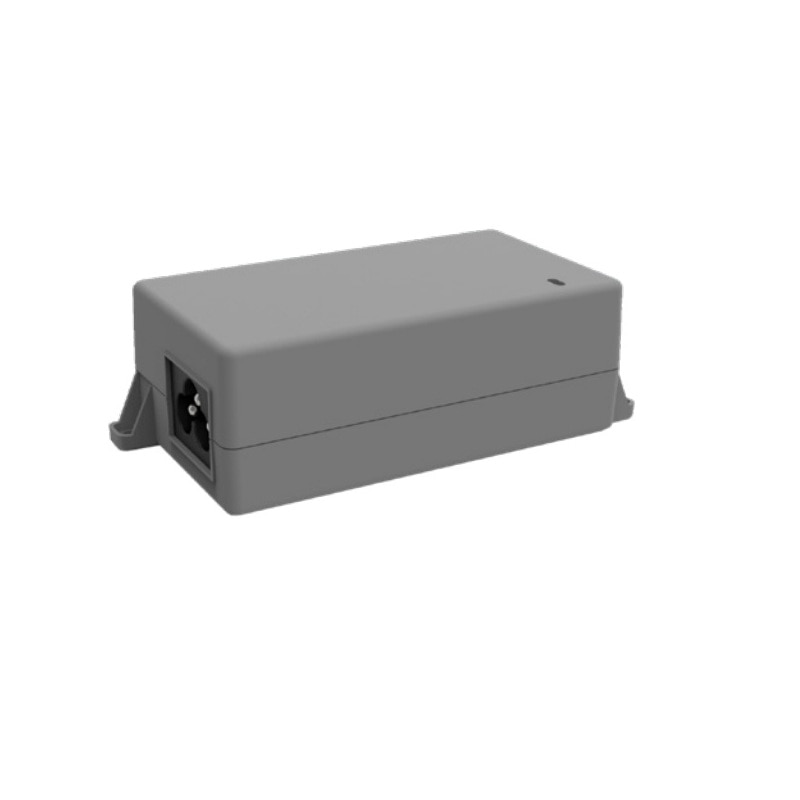

Mimosa Gigabit Power over Ethernet Injector 24V, 0.5A, 12W

(0)No Reviews yet
US$‎14.00
Tariff/Surcharge Fee: US$2.45
  • SKU: PoE Injector 24V 502-00025
  • Manufacturer: Mimosa Networks
  • Data Sheet: Download
236 in stock
College Station
236 In stock

Product Information

Mimosa Networks 502-00025

PoE Injector 24V, Mimosa Gigabit Power over Ethernet Injector 24V, 0.5A, 12W with IEC-320 C6 3 pin inlet for C5 series and A5x. Requires C5 3 pin Power Cord (Not included)

Mimosa's wide range of Power over Ethernet (PoE) solutions are designed for a clean installation in any environment.

Supporting many county specific plugs and power options, Mimosa's PoE is the best power solution for your wireless installations .

Specifications

Specifications 502-00025

Dimensions97 mm x 53.5 mm x 35.5 mm (3.8” x 2.1” x 1.4”) L x W x H
Weight 0.13 kg (4.6 oz)
ColorGrey
Gigabit LAN Yes, (2) RJ-45
Output Voltage 24 V === 0.5A
Max Current Load0.5A (12 W)
2-Pair Powering PIN 1/2 and 4/5: +24 V PIN 3/6 and 7/8: GND
Input Voltage100–240 VAC ~ 50/60 Hz; Max 0.75A
Input Current 0.5A @ 90 VAC
Input Frequency47–63 Hz
Max In-Rush Current70A @ 230 VAC
Ripple Voltage120 mV
ProtectionOver Current; Over Voltage
Efficiency82+% - Level VI
RJ-45 TypeMetal-Shielded
AC ConnectorIEC-320 C6 (3 Pin Inlet)
Operation Indicator1 LED (Blue)
Operating Temperature0º C to +40º C
Operating Humidity10% to 90% non-condensing
Storage Temperature-20º C to +80º C
ComplianceEMI FCC Part 15 Class B EN 55022/24 Class B / CE IEC61000-4 Safety UL/cUL 60950-1 GB4939 TUV:GS IEC60905 RCM/C-Tick S-Mark NOM Others WEEE/RoHS
