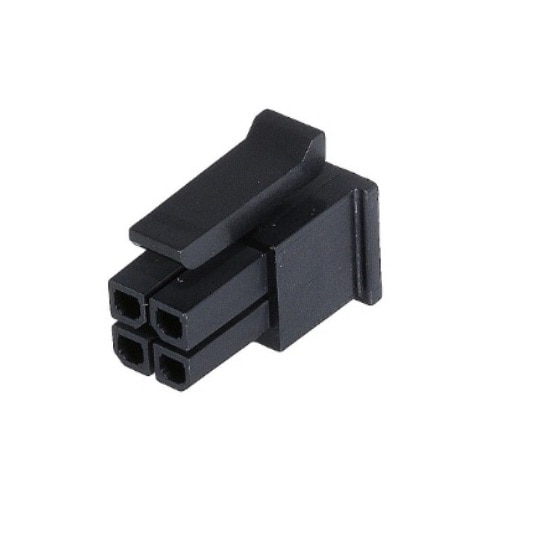

Molex Mini-Fit Jr. Receptacle Housing, Dual Row, UL 94V-0, 4 Circuits
- SKU: 39-03-9042
$0.54
- Manufacturer: Molex
- Data Sheet: Download
Product Information
Molex 39-03-9042
Mini-Fit Jr.™ Receptacle Housing, Dual Row, UL 94V-0, 4 Circuits
Application Power, Wire-to-Board, Wire-to-Wire
Specifications
Specifications 39-03-9042
| Type | Receptacle Housing |
| Number of Positions | 4 Position |
| Pitch | 4.2 mm |
| Number of Rows | 2 Row |
| Row Spacing | 4.2 mm |
| Mounting Style | Cable Mount / Free Hanging |
| Termination Style | Crimp |
| Contact Gender | Socket (Female) |
| Series | 5557 |
| Tradename | Mini-Fit Jr. |
| Application | Power, Wire-to-Board, Wire-to-Wire |
| Wire Gauge | 16 AWG |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 105 C |
| Brand | Molex |
| Contact Type | Socket |
| Current Rating | 13 A |
| Flammability Rating | UL 94 V-0 |
| Housing Colour | Black |
| Housing Gender | Female |
| Housing Material | Nylon |
| Unit Weight | 1.021 g (0.0022 lbs) |
