Perfect Vision Mount, Non Penetrating 1 7/8" & 2" Mast-Adjustable

(0)No Reviews yet
  • SKU: NPR6B
  • Manufacturer: Perfect Vision
  • Data Sheet: Download
6 in stock
College Station
6 In stock

Product Information

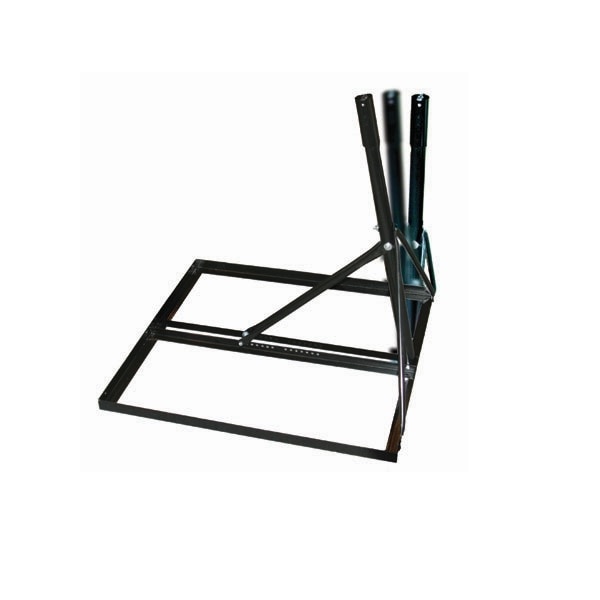

Perfect Vision NPR6B

Mount, Non Penetrating 1 7/8" & 2" Mast-Adjustable

This adjustable, non-penetrating roof mount is designed for the slim line and the international dish. The mast is reversable for easier installation with a 1 3/4" OD on one end and a 2" OD on the opposite end, the installer simply selects the diameter when assembling the frame. No holes need to be drilled in the roof surface, this avoids reluctance by building owners and reduces the possibly of roof leaks. The total weight of the assembly can be varied by the use of either "light" concrete blocks or standard weight blocks. This and ALL roof mounted antenna assemblies should be tethered to the building with a flexible steel cable for maximum security.


Features:

  • Two Mast diameters of 1.75” & 2.00” available by inverting the mast
  • Minor adjustment of mast pitch from 2 degrees positive to 10 degrees negative
  • Black powder coated steel construction
  • 1 .50” angle steel frame
  • Holds eight concrete blocks for ballast
  • No roof drilling or roof penetration required
  • K.D. assembly allows easier portability to the roof.
  • Frame made from 1.5” angle steel
  • Inner angles taper to allow mounting of different O.D. mast
  • Mast pipe can be angled inward or outward for minor pitch changes
  • Mast pipe is 1.75” diameter on one end, 2.0” diameter on the other end
  • Self-tapping ground screw provided in the bolt kit

Specifications

Specifications NPR6B

Weight26 lbs.
Size35.75 in. wide x 2.50 in. high x 36.88 in. deep
