Perfect Vision Category 6 Cable, Riser, (Blue), 1000' Pull Box
US$140.84
- SKU: PVCAT6R-BLU-PB
- Manufacturer: Perfect Vision
- Data Sheet: Download
Product Information
Perfect Vision PVCAT6R-BLU-PB
Category 6 Cable, Riser, 1000' Pull Box - Blue

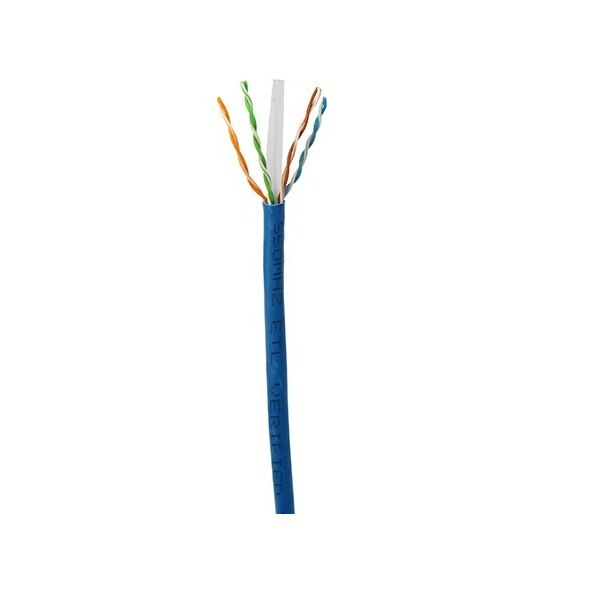

Four pair 24 AWG solid bare copper conductors with twisted pairs for non-plenum use.
Suitable for VOIP and Telephony. Outer PVC jacket is available in white, grey & blue and is UV resistant.
Features:
- 1000ft of cable so even the longest projects can be connected
- Optimized for VOIP and telephony usage
- Made with a copper cable that offers better connectivity
- White
- ETL Listed

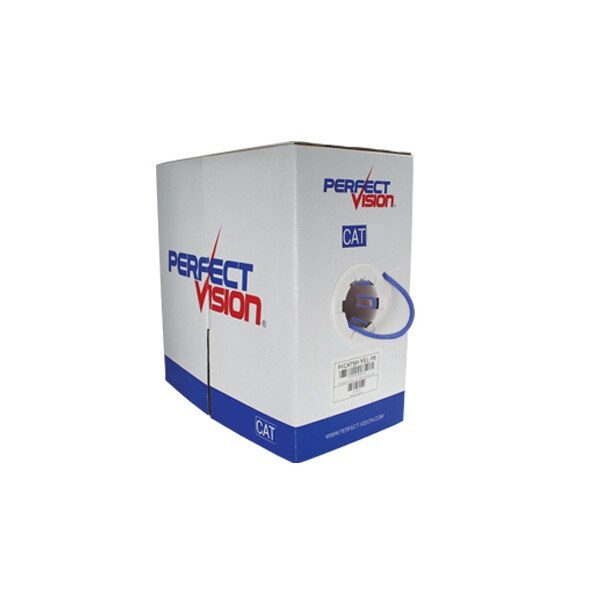

- EZ Pull Box
- 1000' Box
- Weight: 29.76 lbs
- Dimension: 16.14 in. wide x 8.26 in. high x 16.14 in. deep
Specifications
Specifications PVCAT6R-BLU-PB
| Number of Pairs | 4 |
| Total Number of Conductors | 8 |
| AWG | 23 ( 0.55 mm ) |
| Conductor Material | Solid Copper |
| Insulation Material | HDPE |
| Insulation Diameter | 1.0 mm |
| Spline Material | PE |
| Outer Jacket Material | FR-PVC |
| Outer Jacket Ripcord | Yes |
| Shipping Weight | 29.6 lb / 1,000 ft Pull Box |
| Max. Recommended Pulling Tension | 38 lb |
| Min. Bend Radius (Install) | 1.0 in ( 2.5 cm ) |
| Operating Temperature Range | -20°C to + 75°C |
| Footage Markers | 0 to 1,000 ft |
| Flame Rating | ETL Listed CMR |
| Impedance@ 1 to 250 MHz | 100 ± 15 Ohms |
| Nominal Mutual Capactitance @ 1 KHz | 15 pf/ft |
| Nominal Velocity of Propagation | 70% |
| Maximum Delay Skew | ≤ 45 ns/100 m |
| Maximum DCR Unbalance @ 20° C ≤ | 5% |
| Maximum Conductor DCR @ 20° C | 9.5 Ohms/100 m |
| Maximum Operating Voltage UL | 300 V RMS |
| Transmission Standard | Meets or exceeds TIA/EIA-568-C.2 Swept to 500 MHz |
