Positron Access G.hn (MIMO) to Gigabit Ethernet BridgeAC Wall Adapter included. RPF Support, acts as PSE

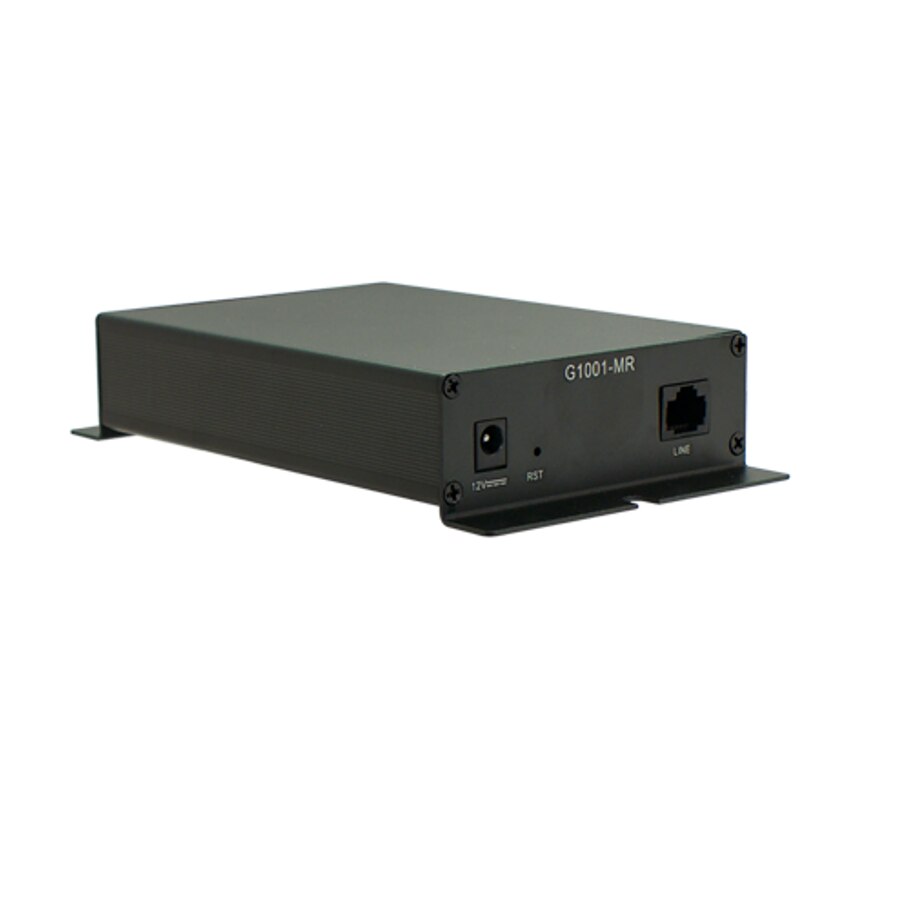

Positron Access G1001-MR

G.hn (MIMO) to Gigabit Ethernet BridgeAC Wall Adapter included. RPF Support, acts as PSE

“Fiber to the Home” is far from the only and most ef cient technology to deliver Gigabit Internet access to subscribers. Retro tting an existing (brown eld) Multi-Dwelling Unit (MDU) with ber is complex and expensive. The Positron G.hn Aggregation Multiplexer (GAM) family delivers near symmetrical Gigabit Internet access to subscribers in MDUs over the existing telephone or coaxial infrastructure at a fraction of the cost of alternatives.

The G1001-MR and G1001-CR G.hn to Ethernet Managed Demarcation Point devices power the Positron rugged IP67 (outdoor and extended temperature) GAM family with support for the ETSI Reverse Power Feed (RPF). Support for RPF facilitates the installation of the GAM outside of the MDU or MTU and in areas where it is not simple or cost effective to install a local power source. The GAM-8-MRX and GAM-4-MRX respectively have eight (8) and four (4) MIMO ports and can operate when powered from G1001-MR devices in SISO or MIMO mode. The GAM-4-CXR has four (4) COAX ports and can operate when powered from G1001-CR devices. Each G1001-MR or G1001-CR powers a single G.hn port of the outdoor GAM devices.

The ITU-T G.9960 G.hn Wave-2 standard is designed to leverage the existing telephone wiring (UTP, CAT-3 or CAT-5/5e) or RG-6/RG-59 coax cabling with an access technology that delivers a Gigabit Internet service to each subscriber at a lower cost and without the complexity and delays associated with in-building fiber installation. G.hn is used as an Access technology by Operators looking to simplify their access network and backend infrastructure with an Ethernet-like technology that is highly scalable without some of the inherent complexity of DSL-related technologies. With G.hn as the Access technology, Operators deliver advanced services such as Gigabit High Speed Residential Internet and 4K IPTV without the high capital and operational expenses associated to a fiber retrofit. The Positron GAM solution is MEF CE 2.0 compliant and is ideally suited to deliver Business Ethernet services in an MDU and/or MTU deployment.

About the G1001 Managed Demarcation Point with RPF Support

When operating in a Reverse Power Feed mode, the outdoor GAM devices will always make sure that each G.hn End-Point devices it serves evenly contribute to provide power to the GAM via RPF. This means that the outdoor GAM will reject G.hn End-Point devices that do not provide their share of the power required by the GAM.

The G1001 devices control how a Residential Gateway (or User CPE) connects to the G.hn Access Network under the control of the Positron GAM. In this role, they make sure the information transmitted over the G.hn links is protected with strong AES-128 encryption. When used in Point-to-Multipoint mode (coaxial wiring), the G1001-CR operates under control of the GAM to isolate the traf c from each subscribers that share the same coax splitter.

Features:

• G.hn Wave-2 to Ethernet Bridge over Twisted Pair
• Supports Multiple Input Multiple Output (MIMO) and Single Input
• Single Output (SISO) modes
• G.hn port (RJ45 port)
• One (1) 10/100/1000BaseT RJ45 port
• Supports Reverse Power Feed (acting as a Power Sourcing Equipment - PSE)
