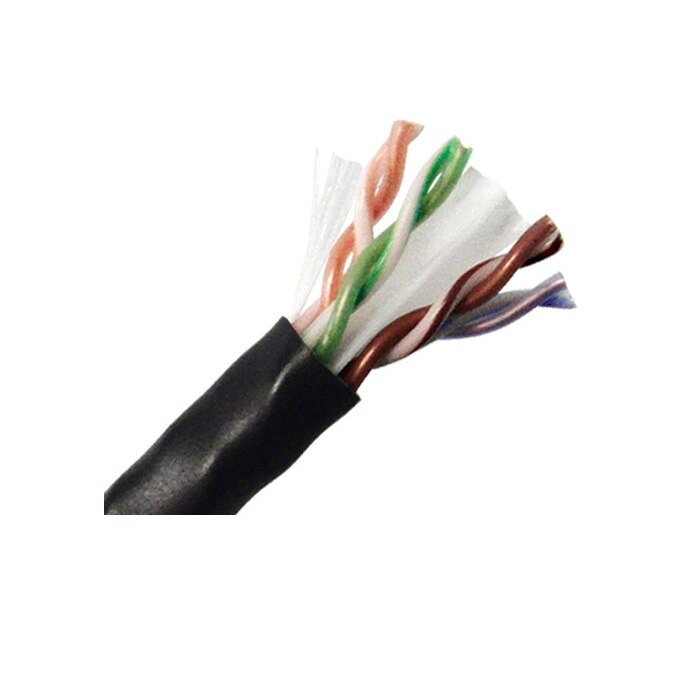

Primus CAT6 Plenum Bulk Ethernet Cable, CMP UL Listed, Solid Copper UTP, 23 AWG 1000FT - Black
- SKU: C6UP-3224BK
- Manufacturer: Primus Cable
- Data Sheet: Download
Product Information
Primus C6UP-3224BK
CAT6 Plenum Bulk Ethernet Cable, CMP UL Listed, Solid Copper UTP, 23 AWG 1000FT - Black
Our CAT6 CMP Rated Plenum Cable is ideal for your indoor voice, data, video, and security networking applications. Whether you are wiring your home, office, or entire campus, we have the network solution that is right for you.
This UL Listed CAT6 CMP Rated Plenum Cable is the perfect fit for reliable installations where the cable will be used indoors. This cable's 8 conductors (4-Pairs) are solid bare copper with Foam-FEP insulation and a CMP plenum-rated Flame Retardant PVC jacket that is also RoHS Compliant. Our UL Listed Category 6 CMP Plenum Rated Cable is designed for indoor LAN applications, making it the best solution for indoor installation runs that require cable to be installed in plenum areas.
To make sure we are supplying our customers with high-quality bulk Ethernet cables our cable have to meet and/or exceed CAT6 ANSI/TIA-568.2-D standards. Our CAT6 cable is also manufactured to meet current CAT6 guidelines and is verified by outside standards organizations to be UL Listed as well as RoHS Compliant.
Features:
- High-Performance Data Communications Cable
- Suitable For 600MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet, And 155Mbps TP-PMD CDDI
- 4-pair, Easily Identified Color-Striped Pairs
- CAT6 Unshielded Twisted Pair (UTP) cable
- 23 AWG Solid Bare Copper Conductors
- Excellent Attenuation And Crosstalk Characteristics
- Sequential Foot Markers On Jacket
- Exceeds ANSI/TIA-568.2-D, CSA, and ISO/IEC 11801 Specifications
- Designed For Indoor Installations
- Flame Retardant PVC Jacket, (FR-PVC)
- UL Listed CMP-LP (0.5A)
- PoE ++
- Supplied In 1000FT Pull Boxes
- Category 6 CMP-Rated Cable
- Designed For Indoor Plenum Rated Installations
- RoHS Compliant
Specifications
Specifications C6UP-3224BK
| Weight | 34lbs. / 1000FT |
| Dimension | 16 in. wide x 16 in. high x 9 in. deep |
| Storage Temperature Range | 0 ~ +30°C |
| Installation Temperature Range | 0 ~ +50°C |
| Operating Temperature Range | -20 ~ +60°C Bulk Cable Weight 34lbs. / 1000FT |
| Max. Recommended Pulling Tension | N/A |
| Min. Bend Radius/Minor Axis | N/A |
| Min. Bend/Installation | N/A |
| Test Object | Jacket |
| Test Material | PVC |
| Before Tensile Strength | Min. 1.407 Kgf/mm2▫ Aging Elongation Min. 100%▫ Aging Condition 136°C x 168hrs |
| After Tensile Strength | Min. 75% ▫ Aging Elongation Min. 75% ▫ Cold Bend N/A |
| Conductor Size | 23AWG |
| Conductor Material | Solid Bare Copper |
| Insulation Material | Foam-FEP |
| Insulation Diameter | 0.99mm |
| Number of Conductors | 8 Conductors |
| Number of Pairs | 4 Pairs |
| Outer Shield Material | N/A |
| Outer Jacket Material | Flame Retardant PVC |
| Outer Jacket Diameter | 6.0mm |
| Outer Jacket Rip Cord | Yes |
| Capacitance Unbalance Max | 160 pF/100mm |
| Nominal Velocity of Propagation | N/A |
| Maximum Delay | N/A |
| Maximum Delay Skew | N/A |
| Maximum Conductor DC Resistance | 9.38 (@ 20°C OHm/100m) |
| Maximum Operating Voltage - UL | N/A |
| Maximum DCR Unbalanced | 2% (@ 20°C) |
| Attenuation (Maximum) | ▫ 31.1dB/100m (328.1ft.) @ 250MHz ▫ 52.7dB/100m (328.1ft.) @ 600MHz |
| NEXT (Minimum) | ▫ 35.3dB/100m (328.1ft.) @ 250MHz ▫ 29.0dB/100m (328.1ft.) @ 600MHz |
| PS-NEXT (Minimum) | ▫ 32.7dB/100m (328.1ft.) @ 250MHz ▫ 26.3dB/100m (328.1ft.) @ 600MHz |
| Return Loss (Minimum) | ▫ 10.0dB/100m (328.1ft.) @ 250MHz ▫ 6.2dB/100m (328.1ft.) @ 600MHz |
