Primus Cable CAT6 Bulk Cable - (U/UTP) CM, 23AWG 8/C Solid BC (ETL), 1000' Pull Box - Green
- SKU: C6U-419GR
- Manufacturer: Primus Cable
- Data Sheet: Download
Product Information
Primus Cable C6U-419GR
CAT6 Bulk Cable - (U/UTP) CM, 23AWG 8/C Solid BC (ETL), 1000' Pull Box - Green
Our CAT6 CM Cable is ideal for your indoor voice, data, video and security networking applications. Whether you are wiring your home, office or entire campus, we have the network solution that is right for you.

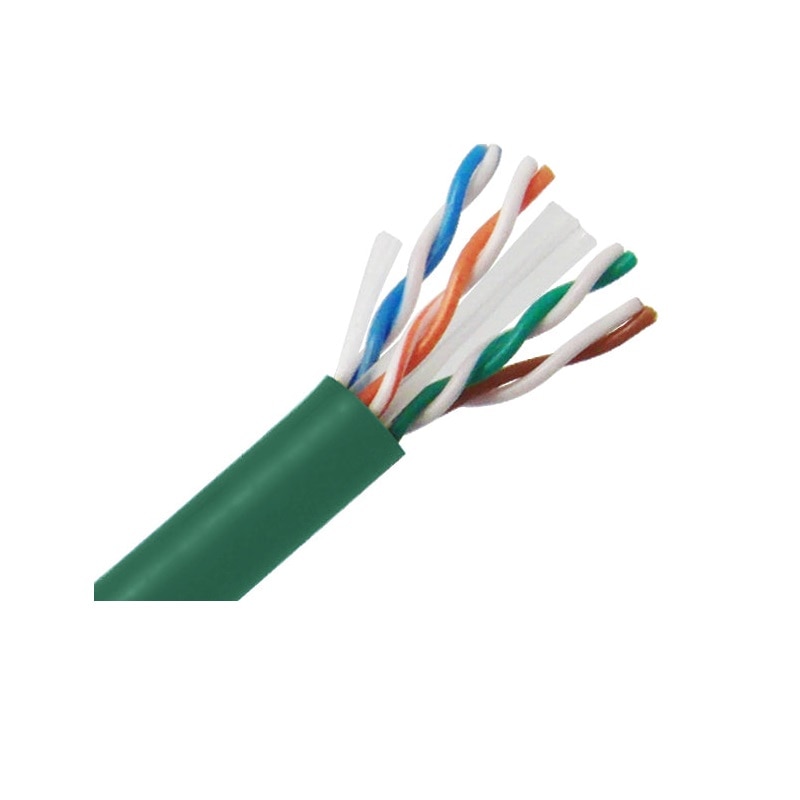

This CAT6 CM Rated Ethernet Cable is the perfect fit for reliable installations where the cable will be used indoors. This cable's 8 conductors (4-Pairs) are solid bare copper with a high density polyethylene (HDPE) insulation and a PVC CM rated RoHS Compliant jacket. Our ETL Listed Category 6 CM Rated Cable is designed for indoor LAN applications, making it the ideal solution for indoor installation runs that require the cable to be installed in walls or any other non-plenum areas. This cable is also tested up to speeds of 600MHz.
To make sure we are supplying our customers with high quality bulk Ethernet cables our cable have to meet and/or exceeds CAT6 ANSI/TIA-568.2-D standards. Our CAT6 cable is also manufactured to meet current CAT6 guidelines and is verified by outside standards organizations including ETL so that our cables are ETL Listed as well as RoHS Compliant.
Features:
- High-Performance Data Communications Cable
- Category 6 CM Rated Cable
- Suitable for 600MHz High-Speed Data Applications, Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD/CDDI
- Designed for Indoor CM Rated Installations
- Category-6 Unshielded Twisted Pair (UTP) Cable
- 4-Pair Easily Identified Color Striped Pairs
- 23 AWG Solid Bare Copper Conductors
- Excellent Attenuation and Crosstalk Characteristics
- ETL Verified
- ANSI/TIA-568.2-D, RoHS Compliant
- Sequential Length Markings on Jacket
- Supplied in a 1000' Pull Box
Applications:
- 10/100/1000Base-T
- 100Base-VG
- Suitable for Category 6 Enhanced High Speed Data Applications
- 155 Mbps And 622-Mpbs ATM
- Other High-Performance Applications: ▫ Backbone ▫ Floor-To-Floor Backbone ▫ Horizontal Cabling To Desktop
Specifications
Specifications C6U-419GR
| Weight | 33.05 lbs |
| Dimensions (L x W x H) | 17" x 17" x 10" |
| Conductor Size | 23AWG |
| Conductor Material | Solid Bare Copper |
| Insulation Material | Polyethylene |
| Insulation Diameter | 0.967 ± 0.03mm |
| Number of Conductors | 8 Conductors |
| Number of Pairs | 4 Pairs |
| Outer Shield Material | N/A |
| Drain Wire | No |
| Outer Jacket Material | CM-ETL PVC (Complies RoHS) |
| Outer Jacket Diameter | 5.7mm ± 0.3mm |
| Outer Jacket Rip Cord | Yes |
