Primus Cable Splice Tray - Plastic 12 Single Fiber Fusion, 6.5'Lx5.13'Wx.5'D
US$29.95
- SKU: FB25-3995STP12
- Manufacturer: Primus Cable
Product Information

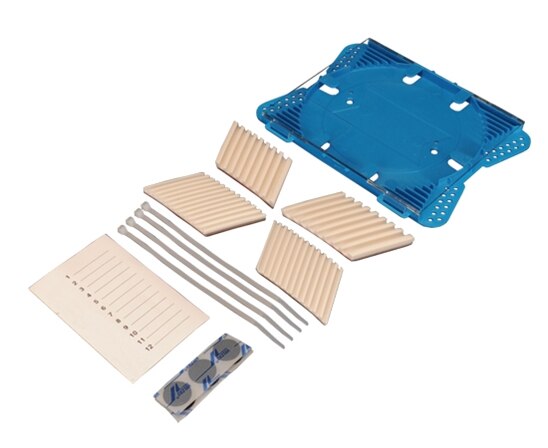

FB25-3995STP12 Fiber Splice Tray
12 Single Fusion Fiber Splice Tray
Compatible with Primus Cable FB23 Fiber Patch Panels and Wall Mount Enclosures
The Primus Cable FB25-3995STP12 Optical Fiber Splice Tray is designed to safely route and store optical fiber and associated splices. The tray is fully compliant to industry specification Telecordia GR-769, Splice Organizer Assemblies for Optical Fibers. The FB25-3995STP12 splice tray is designed to be installed into various Splice enclosures, as well as Wall and Rack mount Patch & Splice enclosures. The tray is one in a family of units that support fiber splicing. 0.5"x7"x4.75"
Specifications
Specifications FB25-3995STP12
| Splice Capacity | |
| Single Fusion | 12 splices |
| Dimensions | |
| Depth | 0.5" |
| Length | 6.5" |
| Width | 5.13" |
| Physical Properties | |
| Material | Plastic |
| Color | Blue base with clear cover |
