RF Elements StationBox XL Carrier Class 2.4GHz 14dBi
US$19.97 US$33.00
- SKU: SBX-XL-CC-2-14
- Manufacturer: RF Elements
- Data Sheet: Download
Product Information
RF Elements SBX-XL-CC-2-14

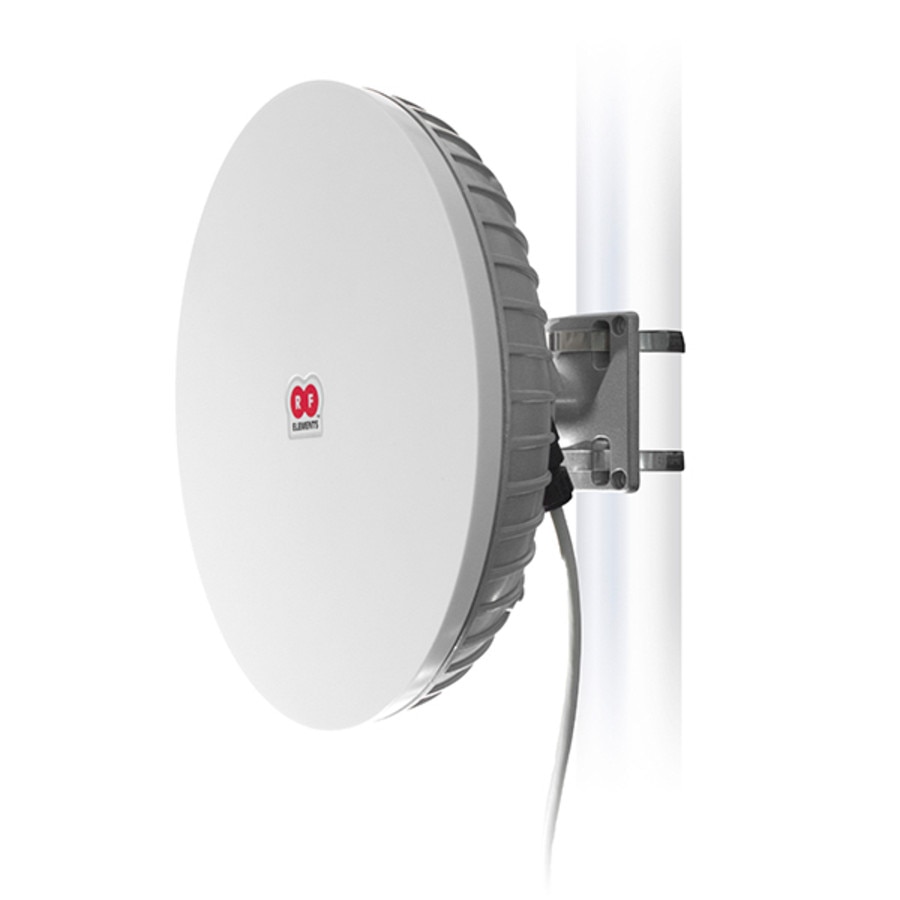

StationBox® XL
StationBox® XL is outdoor enclosure with built-in high gain dual polarization antenna. It is designed for easy integration with variety of MikroTik™ RouterBoards and deployment as mid-range CPE or short distance PtP connection.
Enclosure can host RB433 with 3 radio cards to feed other external antennas. Two models offer 19dBi gain in 5GHz band or 14dBi gain in 2,4GHz band.

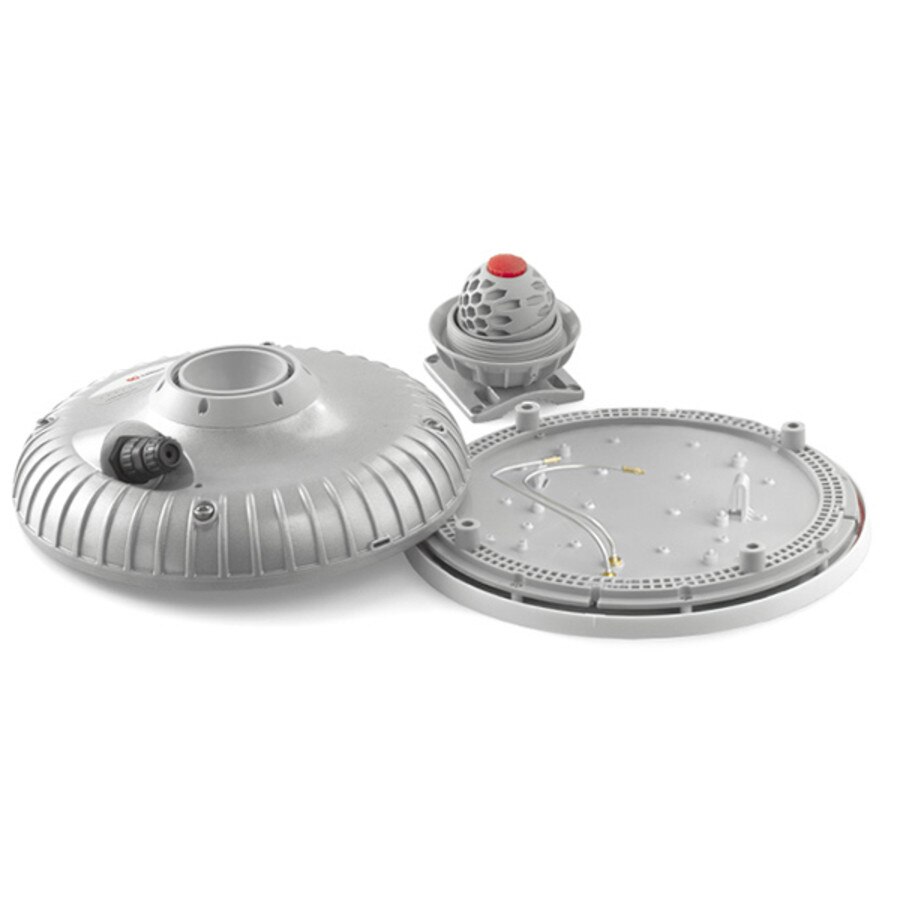

Unboxing
Integration
3-Axis Positioning System
Specifications
Specifications SBX-XL-CC-2-14
| Materials | Body - UV stabilized and weather resistant ABS plastic Bracket - Die Cast Aluminium Hardware - Stainless Steel |
| Operating Temp | -30 to +60 °C |
| Wind Survival | 120 km/h |
| Flame Rating | UL 94 HB |
| Mounting Diameter | 50-70 mm |
| Weight | 1.7 Kg / 3.75 lbs |
5GHz 19dBi MiMo Product ID: SBX-XL-5-19
| Frequency Range | 5470 - 5850 MHz |
| Gain Max | 19dBi |
| Polarization | Dual linear, H and V |
| Cross Pol Isolation | 27dB min. |
| Front/Back ratio | >24 dB |
| Beamwidth, azimuth (H) plane | 15° |
| Beamwidth, elevation (V) plane | 14° |
| VSWR: | max 1.5 (typical 1.25) |
| Impedance: | 50 Ohm |
| Max. Input Power: | 2W |
2.4GHz 14dBi MiMo Product ID: SBX-XL-2-14
| Frequency Range | 2400 - 2485 MHz |
| Gain Max | 14dBi |
| Polarization | Dual linear, H and V |
| Cross Pol Isolation | 25dB min. |
| Front/Back ratio | >24 dB |
| Beamwidth, azimuth (H) plane | 30° |
| Beamwidth, elevation (V) plane | 31° |
| VSWR: | max 1.5 (typical 1.25) |
| Impedance: | 50 Ohm |
| Max. Input Power: | 2W |
