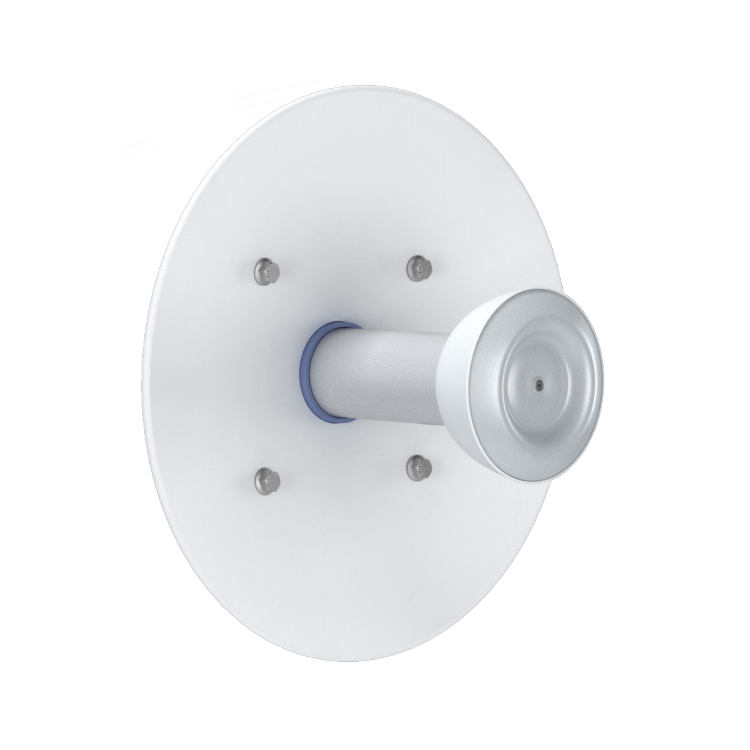

RF Elements StarterDish 21 UM Directional Parabolic Dish Antenna
- SKU: STD-21-UM-SINGLE
$75.40
- Manufacturer: RF Elements
- Data Sheet: Download
Product Information
RF Elements STD-21-UM-SINGLE
StarterDish 21 UM Directional Parabolic Dish Antenna
StarterDish™ antennas are designed for CPE applications. Antenna is light weight with their reflector made of aluminium. StarterDish™ antennas provide excellent beam performance in cost effective package. Antennas are easy to assemble and come in highly economical 5 packs.
Specifications
Specifications STD-21-UM-SINGLE
| PHYSICAL | |
| Antenna Connection | Waveguide Port |
| Antenna Type | Parabolic Dish |
| Enviromental | IP65 |
| Pole Mounting Diameter | 20-55 mm (recommend as close to 55 mm as possible) |
| Temperature | -35 °C to + 55 °C (-31 °F to + 131 °F) |
| Wind Survival | 160 km/hour |
| Wind Loading | 53 N at 160 km/hour |
| Mechanical Adjustment | ± 15° Elevation |
| Weight | 1.2 kg / 2.6 lbs – single unit (one antenna) 9 kg / 19.8 lbs – 5PACK (5 units) incl. package |
| Dimensions | Retail Box 5PACK: 695 x 447 x 110 mm / 27.3 x 17.5 x 4.3 inch |
| PERFORMANCE | |
| Gain | 21 dBi |
| Frequency Range | 5150 - 5950 MHz |
| Azimuth Beam Width -6 dB | H 15° / V 15° |
| Elevation Beam Width -6 dB | H 15° / V 15° |
| Azimuth Beam Width -3 dB | H 11° / V 11° |
| Elevation Beam Width -3 dB | H 11° / V 11° |
| Beam Efficiency* | 28% |
| Front-to-Back Ratio (Min) | 24 dB |
| COMPATIBLE WIRELESS PLATFORMS | |
| RF elements® | StarterAdapter™ SMA |
| Mimosa® by Airspan | C5x |
| Ubiquiti Networks® | PrismStation™ 5AC, IsoStation™ 5AC, IsoStation™ M5 |
