RF Elements 6GHz TwistPort™ Adaptor with RP-SMA Connectors
- SKU: TPA-SMA6
$20.00
- Manufacturer: RF Elements
- Data Sheet: Download
Product Information

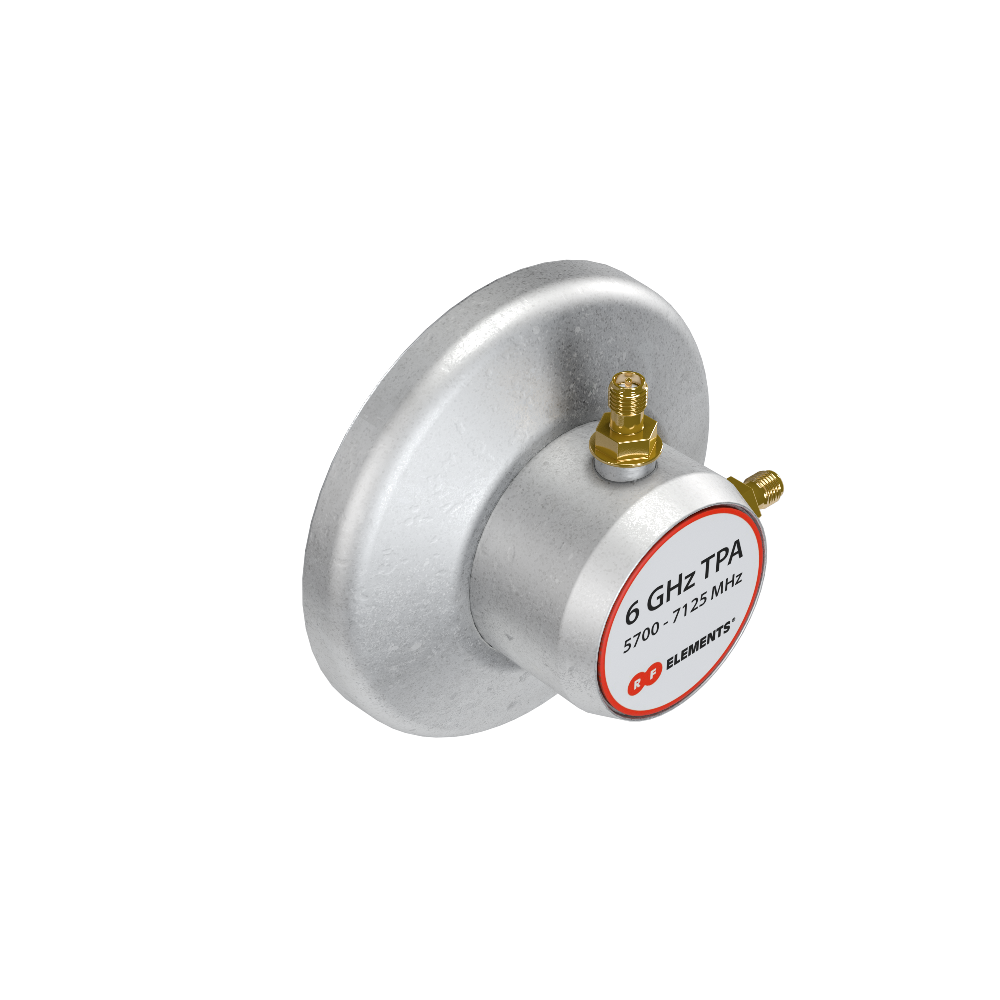

RF Elements TPA-SMA6
6GHz TwistPort™ Adaptor with RP-SMA Connectors
The TPA-SMA6 provides two RP-SMA female coaxial interface to TwistPort™ enabled antennas.
Specifications
Specifications TPA-SMA6
| Antenna Connection | TwistPort™ - Quick-Locking Waveguide Port |
| Radio Connection | 2x RP-SMA female |
| Materials | Aluminium |
| Enviromental | IP65 |
| Temperature | -40°C to +60°C (-40°F to +140°F) |
| Weight | 0.13 kg / 0.3 lbs – single unit 0.17 kg / 0.4 lbs – single unit incl. package 18.5 kg / 40.8 lbs – wholesale box (100 units) |
| Dimensions | Single unit retail box: 110 × 96 × 66 mm (4.3 x 3.7 x 2.6 inch) Wholesale box (100 units): 570 × 500 × 302 mm (22.4 x 19.7 x 11.9 inch) |
| PERFORMANCE | |
| Frequency Range | 5700 - 7125 MHz Check our online SpecCheck for performance data of the particular combination of feed (TPA) and antenna |
| Polarization | Dual Linear H + V |
| VSWR | Check our online SpecCheck for performance data of the particular combination of feed (TPA) and antenna |
| Impedance | 50 Ohm |
| COMPATIBLE WIRELESS PLATFORMS | |
| RF elements® | any UWB antenna: SH30UWB, SH60UWB, SH90UWB, AH60UWB, AH90UWB, UD29UWB 5 GHz Antennas: UH-TP-5-24, HG3-TP-S30, UD-TP-21, UD-TP-24, UD-TP-27 |
