  • Racom RAy3-18E-LC (1000, Power) Microwave unit RAy3, 18 GHz, 1x Gb Eth, 1x Gb SFP, 360 Mbps, +10 dBm

Racom RAy3-18E-LC (1000, Power) Microwave unit RAy3, 18 GHz, 1x Gb Eth, 1x Gb SFP, 360 Mbps, +10 dBm

(0)No Reviews yet
US$‎2,499.00 US$‎3,250.00
  • SKU: RAy3-18E-LC
  • Manufacturer: Racom
  • Data Sheet: Download

Out of Stock

 Open chat or call us for stock status

Product Information

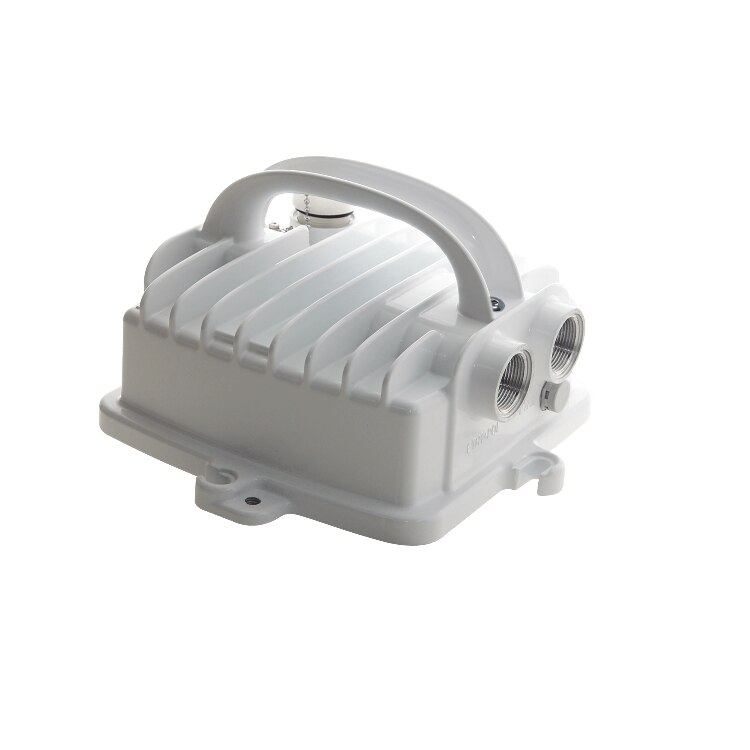

Racom RAy3-18E-LC

(1000, Power) Microwave unit RAy3, 18 GHz, 1x Gb Eth, 1x Gb SFP, 360 Mbps, +10 dBm



Features:

  • Processor without HW encryption support
  • TX in Lower part
  • Sub-band C (17.700-18.300)
  • SW key, Capacity up to 1 Gbps
  • SW key, RF Output power +23 dBm

Security

Device

  • Peer unit can be paired and permanently monitored to prevent unauthorized unit exchange
  • Unique SSH key for each serial number

Management

  • HTTPS:Web interface, SSL (X.509) certificate
  • SSH: Command Line Interface
  • SNMP

Access Control

  • Role-based access control (RBAC), 3 levels
  • Guest – read only (3 users)
  • Admin – full access, no user accounts config (10 users)
  • Super – full access, user accounts config (10 users)

Data Security: Payload encryption

  • AES 128/256 CCM
  • Based on IPsec
  • One tunnel on the link between Ethernet ports
  • Periodic cryptographic keys exchange (IKE)
  • Pre-Shared Key (PSK) peer authentication
  • Encryption significantly reduces payload
  • Available on special request only (SW key)

Reliability

  • 3 years warranty standard, optionally longer
  • Mean Time Between Failure (MTBF) > 100 years: Application note
  • Industrial hardened design
  • Each unit tested in a climatic chamber (-30 / +55 °C ) and in real traffic
  • Rugged die-cast aluminum case
  • Heavy-duty industrial components
  • Components sourced exclusively from manufactures / authorized dealers
  • No adjustable components, No moving parts…
  • Embedded overvoltage and electrostatic surge protection: Electrostatic discharge (ESD) 8 kV, Surge Immunity 4 kV
  • Exceptional robustness against noise and interference
  • 1+1 redundant solution available for RAy3 – 18 GHz (two units, one antenna + Dual polarization extender)

Radio channel

  • Licensed band (18 GHz): Predictability, Non-shared operation, Guaranteed capacity and Quality of Service, Fully under the user’s control
  • Unlicensed bands (17, 24 GHz): Built-in spectrum analyzer for free channel searching, Asymmetric channels, Narrow channels, No duplexer, but polarization switch with flexible location
  • Hitless ACM (Adaptive Coding and Modulation): Extremely fast, working without any data loss
  • ATPC (Automatic Transmit Power Control): Increases reliability of the link under hostile conditions

Scalability

HW models

  • The same HW for both, upper and lower frequency for 17 and 24 GHz
  • => minimizing spares, enabling easy link reconfiguration
  • Different HW for upper and lower frequency and three sub-bands for 18 GHz
  • Variants within one HW model are possible

SW keys

  • SW authorization keys allow to use advance features like higher Data speed or Encryption only when and where needed
  • Future investment protection – gradual upgrade
  • 360 Mb/s, 500 Mb/s, 1000 Mb/s, Encryption, Power (RAy3-18 GHz only)
  • SW key 360 Mb/s is uploaded in each unit from the factory

IP features

  • Extensive configuration of advanced IP features is possible.
  • Switch:RMON counters, PIRL setup, Egress queues, Application note – Switch Block Diagram, Application note – Switch Settings Examples
  • QoS: 802.1p, DSCP
  • VLAN: 802.1q

Specifications

Specifications RAy3-18E-LC

Sub-band A17.700 – 18.209
Sub-band B18.167 – 18.690
Sub-band C17.700 – 18.300
Channels5; 7; 7.5; 10; 13.75; 20; 27.5; 30; 40; 50; 55; 60; 80; 100;110 MHz
Duplex spacing1008, 1010 MHz @ Sub-band A, B 1560 MHz @ Sub-band C
Gross data rate4.2 – 1010 Mb/s
FECLDPC

Modulation5 MHz110 MHz
QPSK_S4.2 Mb/s @ -99.0 dBm96 Mb/s @ -85.0 dBm
QPSK7.2 Mb/s @ -95.0 dBm166 Mb/s @ -81.0 dBm
16 QAM12 Mb/s @ -90.5 dBm287 Mb/s @ -76.0 dBm
32 QAM17 Mb/s @ -85.5 dBm400 Mb/s @ -71.0 dBm
64 QAM22 Mb/s @ -82.5 dBm513 Mb/s @ -68.5 dBm
128 QAM26 Mb/s @ -80.0 dBm604 Mb/s @ -65.5 dBm
256 QAM30 Mb/s @ -77.0 dBm698 Mb/s @ -62.5 dBm
512 QAM34 Mb/s @ -74.0 dBm791 Mb/s @ -59.5 dBm
1024 QAM38 Mb/s @ -70.5 dBm881 Mb/s @ -56.0 dBm
2048 QAM (7 - 112 MHz)42 Mb/s @ -67.0 dBm958 Mb/s @ -52.0 dBm
4096 QAM (14 - 56 MHz)-1010 Mb/s @ -48.0 dBm

ACM
RF Output power-1 to +23 dBm (all modulations and channels)
ATPCYes
MTU10240 B
Latency (RFC 2544)<150 μs (66 B, 352 Mb/s); <200 μs (1518 B, 352 Mb/s) <100 μs (66 B, 1010 Mb/s); <150 μs (1518 B, 1010 Mb/s)
SynchronizationSynchronous Ethernet; 1588v2 transparent clock
Electrical
Primary powerPoE active, IEEE 802.3 bt (PoE++); PoE passive 37 – 60 VDC; DC 37 – 60 VDC; floating
Power consumptionTyp. 30 W for Tx < +17 dBm (w/o SFP); 33 W for Tx >= +17 dBm (w/o SFP)
Interfaces
Ethernet1x 10/100/1000 Base-T Auto MDI/MDIX / RJ45
SFP1x 10/100/1000 Base-T/1000Base-SX/1000Base-LX (power max. 1.25 W)
USBUSB 2.0 / Host A
RSS voltageTwo contact sockets
Indication LEDSystem status (multicolor)
Environmental
IP Code (Ingress Protection)IP66
MTBF (Mean Time Between Failure)> 1.000.000 hours (> 114 years)
Operating temperature- 30 to + 55°C (ETSI EN 300019-1-4, class 4.1.)
Operating humidity5 to 95% non-condensing
Surge immunity4 kV acc. EN 61000-4-5
ESD resistance8 kV acc. EN 61000-4-2
Mechanical
CasingRugged die-cast aluminium
Size160 H x 245 W x 245 D mm (6.3 x 9.6 x 9.6 in)
Weight2.9 kg (6.4 lbs)
MountingFOD, direct mounting to antenna
Diagnostic
Real time monitoringRSS, MSE, BER
Diagnostic toolsSpectrum analyzer, Pinger, Radio loopback
History chartsTemperature, Power voltage, RSS, MSE, BER, Data rate, RF Output power
StatisticsRMON counters for all interfaces
Antenna alignmentRSS voltage, RAy Tools Mobile App, Web
SNMPv2c including configurable TRAPs
Security
ManagementHTTP, HTTPS, SSH, Telnet, RAyTools Mobile App
Access accounts3 levels (Guest, Admin, Super)
EncryptionAES256, 192, 128
Standards
ApprovalsCE (RED), FCC 101, RoHS
