Radwin 5.8GHz FCC, 250Mbps 2000 Alpha ODU with 22 dBi Integrated Antenna

  • SKU: RW-2050-6HB0
  • Manufacturer:
  • Data Sheet: Download
  • Availability: Open chat or call us for stock statusEmail me when this product is in stock!
US$‎620.00

Radwin RW-2050-6HB0

2000 Alpha ODU with 22 dBi Integrated Antenna, RW2000/ODU/Alpha/F58/FCC/INT/250M, 5GHz, 250Mbps net aggregate throughput, factory default 5.8GHz FCC

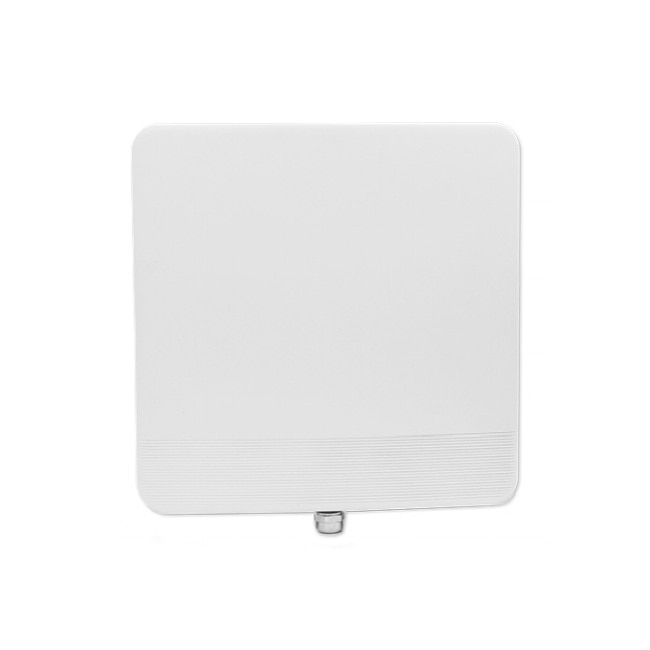

RW-2050-6HB0 is a carrier-class radio that belongs to the RADWIN 2000 Alpha Series and supports 5.1 to 5.8 GHz frequency range.

The Radio complies with FCC/IC & FCC bands with a factory default of 5.8 GHz FCC/IC. RW-2050-6HB0 delivers up to 250 Mbps throughput. The unit includes an integrated 22dBi antenna.


Features:

  • Up to 250 Mbps net aggregated throughput
  • Telco-grade, extremely robust in harsh conditions
  • Supports intra-site synchronization to maximize capacity
  • Configurable asymmetric throughput
  • Advanced OFDM & MIMO technologies for operation in nLOS/NLOS and dense radio environments
  • Integrated 22dBi antenna
  • IP-67
  • Can operate as SU PRO

Specifications RW-2050-6HB0

Configuration
Architecture Outdoor Unit with an integrated antenna
PoE to ODU Interface Outdoor CAT-5e; Maximum cable length: 100m for 10/100BaseT and 75m for 1000BaseT
Radio
Max Capacity 250 Mbps net aggregate throughput
Range Up to 40 km / 25 miles
Channel Bandwidth Configurable: 10, 20, 40, 80 MHz (for the default band); Dynamic Channel BW selection (20/40/80 MHz)
Modulation MIMO-OFDM (BPSK/QPSK/16QAM/64QAM/256QAM)
Adaptive Modulation & Coding Supported
Automatic Channel Selection Supported upon power up
DFS Supported (FCC)
Diversity Supported
Spectrum Viewer Supported
Max Tx Power 21 dBm
Duplex Technology TDD
Error Correction FEC k = 1/2, 2/3, 3/4, 5/6
Encryption AES 128
Support Indoor units RADWIN PoE devices (9921-102X)
Uplink / Downlink Allocation Configurable: Symmetric or Asymmetric
QoS Packet classification to 4 priority queues according to 802.1P or Diffserv
VLAN Support 802.1Q, QinQ, 4094 VLANs
TDD Intra Site Synchronization Supported
TDD Inter Site Synchronization Supported through common GPS receiver per site
ODU Management IPv4/IPv6 dual-stack; SNMP v1, SNMPv3; HTTP/HTTPS using web browser
Option 82 Supported
RADIUS Authorization Supported
RADIUS User authentication Supported
Syslog Supported
Mechanical
ODU Dimensions 32.5(w) x 32.5(h) x 6.4(d) cm
ODU Weight 2 kg / 4.41 lbs
Power
Power Feeding Power provided over ODU-IDU cable
Power Consumption <13W
Environmental
Operating Temperatures -35°C to 60°C / -31°F to 140°F
Humidity 100% condensing, IP67 (totally protected against dust and against immersion in water up to 1m)
Safety
US/CAN (cTUVus) UL 60950-1, UL 60950-22, CAN/CSA C22.2 60950-1, CAN/CSA C22.2 60950-22
CE/IEC EN/IEC 60950-1, EN/IEC 60950-22
EMC
FCC 47 CFR, Part15, Subpart B, Class B
ETSI EN 301 489-1, EN 301 489-4, EN 301 489-17
CAN/CSA-CEI/IEC AS/NZS, CISPR 32 2015 Class B
Integrated Antenna
Gain 22 dBi
VSWR 2.0 : 1
3 dB Azimuth Beamwidth 10 Deg. (typ)
Polarization Dual Linear (Vertical and Horizontal)
Sidelobes Level -12 dB(typ)
Cross Polarization -25dB (typ)
F/B Ratio -25 dB
Port To Port Isolation 30 dB (typ)
Lightning Protection DC Grounded
