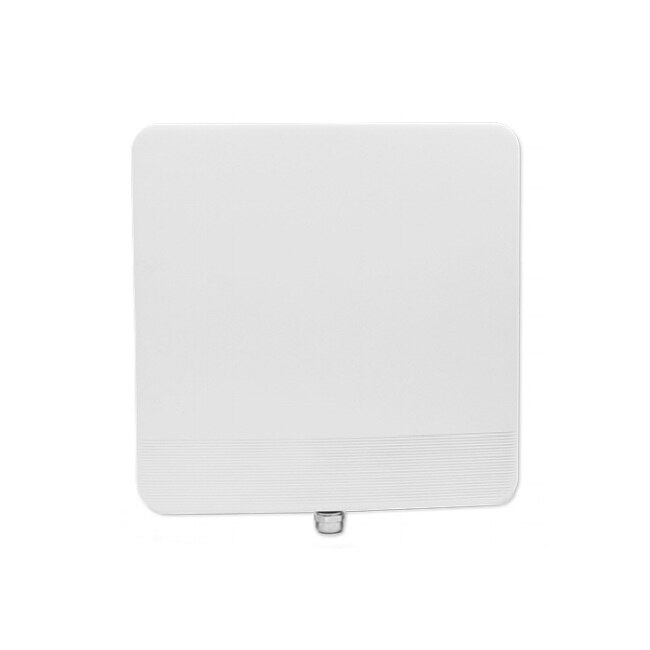

Radwin 5000 HPMP SU-PRO 100 ODU Subscriber Unit Radio with 21 dBi Integrated Antenna, 5.4GHz IC

(0)No Reviews yet
  • SKU: RW-5H00-1P54
  • Manufacturer:
  • Data Sheet: Download

Out of Stock

 Open chat or call us for stock status

Product Information

RADWIN RW-5H00-1P54

5000 HPMP SU-PRO 100 ODU Subscriber Unit Radio with 21 dBi Integrated Antenna, RW5000/SU-Pro/5H00/F54/IC/INT, 5GHz 256QAM up to 100Mbps net aggregate throughput, factory default 5.4GHz IC

RW-5H00-1P58 is SU PRO, Integrated subscriber unit that delivers up to 100 Mbps net aggregate throughput and supports SLA (CIR) or Best-Effort service level.

SU PRO supports 5.4 to 5.8 GHz and complies with IC & FCC/IC regulations.

The unit includes an integrated 22dBi antenna.


Features:

  • Up to 100 Mbps net aggregated throughput, upgradable to 250Mbps
  • Long range - Up to 40 km / 25 miles
  • Guaranteed Service Level Agreement based on CIR or Best Effort Service level
  • 22dBi antenna gain
  • Short and constant latency
  • Advanced MIMO, OFDM and Antenna Diversity
  • Robust and reliable operation in harsh environmental conditions including obstructed line-of-sight scenarios
  • IP-67
  • Simplified installation using a Smartphone app.

Specifications

Specifications KPPA-2GHZDP65S-WOC1

Configuration
Architecture Outdoor Unit with an integrated antenna
PoE to ODU Interface Outdoor CAT-5e; Maximum cable length: 100m for 10/100BaseT and 75m for 1000BaseT
Radio
Max Capacity 100 Mbps net aggregate throughput; Upgradable to 250 Mbps with license key
Range Up to 40 km / 25 miles
Channel BandwidthConfigurable: 20, 40, 80 MHz (for the default band); Dynamic Channel BW selection (20/40/80 MHz)
Modulation MIMO-OFDM (BPSK/QPSK/16QAM/64QAM/256QAM)
Adaptive Modulation & Coding Supported
DFS Supported (IC)
Diversity Supported
Max Tx Power 21 dBm
Duplex Technology TDD
Error Correction FEC k = 1/2, 2/3, 3/4, 5/6
Encryption AES 128
Support Indoor units RADWIN PoE device (included in the package); pinout: (+) pins 4/5, (-) pins 7/8
Uplink / Downlink Allocation Configurable: Symmetric or Asymmetric
Layer 2 HUB Mode
QoS Packet classification to 4 priority queues according to 802.1P or Diffserv
VLAN Support 802.1Q, QinQ, 4094 VLANs
ODU Management IPv4/IPv6 dual-stack; SNMP v1, SNMPv3; HTTP/HTTPS using web browser
Mechanical
ODU Dimensions 32.5(w) x 32.5(h) x 6.4(d) cm
ODU Weight 2 kg / 4.41 lbs
Power
Power Feeding Power provided over ODU-IDU cable
Power Consumption <9W
Environmental
Operating Temperatures -35°C to 60°C / -31°F to 140°F
Humidity 100% condensing, IP67 (totally protected against dust and against immersion in water up to 1m)
Safety
US/CAN (cTUVus) UL 60950-1, UL 60950-22, CAN/CSA C22.2 60950-1, CAN/CSA C22.2 60950-22
CE/IEC EN/IEC 60950-1, EN/IEC 60950-22
EMC
FCC 47 CFR, Part15, Subpart B, Class B
ETSI EN 301 489-1, EN 301 489-4, EN 301 489-17
CAN/CSA-CEI/IEC AS/NZS, CISPR 32 2015 Class B
Integrated Antenna
Gain 21 dBi
VSWR 2.0 : 1
3 dB Azimuth Beamwidth 10 Deg. (typ)
Polarization Dual Linear (Vertical and Horizontal)
Sidelobes Level -12 dB(typ)
Cross Polarization -25dB (typ)
F/B Ratio -25 dB
Port To Port Isolation 30 dB (typ)
Lightning Protection DC Grounded
