Rohn RSL Tower 70ft - Section 1-7

$‎3,286.95 $‎3,867.00
$‎3,286.95 $‎3,867.00

Specifications Rohn RSL70L17

BrandROHN
Height70'
Section size, top21"
Section size, bottom42"
Base footing8'6" x 8'6" x 4'4", (11.6 cu. yds.)

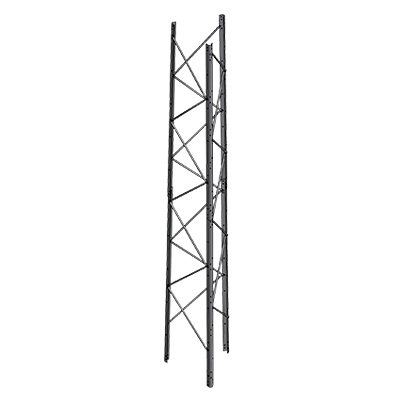

Rohn RSL70L17 RSL Tower 70ft - Section 1 - 7

The Rohn RSL70L17 is a RSL 70' Light Weight Self-Support Tubular Brace Tower Kit, U-Shaped High Strength Angle Legs, Hot-Dipped Galvanized, is designed for use in Wireless Broadband, public Safety & Security applications .The RSL is shipped knocked down to reduce shipping cost and time.

CLASS I Structure / Exposure Cat B / Topo Cat 1

CLASS II Structure / Exposure Cat C / Topo Cat 1 / Wind -w- Ice 40 MPH @ 1" / Earthquake Ss 2.50


This Kit Includes:

  • Sections- 1-7
  • Top Kit- RSLH1A
  • Bolt Kits- 7
  • RSB07 Short Base ( Optional )
  • RAL07 Anchor Base Kit ( Optional)
  • ACWS
  • ASSEMBLY PACKAGE

Features:

  • 70’ Height
  • Handles up to 40 sq. ft.
  • Constructed of hot-dip galvanized steel
  • Available in heights from 20’ up to 100’
  • U-shaped legs allows for simple lap splice connection
  • Available in standard and heavy models
  • Pre-punched holes for attachment of safety climb systems, mounting kits, etc.
  • Braces for each section are the same length, while bolt lengths are standard throughout the tower
  • Tower material is hot-dip galvanized
  • Assembly drawings provided with tower
  • Top closing angle standard with each tower package
