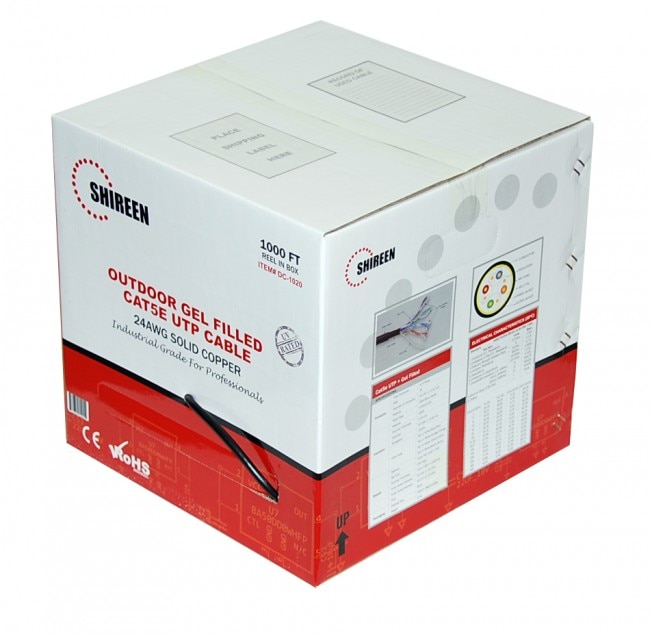

Shireen 1000Ft, Outdoor Gel Filled Cat5E
- SKU: DC-1020
$210.00 $236.00
- Manufacturer: Shireen
- Data Sheet: Download
Product Information
Shireen DC-1020 Cat5e Outdoor Cables
Shireen’s DC-1020 high quality outdoor gel filled UTP CAT5e cable. Features dual jacketed, 4 unshielded twisted pairs of 24AWG wire with LDPE + Gel. Excellent for use in any outdoor/inside conduit burial for networking, data transfer (10/100/1000 Mbps)
- Outer Jacket:LDPE, PVC
- Ethernet Cable Type:Cat5e
- Ethernet Cable Application:Burial, Outdoor
- Ethernet Cable Features:Gel Filled, UTP
- Dimensions (WxLxH): 13 x 13 x 13
- Weight: 40 Lb
Specifications
Specifications DC-1020
Conductor
| Pairs | 4 |
| Total Conductor | 8 |
| AWG | 24 |
| Dia. of Conductor | Φ 0.50±0.01mm |
| Material | Solid Bare Copper |
| Elongation | ≥15% |
Insulation
| Material | HDPE |
| Nom. Thickness | 0.24mm |
| Dia. | Φ 0.95±0.05mm |
| Elongation | ≥300% |
| Length of Lay | < 30 mm |
Sheath
| Material | Inner: PVC Outer: LDPE |
| Rip Cord | 200D×3 |
| Nom. Thickness | Inner 0.50±0.05mm |
| O.D. | Inner: Φ 5.20±0.2mm |
| Temperature rating | -40C to +85C |
