Shireen 1000ft, outdoor shielded & gel filled
- SKU: DC-1041
- Manufacturer: Shireen
- Data Sheet: Download
Product Information

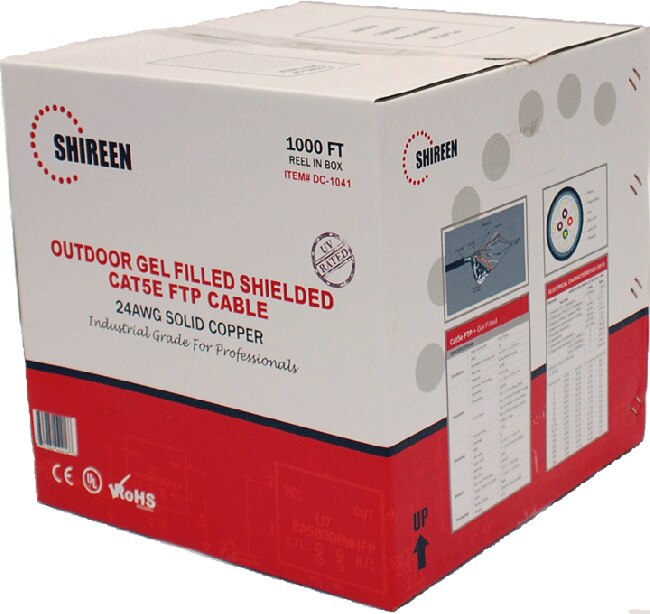

Shireen DC-1041 1000ft, outdoor shielded & gel filled
Shireen’s DC-1041 high quality outdoor shielded FTP (Foil Twisted Pair) CAT5e cable now features 4 twisted pairs of 24AWG wire with LDPE + Gel. Excellent or use in any outdoor/direct burial application of networking, data transfer and phone lines.
- Outer Jacket:LDPE
- Ethernet Cable Type:Cat5e
- Ethernet Cable Application:Burial, Outdoor
- Ethernet Cable Features:FTP, Gel Filled, Gel Filled Shielded, Shielded
- Dimensions (WxLxH): 13 x 13 x 13
- Weight: 34 Lb
Specifications
Specifications DC-1041
Conductor
| Pairs | 4 |
| Total Conductor | 8 |
| AWG | 24 |
| Dia. of Conductor | Φ 0.51±0.02mm |
| Material | Solid Bare Copper |
| Elongation | ≥15% |
Insulation
| Material | HDPE - Polyethylene | |
| Nom. Thickness | 0.26mm | |
| Dia. | Φ 1.00±0.05mm | |
| Elongation | ≥300% | |
| Length of Lay | < 38 mm | |
Shielding
| Vertical Wrap | A1-Mylar Tape |
| Coverage % | 100% |
| AWG | 24 |
| Drain Wire | TC - Solid Tinned Copper |
Outer Sheath
| Filling | Gel Filled |
| Material | LDPE |
| Rip Cord | 200Dx3 |
| Nom. Thickness | 0.72±0.05mm |
| O.D. | Φ 6.50±0.3mm |
