Product Information

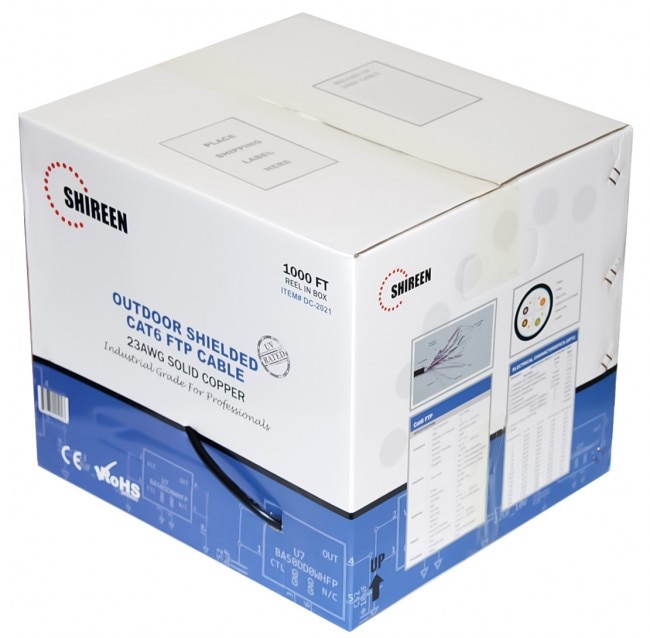

Shireen DC-2021 1000ft, Outdoor shielded Cat6
Shireen's DC-2021-1 high quality outdoor FTP (Foil Twisted Pair) CAT6 cable by the foot. It features 4 twisted pairs of 23 AWG wire with Aluminum foil shielding and drain wire. Excellent for use in all outdoor networking, data transfer and phone lines applications. It supports 10/100/1000Mbps.
- Outer Jacket:LDPE
- Ethernet Cable Type:Cat6e
- Ethernet Cable Application:Burial, Outdoor, Tower
- Ethernet Cable Features:(1) Mylar Aluminium Foil Shield, FTP, Shielded
- Dimensions (WxLxH): 14 x 13 x 13
- Weight: 35 Lb
Specifications
Specifications DC-2021
Conductor
| Pairs | 4 |
| Total Conductor | 8 |
| AWG | 23 |
| Dia. of Conductor | Φ 0.57±0.02mm |
| Material | Solid Bare Copper |
Insulation
| Material | HDPE |
| Dia. | Φ 1.10±0.05mm |
Paired
| Direction | Right Hand Lay |
| Length of Lay | < 38 mm |
Shelding
| Vertical wrap | A1-Mylar Tape |
| Coverage% | 100% |
| Dia. | Φ 0.40±0.02mm |
| Drain Wire | Solid Tinned Copper |
