Shireen CAT6 Shielded 4PR x 23AWG, 2C x 12AWG Power & 4C SM Fiber Optic Composite Cable
- SKU: DFP-1246-500
$705.00
- Manufacturer: Shireen
- Data Sheet: Download
Product Information

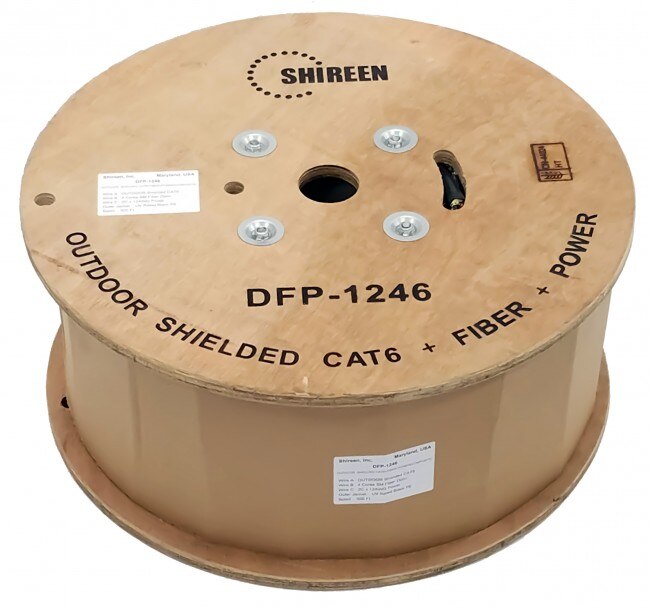

Shireen DFP-1246-500' 500ft (2)-12AWG/(4)-SMFiber/Cat6FTP (COMPOSITE)
Data, Fiber & Power Composite Cable
Light Burial, Outdoor UV rated, Shielded Category, Single Cable Encased with easy separation of components. Colored Polarity ID, Highly Durable and painless cable management for Tower Installation
Composite Construction with 2C / 12AWG for Power, 4C / Single Mode Fiber & 1C / Shielded 23AWG Cat6 500ft spools
Specifications
Specifications DFP-1246-500'
Power | |
Max. DCR | 5.6 Ω/km |
Capacitance of Con. to Con | 148 pF/m |
Operation Voltage | 300 V RMS |
SM. Fiber | |
Bandwidth Attenuation (850 nm) | >750 MHz/Km |
Fiber Optical Index (1310 nm) | <0.40 dB/km |
Cable Optical Index (1550 nm) | <0.30 dB/km |
Numerical Aperture | 0.14 |
Effective Group Index of Refraction (1310 nm) | 1.4676 |
Effective Group Index or Refraction (1440 nm) | 1.4682 |
Power Wire - 2C x (12 AWG) | |
Center Conductor | Bare Copper Stranded Wire |
Conductor Diameter | 2.36 mm |
Insulation | Solid Polyethylene |
Weight | Black |
Centricity | >90% |
Adhesion | 20 to 100 N |
4C Singlemode Tight Buffered Optical Fiber | |
Fiber Count | 4 |
Fiber Diameter | 0.245 um |
Buffering Diameter | 0.6 um |
Color | Blue/Orange/Green/Brown |
Tensile Strength Element | Kevlar |
Jacket | PVC |
Thickness | 0.6 mm |
Outer Diameter | 3.80 mm |
Jacket Color | Yellow |
