Shireen 4 Strand Fiber + DC Copper, 1000ft

(0)No Reviews yet
  • SKU: FP-1404
  • Manufacturer: Shireen
  • Data Sheet: Download

Out of Stock

Direct Ship Item

Product Information

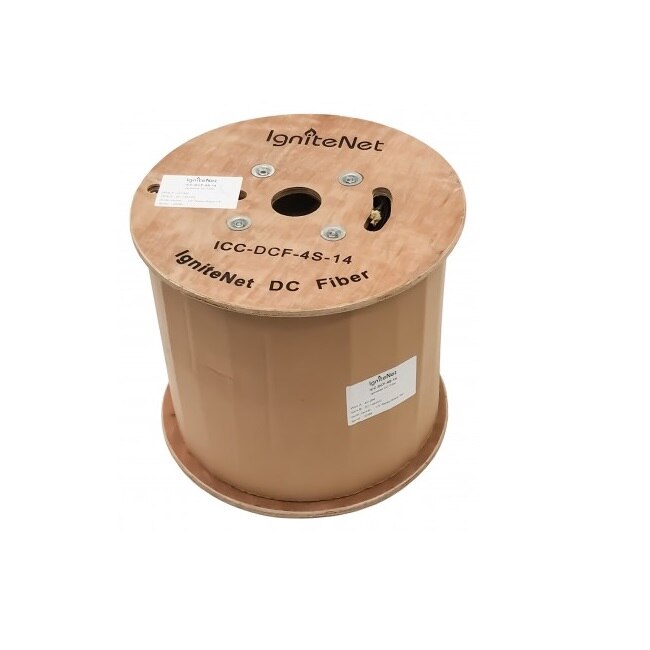

Shireen FP-1404 1000ft (2)-14AWG/(4)-SMFiber (TRIMESE)

Power is not readily available in the precise locations where device placement is needed to improve Wi-Fi coverage for wireless networks, such as on the sides of buildings, lamp posts, etc. In these situations, it is typically needed to run power to the desired location prior to installing the devices. Also, any concern about who pays for that power and how it is monitored requires wireless network operators to negotiate with local utility companies and building owners. All of this adds time and money to the installation of network access devices.

IgniteNet has partnered with Shireen to provide a solution that combines power and optical communications into one system, eliminating the hassles and extra expense associated with powering typical low-power network devices.

Specifications

Specifications FP-1404

Fiber - x4 OS2 Single Mode

Fiber Diameter8.2 um
Maximum Attenuation< 0.32 dB/km
Zero Dispersion Wavelength1304 < λo < 1324
Effective Group Index of Refraction1310 nm

Power - x2 (14 AWG)

Center ConductorBare Copper Stranded Wire
Conductor Diameter1.63 mm
Max DCR9.51 Ω/km
Capacitance154 pF/m
Operation Voltage300 V ms

Mechanical Specifications

JacketPE - UV Resistant
Thickness0.6 mm
Diameter4.0 mm
Jacket ColorBlack
