Shireen 12AWG 2 Core Shielded Outdoor Power Cable, 500ft Spool

(0)No Reviews yet
  • SKU: PC-1202-500
US$‎595.00
  • Manufacturer: Shireen
  • Data Sheet: Download
Direct Ship Item

Product Information

Shireen PC-1202-500

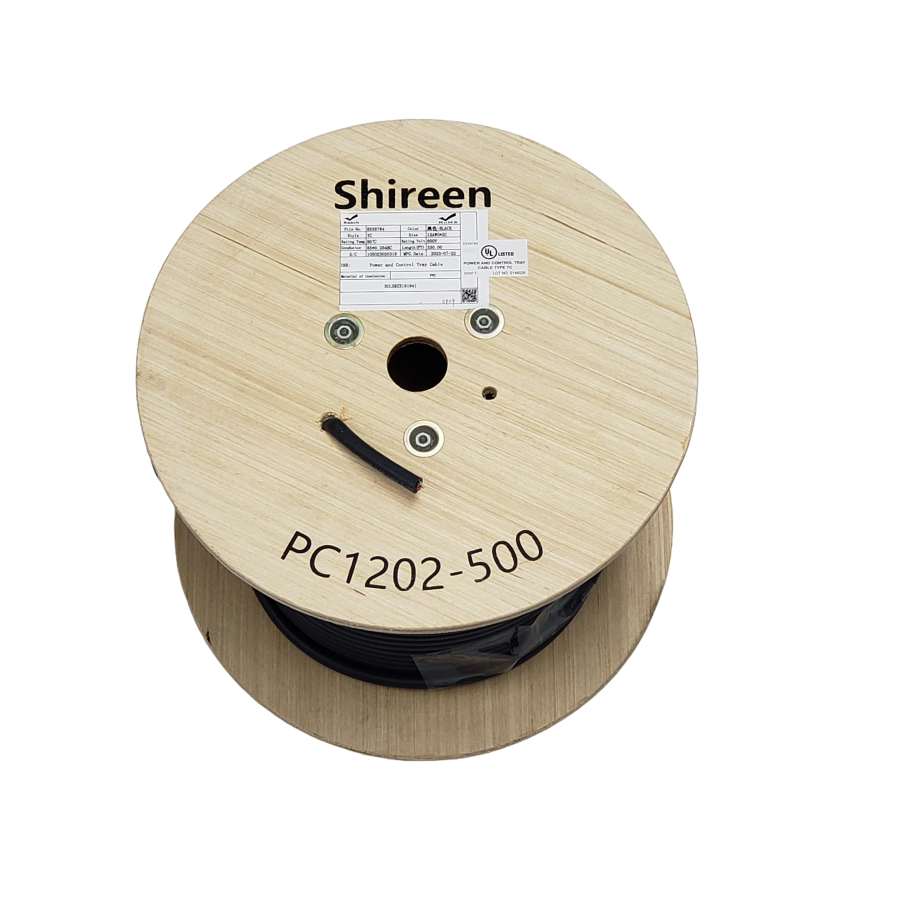

12AWG 2 Core Shielded Outdoor Power Cable, 500ft Spool

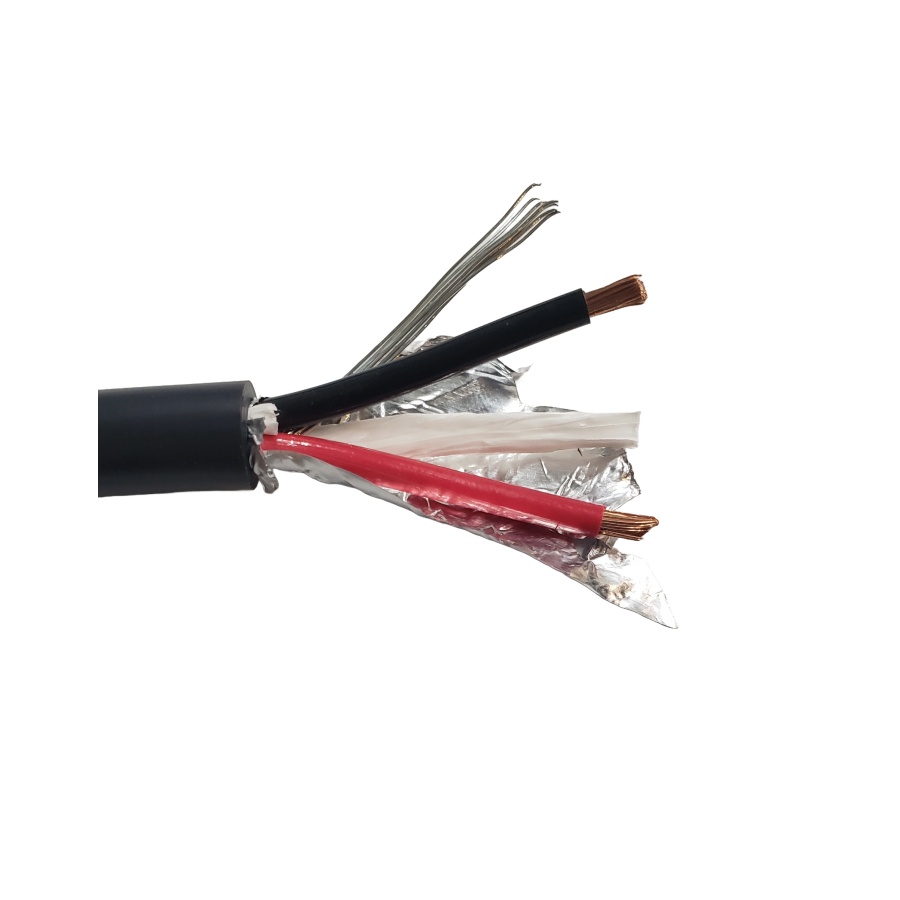

Power cable with Two cores of Insulated 12AWG stranded bare copper wires and 16AWG drain/ground wire, Shielded with a THWN-2, UV-rated jacket that is RoHS and FT2 tested. For all Indoor, Outdoor, and Direct Burial usage.

Applications: Indoor / Outdoor VNTC, THWN-2, 600V, AC/DC, EMI Shielded UL listed. Direct Burial,

Specifications

Specifications PC-1202-500

Dimension 14"x14"x13"
Weight 54 lbs.
Total number of conductors2
Conductor Size12AWG / Stranded
Conductor MaterialBare Copper
Conductor Construction65x0.254± 0.008 mm Stranded
Insulation MaterialPVC
Insulation O.D.3.12±0.10 mm
Conductor Color CodeBlack, Red
Inner jacket3.40 ± 0.10 mm
Color CodeTransparent
Filler materPolypropylene filler fibers
Drain wire16 AWG TCC
Sheild wrappingAL-Mylar
Outer Diameter10.30 ±0.20 mm nom.
JacketUV Rated PVC, Black
Performance Testing
Rated Temperature-40 °C ~ +95 °C
Voltage600 V
Max. DC Resistance5.43 Ω/km Max @ 20°C
Min. Bending Radius100mm
Certifications
Flame/Burn Test RatingVW-1 / FT2
Direct Burial and Sunlight ResistantYES
UL Certified1277, 1685, 2885
ICEA S-73-532(Where applicable)Yes
PrintingShireen, Inc. PC-1202 E535784 (UL)-YEF TC 12AWG 2C UV RES DIR BUR FT2 ROHS THWN-2 600V 90℃ DRY/WET xxxft YY/WW
