Siklu E-band 70/80GHz 1ft heated antenna radome with controller
- SKU: EH-ANT-1ft-HR
- Manufacturer: Siklu
- Data Sheet: Download
Product Information

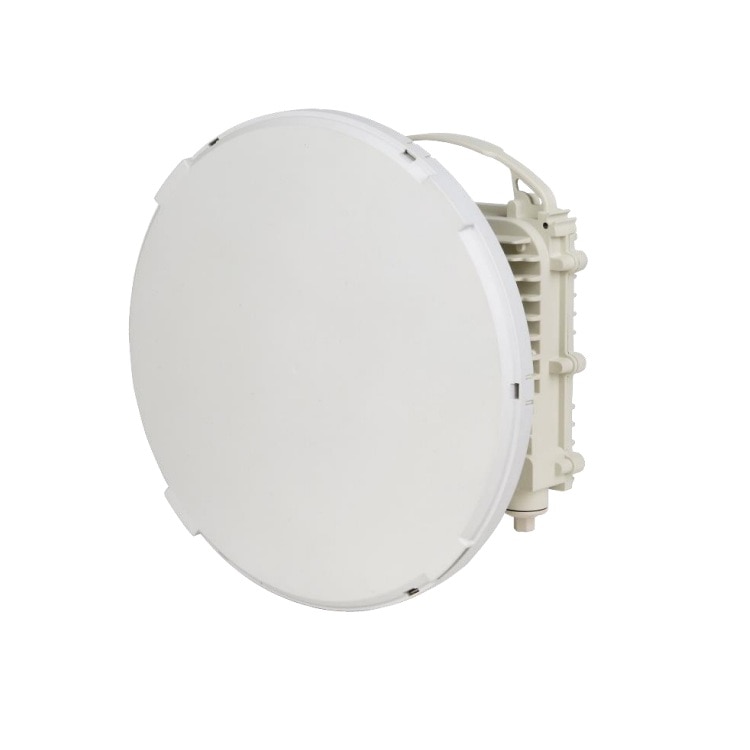

Siklu EH-ANT-1ft-HR
EtherHaul E-Band 70/80 GHz 1ft Heated Antenna Radome and Heat Controller
Siklu EtherHaul E-Band 70/80 GHz 1ft Heated Antenna Radome and Heat Controller. Also, used for existing E-band 70/80Hz 1ft antennas, it is possible to add the heating function to an existing 1ft antenna (EH-ANT-1ft or EH-ANT1ft-B, or antenna included as part of an ODU such as EH-1200TX-ODU-1ft or EH-1200FX-ODU-H1ft). Part number EH-ANT-1ft-HR includes the heating radome and the controller.
Product Includes:
- (1) Radome
- (1) Heat Controller
- (1) User Manual
Specifications
Specifications EH-ANT-1ft-HR
| DC Input Power | 48VDC, 30W |
| Distance antenna to controller | 19" (50cm) |
| Heat controller Size | 5.9x4.3x2.7” (15x11x7 cm) |
| Weight | 1.2 Lbs. (550 gr) |
| Radome | Plastic |
