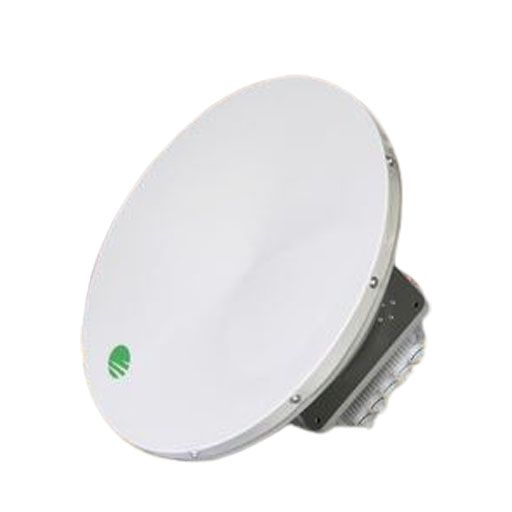

Siklu EtherHaul 2ft Antenna 70/80GHz & 5GHz (FCC/ETSI) and Mounting Kit with X Adapter
US$1,456.00
- SKU: EH-ANT-2ft-DL5
- Manufacturer: Siklu
- Data Sheet: Download
Product Information
Siklu EH-ANT-2ft-DL5
EtherHaul 2ft Antenna 70/80GHz & 5GHz (FCC/ETSI) and Mounting Kit with X Adapter
Siklu EtherHaul 2ft Dual Band Antenna (E-band & 5GHz) 70/80GHz (FCC/ETSI) ODUs and Mounting Kit with X Adapter supports a variety of antennas depending on the intended application, from street level to roof top, from short to long reach.
Compatibility E-Band
- EH-1200T/TX & 1200F/FX
- EH-2200F/FX
- EH-2500F/FX
- EH-5500FD
- EH-8010FX
- EH-700T/710T/710TX - Requires EH-XADPT-SFF-7080GHz available separately.
Specifications
Specifications EH-ANT-2ft-DL5
| Compatibility 5GHz | Any connectorized 5GHz radio |
| E-Band Specifications | |
| Frequency Range | 71 – 86 GHz |
| Regulatory Compliance | ETSI: EN 302 217-4-2 V1.5.1 Class 3 FCC: 47CFR101 |
| Gain | 49dBi +/- 2dB |
| 3dB Beam | 0.5° |
| Polarization | Linear Vertical / Horizontal |
| Cross-pol. Discrimination | - |
| Front/Back Ratio | - |
| Input Power | 10 W (max) |
| Interface | Circular wave-guide E-Band |
| 5GHz Specifications | |
| Frequency Range | 5.15 – 5.9 GHz |
| Regulatory Compliance | ETSI EN 302 217 Range 1 Class 2 |
| Gain | 26dBi +/- 2dB |
| 3dB Beam | 6.5° |
| Polarization | Dual polarized (V & H) |
| Cross-pol. Discrimination | 30dB |
| Front/Back Ratio | ≥ 47dB |
| Input Power | 10 W (max) |
| Interface | 2x 50cm cables, with RP-SMA male connectors |
| Mechanical | |
| Weight | 10.8Kg (23.8 lbs.) |
| Radome | ABS |
| Wind Load Forces | Survival (220Km/h) |
| Front | Fa = 1055 N (107.6 kgf) |
| Side | Fs = 679 N (69.2 kgf) |
| Vertical | Weight 27 Kg (Zcg = 99mm with 1” ice) |
