Siklu MultiHaul PTMP mmWave 60GHz 100Mbps to 1Gbps Compact Terminal Unit cTU (VEHP213)
US$483.00
- SKU: MH-T201-CNN-PoE-MWB
- Manufacturer: Siklu
- Data Sheet: Download
Product Information
Siklu MH-T201-CNN-PoE-MWB
MultiHaul PTMP mmWave 60GHz 100Mbps to 1Gbps Compact Terminal Unit cTU (VEHP213)

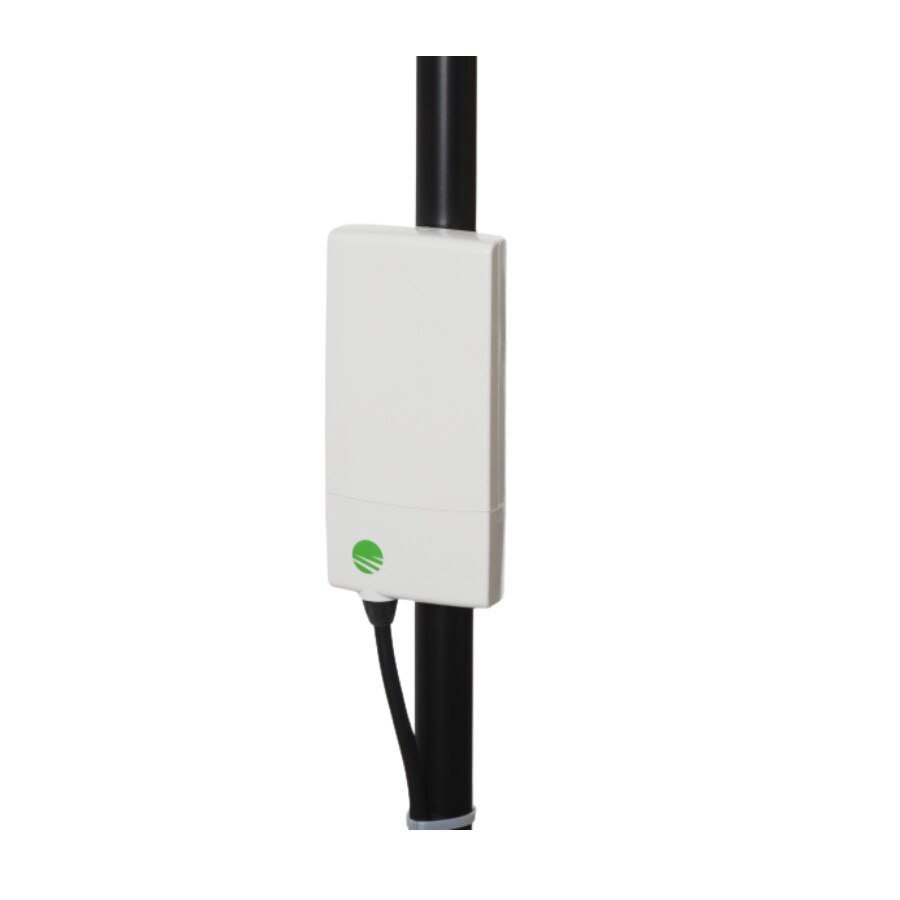

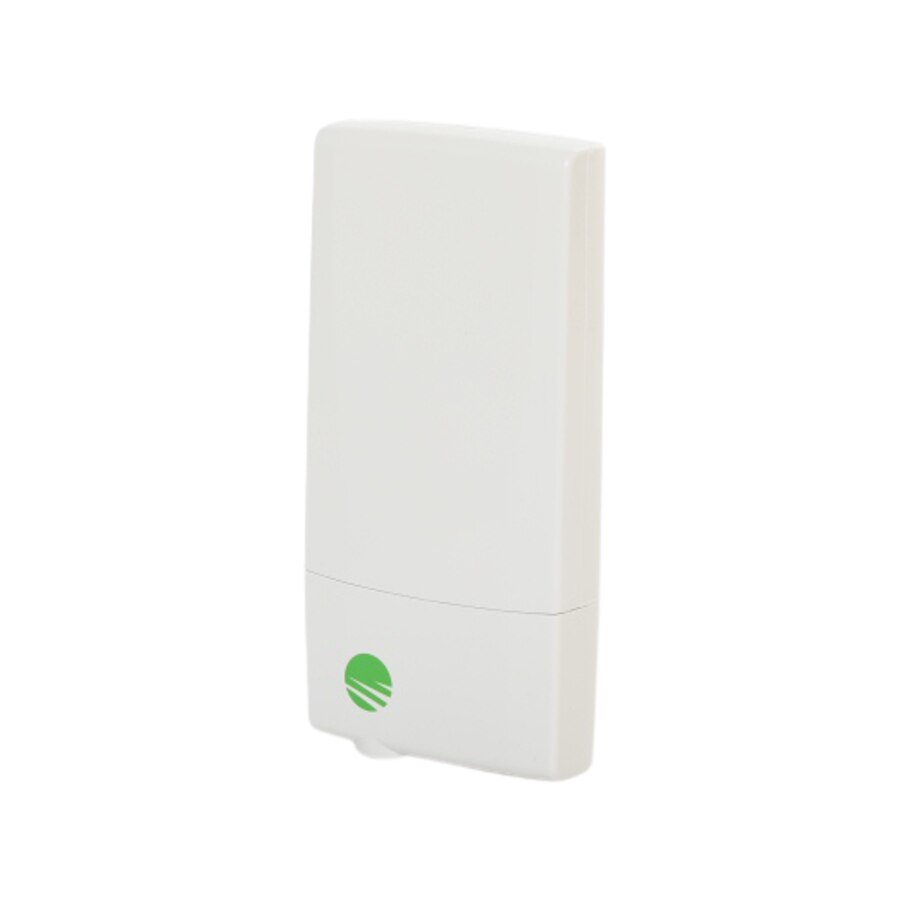

Siklu MH-T201-CNN-PoE-MWB is a Multihaul Compact Terminal Unit, the customer premise side of the system has been reduced over 85% in total volume when compared to the standard TU with no loss in performance, features, range or throughput. a size only 6.5" x 3.1" x 1" and a selection of colors will blend the cTU into existing surroundings, making it even easier to deploy.
Features:
- Smart City
- Business Services
- Security/ SafeCity Networks
- Gigabit to the Home
- Wi-Fi Backhaul
Specifications
Specifications MH-T201-CNN-PoE-MWB
| Topologies | Point to Multi-Point / Point to Point |
| Built-In Antenna | Horizontal Scanning: 90° / Vertical Beamwidth: 20° |
| Frequency and Duplexing | 57-64GHz |
| Channels and Width | 2 non-overlapping channels, 2160MHz wide |
| Modulation and Coding | 9 levels of adaptive coding and modulation |
| Line Rate | (PHY) Line rate up to 2300Mbps |
| Aggregate Throughput | Max capacity 1000Mbps, license dependant |
| System Gain (Link Budget) | 128.5dB (including antenna gain) |
| Typical Reach | 900 - 1300ft (280-400m) |
| Interfaces | Up to 1x RJ-45 100/1000Base-T |
| Ethernet Features | IEEE 802.1d transparent bridging, VLAN and VLAN stacking, Jumbo Frames, LLDP |
| Security | AES 128-bits |
| Management and Provisioning | TU auto-provisioning from BU, no IP address required on TU; In-band, Out-of-band management Web GUI (one-click configuration of local and remote units) & Embedded CLI SNMPv2/3, TACACS+, Radius |
| Conformance | |
| Radio | US FCC 47 CFP Part 15.255; EN 302 567; Japan Radio Equipment Certification Ordinance 2-1-19-4-2. |
| EMC | FCC 47CFR.part 15, EN 301 489 |
| Safety | UL 60950 |
| Power Supply | PoE, 10W (IEEE802.3af) |
| Environmental | |
| Operating Temperature | -212deg;F - 131deg;F (-30deg;C - 55deg;C); |
| Ingress Protection Rating | IP65 |
| Dimensions | 6.5 x 3.1 x 1in / 165 x 80 x 25mm |
| Weight | 1/2lb. (250gm), including the Anymount mounting kit. |
