Simply45 S45-B003

Strain Reliefs for all S45 Brand STP External Ground. -100pcs/Bag

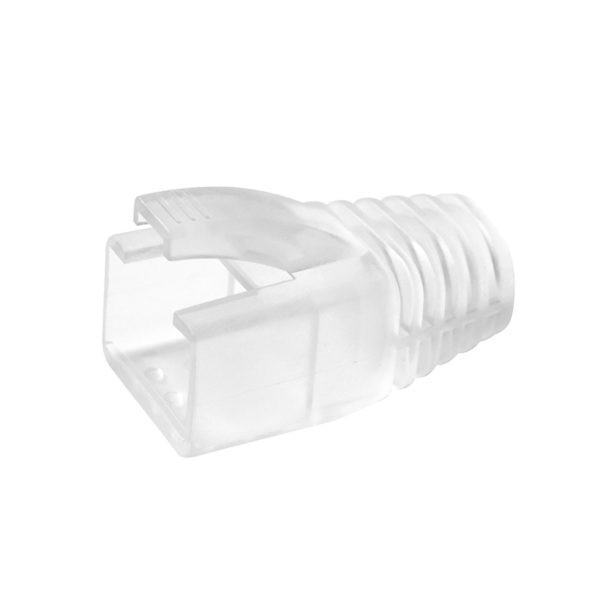

The Simply45® S45-B003 is an 8.5mm (0.33”) snagless strain relief for use with larger diameter shielded LAN cables. The S45-B003 is recommended for all Simply45® brand shielded with external ground RJ45 modular plugs. These 8.5mm strain reliefs protect the RJ45 modular plug and extend the useful life of the termination. Simply45® recommends that strain reliefs or boots should be used with all RJ45 terminations.

Simply45® S45-B003 – 8.5mm (0.33”) Snagless Strain Reliefs Features:

For Large Diameter LAN Cables. The Simply45® S45-B003 is designed to work with most large diameter LAN cables. It can work with cable diameters up to 8.5mm (0.33”). We recommend this strain relief/boot for all Shielded with External Ground RJ45 modular plugs. You can also use these strain reliefs with other unshielded large-diameter LAN cables such as Cat6 Shielded and Cat6 Shielded Direct Burial.

Prolongs Life of the Termination. The S45-B003 takes the strain off the terminated plug. When you do not use a strain relief, any contact with the plug or cable puts strain directly on the terminated plug. Over time this could cause one or more of the RJ45 pins to become loose. If a pin becomes loose it will create electrical resistance. Resistance creates heat. This could then cause performance problems or damage to the device socket.

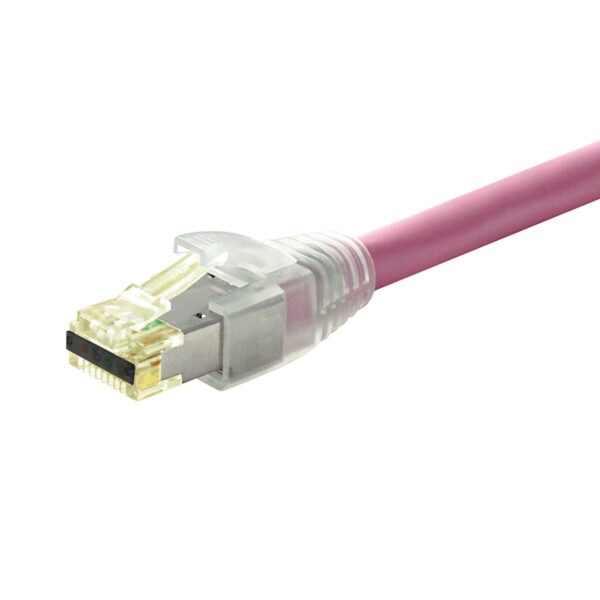

Fits Over the Terminated RJ45 Modular Plug. The S45-B003 is designed to fit over Simply45® shielded with external ground RJ45 modular plugs.

Maintains Correct Bend Radius of the Termination. The Simply45® S45-B003 Strain Reliefs protect the terminated RJ45 from damage during the life of the link or channel. Maintaining industry standards bend radius is important for maximizing the link/channel performance.

Professional Finish. In addition to protecting the termination and extending the operating life of the link/channel, the S45-B003 strain reliefs also provide a professional finish to your terminated RJ45.

Trimmable. The S45-B003 strain reliefs are trimmable so that you can adjust the bend radius if necessary, to work in very tight installations.

Clear Color. The S45-B003 strain reliefs come in a clear color so that it easily works with all cable jacket colors.

Snagless Design. The S45-B003 strain reliefs are a snagless design. This prevents broken latch tabs on the RJ45 modular plugs.

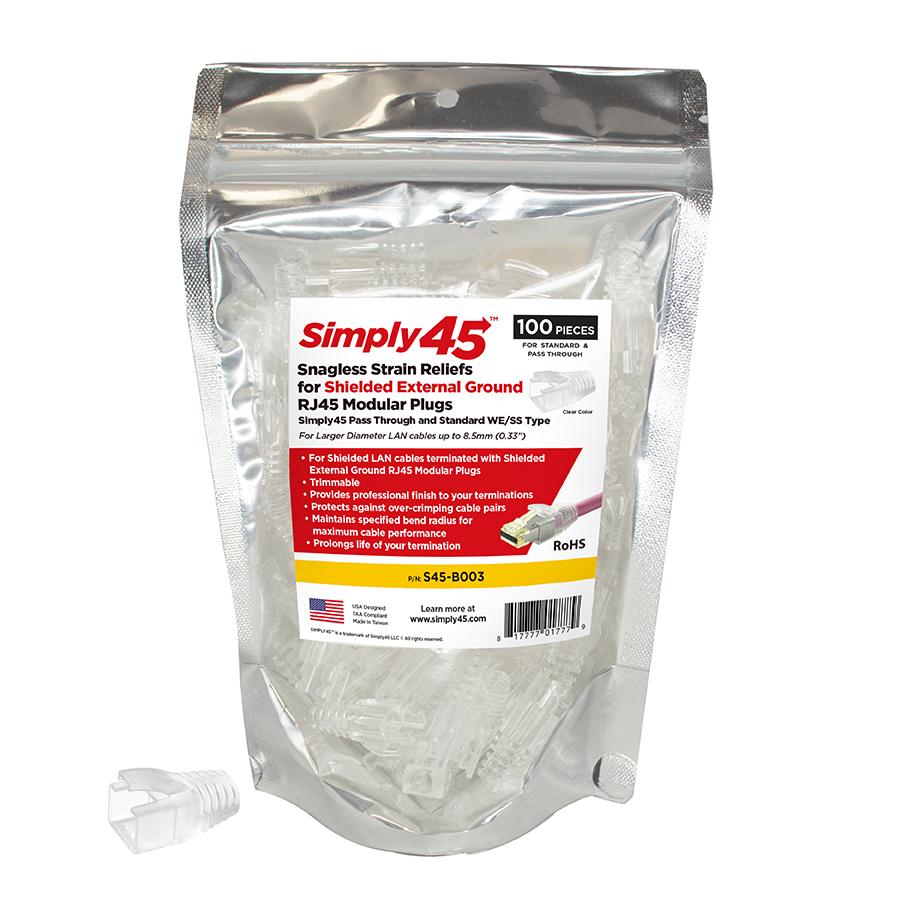

Wide Mouth Resealable Bag for Easy Hand Access. No need to spill RJ45 mod plugs out of the bag just to reach them. The S45-B003 strain reliefs bag packaging stands up and can remain open so that you can easily reach in and remove the strain reliefs.

Specifications

Specifications S45-B003

Weight0.35 lbs
Dimensions (L x W x H)7.1 x 5.9 x .9 in
TypeStrain Relief
Plug MaterialPolycarbonate
