  • 2.4Ghz/5Ghz Dual Band OMNI Antenna 6dBi

2.4Ghz/5Ghz Dual Band OMNI Antenna 6dBi

  • SKU: TOF-2458-6V
  • Manufacturer: MikroTik
  • Availability: 273 In Stock    (updated live)
    273 In stock at College Station
US$‎12.00

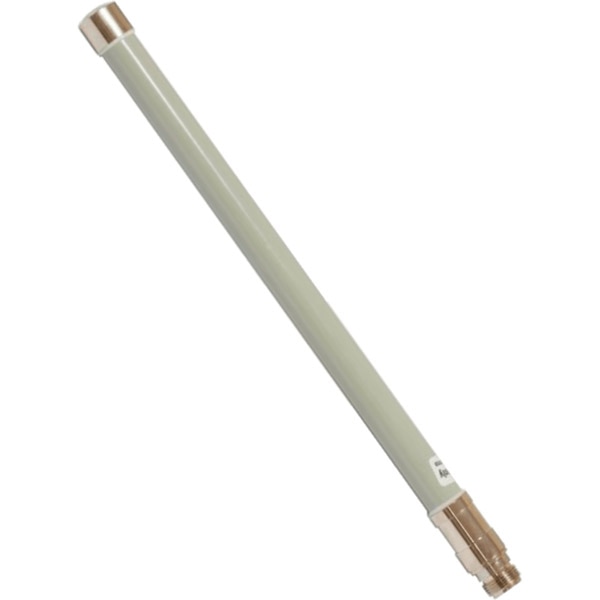

2.4Ghz/5Ghz Dual Band OMNI Antenna 6dBi for N FEMALE, Grey color, PVC housing, 285mm length



The TOF-2458-6V is a high gain, dual band omni directional wifi antenna for indoor or outdoor installation operating at 2.4GHz and 5 GHz frequency band.  It works with many other routers such as Mikrotik Groove 52 and GrooveA 52 ac. It provides a gain of 5dBi at 2400-2483MHz and 7dBi at 5150-5850MHz, which is ideally suited for outdoor point to multi-point wireless distribution applications.

The antenna features a waterproof design and durable build that allow it to withstand the extreme weather.  The antenna cover is made of corrosion-resistant and UV resistant PVC material that enables it to withstand harsh outdoor conditions.  This antenna is light-weight but strong enough to withstand wind speeds up to 200km/hour.

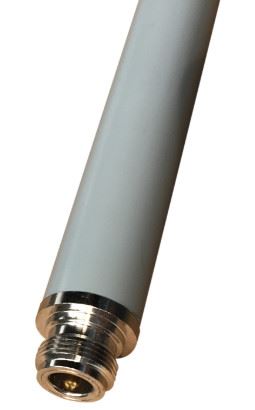

A typical N-Female connector allows you to attach it to your wireless access points directly.



Applications:

● Compliant with IEEE 802.11a/b/g/n/ac wireless standard

● RFID/IOT

● Public hot spots

● Airports/School/Hospital WiFi Coverage

● Point to multi-point

● CPE/Access point


Features:

● High gain dual band wifi omni antenna

● IP67 rated after mounted for outdoor use

● N-Female connector for terminal mounting

● Full band 2.4GHz and 5GHz coverage

Electrical Specifications:


Frequency Range-MHz

2400-2483

5150-5850

Gain-dBi

5±0.5

7±0.5

VSWR

≤1.6

≤2

Polarization

Vertical

Horizontal Beamwidth-°

360

Vertical Beamwidth-°

26±10

Max power-W

100

Nominal Impedance-Ω

50

Lightning protection

DC Ground


Mechanical Specifications:


Connector

N-Female

Dimension-mm

Φ20×283

Weight-kg

0.3

Radome Material

Grey PVC

Operating temperature-℃

-40~+65

Rated Wind Velocity-m/s

60
