Tycon Power 18-36V DC In, Qty 2 802.3af/at 56V DC 21W Out DC to DC Converter and POE Inserter
- SKU: TP-DCDC-2448Dx2-HP
- Manufacturer: Tycon Systems
- Data Sheet: Download
Product Information

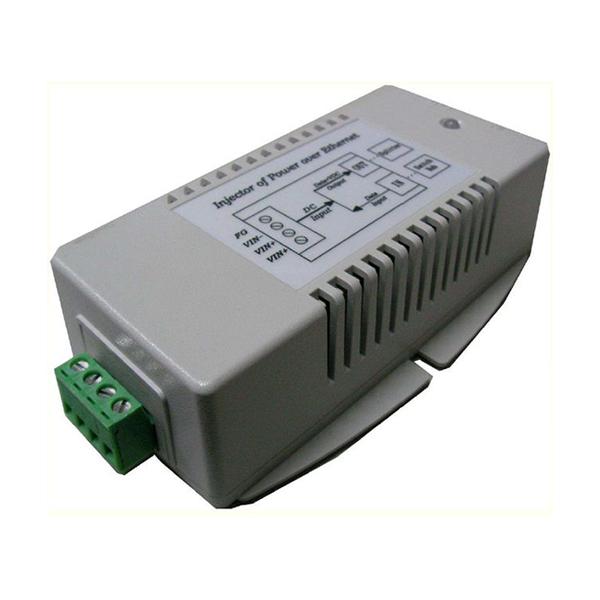

Tycon Power TP-DCDC-2448Dx2-HP
High Power Dual Output POE Injectors
The TP-DCDC-xx48DX2-HP and TP-POE-HP-48DX2 are unique high power PoE injectors with Dual 802.3af/at compatible outputs. This means that two devices can be powered from a single PoE injector. The data path between the units is handled by the injector so no PoE switch is required.
There are models that will run on 12VDC or 24VDC as well as 110/220VAC grid power. The different models have different total outputs up to 70W.
They have two inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for short circuit, overload and surges caused by ESD or lightning. The built-in surge protection protects sensitive connected devices from damage due to surges on data and PoE lines. All 8 wires are protected.
The input voltage and output voltage are isolated to avoid any grounding or negative voltage issues.
Specifications
Specifications TP-DCDC-2448Dx2-HP
Input Voltage | +/- 18VDC to 36VDC |
Input Connector | Screw Type Compression Wire Terminal (12 AWG Max) |
POE Specification | Active PoE 802.3af/at (Mode B, 2 Pair) |
Output Voltage (+/-2.5%) | 56VDC |
Data in & Data/POE Output Connector | RJ45 (Shielded) |
Output Current (max) | 0.63A X 2 |
Output Power (total) | 70W |
Self-Consumption Power | 2W |
Efficiency (min) | 80% |
