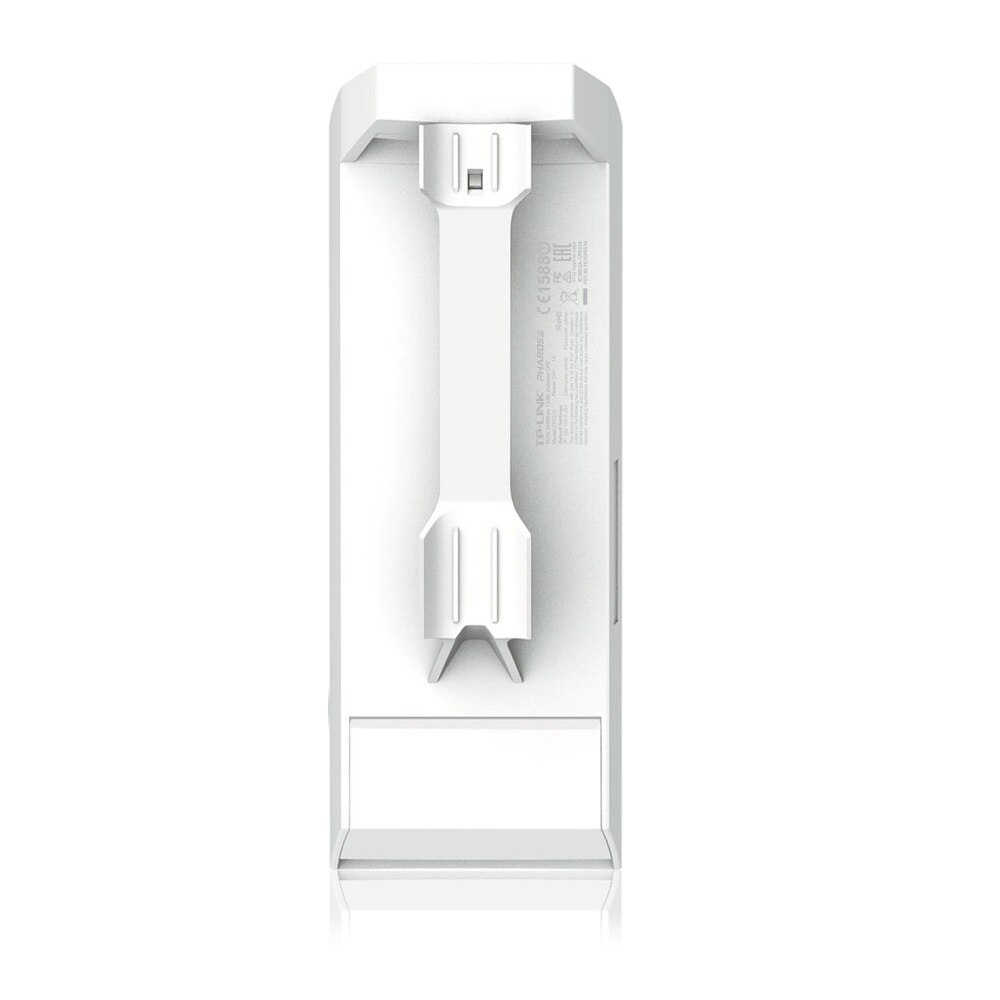

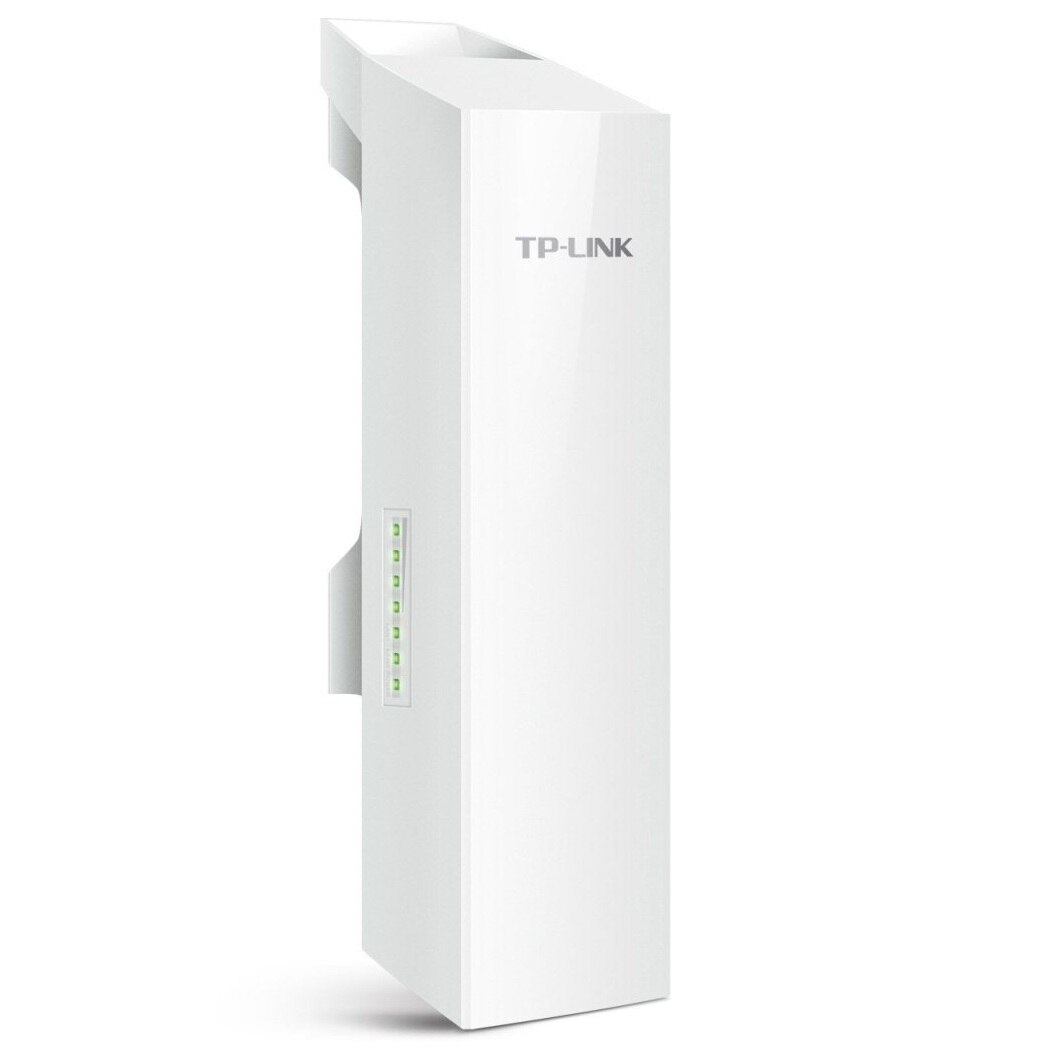

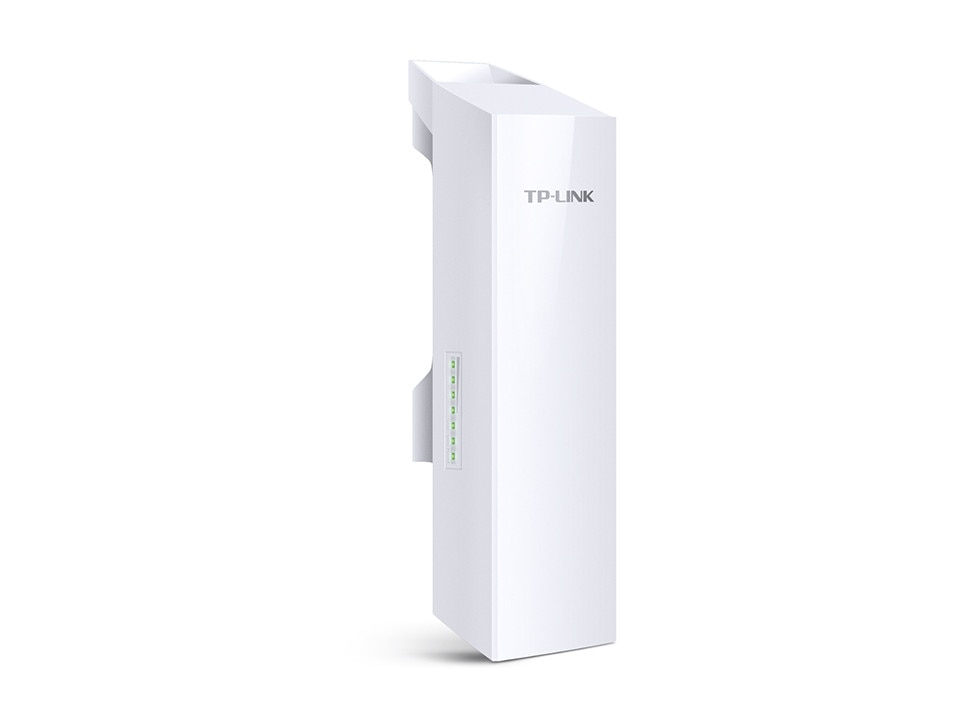

TP-LINK 5GHz 300Mbps 13dBi Outdoor CPE CPE510

(0)No Reviews yet
2 in stock
College Station
2 In stock

Product Information

5GHz 300Mbps 13dBi Outdoor CPE CPE510

5GHz 300Mbps 13dBi Outdoor CPE CPE510

TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.

Enterprise Hardware

With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).

Advanced Antenna System

  • Built-in High Gain Dual-Polarized Antenna
  • Dedicated metal reflector ensures higher gain and lower noise interference

15km+ Wireless Data Transmission

Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.

TP-LINK MAXtream TDMA Technology

As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.

Specifications

Specifications CPE510

ProcessorQualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
Memory64MB DDR2 RAM, 8MB Flash
Interface1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough) 1 Grounding Terminal 1 Reset Button
Power SupplyPassive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC
Power Consumption10.5 Watts Max
Dimensions ( W x D x H )224 x 79 x 60 mm
Antenna TypeBuilt-in 13dBi 2x2 Dual-polarized Directional Antenna Beam Width: 45° (H-Plane) / 30° (E-Plane)
Protection15KV ESD Protection 6KV Lightning Protection
EnclosureOutdoor ASA stabilized plastic material IPX5 waterproof Certification
Wireless StandardsIEEE 802.11a/n (with Pharos MAXtream disabled)
Proprietary ProtocolTDMA Mode (with Pharos MAXtream enabled)
Wireless SpeedsUp to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic)
Frequency5.15~5.85GHz
Transmission Power23dBm/200mw (Adjustable power by 1dBm)
