TP-LINK 8-Port 10/100/1000Mbps Desktop Switch

(0)No Reviews yet
  • SKU: TL-SG108
  • Manufacturer: TP-Link
  • Data Sheet:Download
  • Quick Installation Guide:Download
7 in stock
College Station
7 In stock

Product Information

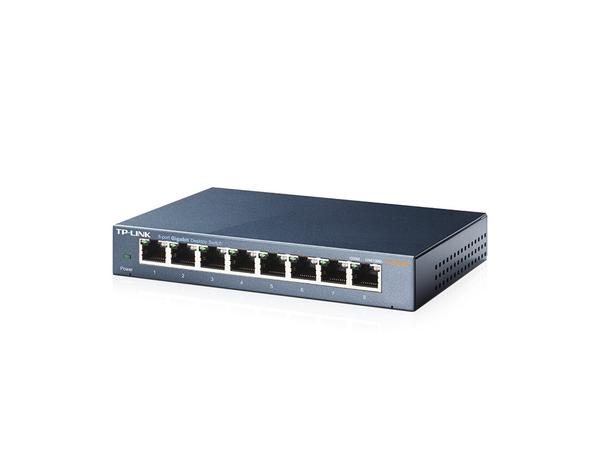

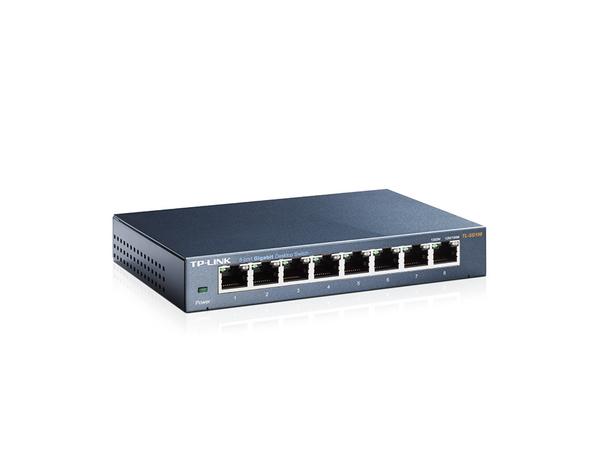

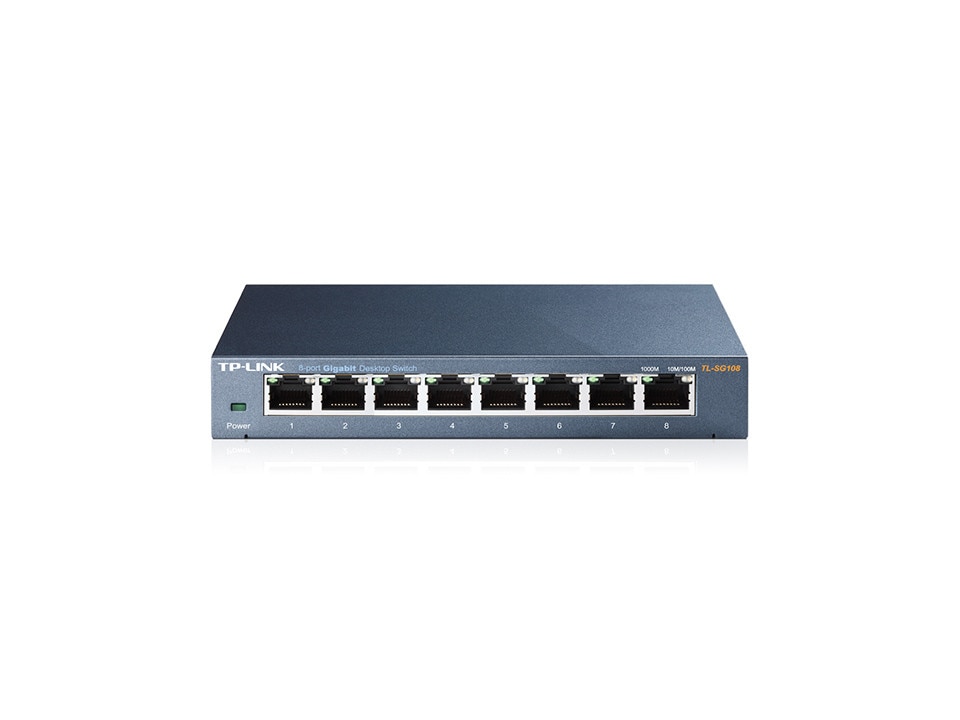

8-Port 10/100/1000Mbps Desktop Switch TL-SG108

What this product does

The TP-LINK 8 10/100/1000Mbps Desktop Switch TL-SG108 provides you an easy way to make the transition to gigabit Ethernet. Increase the speed of your network server and backbone connections, or make gigabit to the desktop a reality. Moreover, TL-SG108 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG108 can save up to 82% of the power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch

Featured with 8 10/100/1000Mbps ports, TL-SG108 greatly expands your network capacity, enabling instant large files transferring. So,power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG108 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports

When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG108 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 82% reduction in power use.

Power Budget According to Cable Length

Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

Traffic Optimization

802.1p and DSCP QoS1 enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping1 optimizes the Multicast data stream.

Easy to use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.


Features:

  • 8 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Green Ethernet technology saves the power up to 82%
  • IEEE 802.3x flow control provides reliable data transfer
  • Steel housing, desktop or wall-mounting design
  • Support 802.1p/DSCP QoS and IGMP Snooping function
  • Plug and play, no configuration needed

Specifications

Specifications TL-SG108

Standards and ProtocolsIEEE 802.3 / 802.3u / 802.3ab/ 802.3x /802.1p
Interface8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
Fan QuantityFanless
Power ConsumptionMaximum: 3.97 (220V/50Hz)
External Power SupplyExternal Power Adapter (Output: 9VDC / 0.6A)
Buffer Size1.5Mb
LED IndicatorSystem Power Link, Speed and activity indicators per port built into each RJ-45 port
Dimensions ( W x D x H )6.2 x 4.0 x 1.0 in. (158 x 101 x 25 mm)
Packet Forwarding Rate11.9Mpps
MAC Address Table4K
Packet Buffer Memory1.5Mb
CertificationCE, FCC ,RoHS
EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90%, non-condensing Storage Humidity: 5%~90% non-condensing
