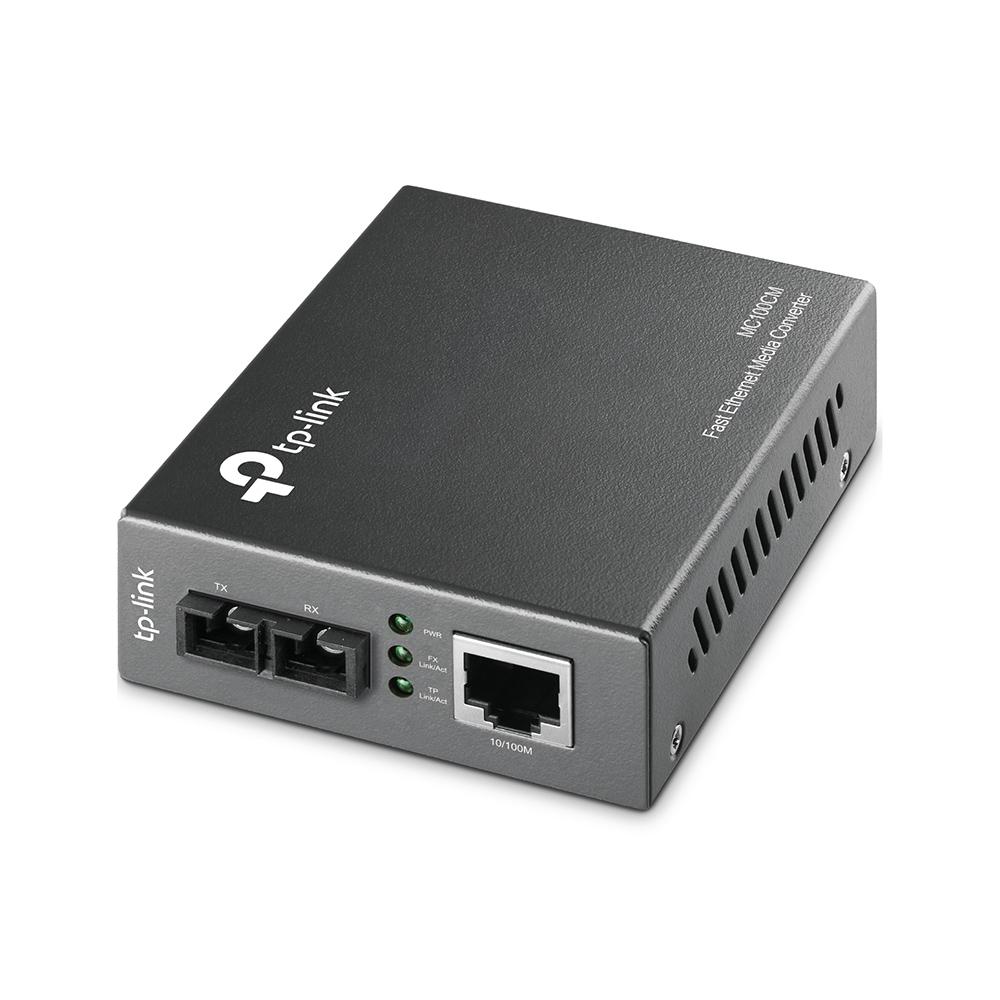

TP-LINK 10/100Mbps Multi-Mode Media Converter

  • SKU: MC100CM
  • Manufacturer: TP-Link
  • Data Sheet: Download
  • Installation Guide: Download
  • Availability: Direct Ship item Item usually ships directly from the manufacturer Email me when this product is in stock!
US$‎22.99

Specifications MC100CM

Standards and ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic FunctionAuto-negotiation of Half-Duplex / Full-Duplex transfer mode Full Duplex Flow Control (IEEE 802.3x) Half Duplex Flow Control (Backpressure) Extends fiber distance up to 2km (1.2 miles)
Ports1x 100M dual SC/UPC port 1x 10/100M RJ45 port (Auto MDI/MDIX)
Wave Length1310nm
Network Media 10BASE-TUTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-TUTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FXMulti-mode Fiber
LED IndicatorsPWR, Link/Act
Dimensions (W*D*H)3.7 × 2.9 × 1.1 in. (95 × 73 × 27 mm)
Power SupplyExternal power supply
Max Power Consumption2.4W
Safety & EmissionFCC, CE, RoHS
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

TP-LINK 10/100Mbps Multi-Mode Media Converter

What This Product Does

The MC100CM is a media converter designed to connect 100BASE-FX fiber to 100Base-TX copper and vice versa. Complies with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed using multi-mode fiber cable with an SC-Type terminal for physical connections. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode for flexibility. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1.2 miles (2km).


Features:

  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Ranges up to 2km (1.2 miles) transmission distance with multi-mode fiber
