  • TP-LINK PoE Splitter Adapter, 802.3af, up to 100 meters, 5V/9V/12V power output

TP-LINK PoE Splitter Adapter, 802.3af, up to 100 meters, 5V/9V/12V power output

  • SKU: TL-POE10R
  • Manufacturer: TP-Link
  • Data Sheet: Download
  • User Guide: Download
  • Availability: Direct Ship item Item usually ships directly from the manufacturer Email me when this product is in stock!
$‎14.99

Specifications TL-PoE10R

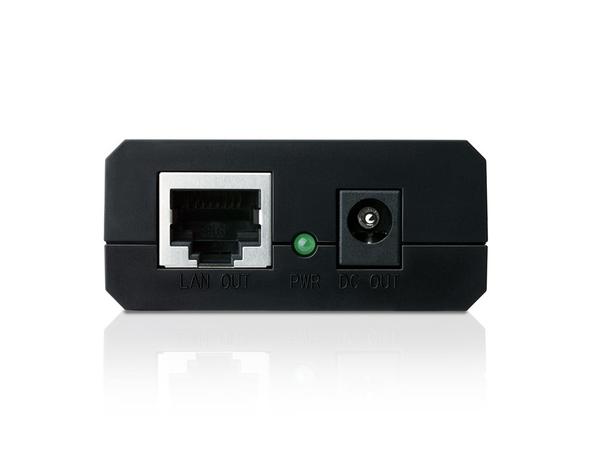

Interface2 10/100/1000Mbps RJ45 Port AUTO Negotiation/AUTO MDI/MDIX 1 POWER OUTPUT PORT
Network Media10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Power Supply12VDC 1A, 9VDC 1A, 5VDC 2A
Basic FunctionCompatible With IEEE 802.3af Compliant PSEs Delivers Power Up To 100 Meters Optional 12VDC, 9VDC or 5VDC Power Output
LED IndicatorPWR
Dimensions ( W x D x H )3.2*2.1*0.9 in.(80.8*54*24 mm)
Basic FunctionCompatible With IEEE 802.3af Compliant PSEs Delivers Power Up To 100 Meters Optional 12VDC, 9VDC or 5VDC Power Supply
CertificationFCC, CE, RoHS
System RequirementsMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

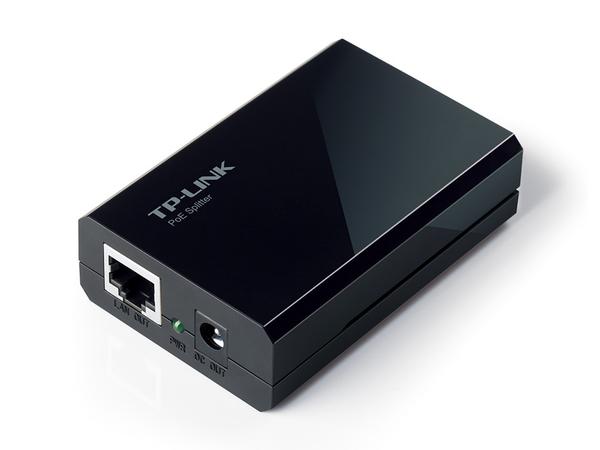

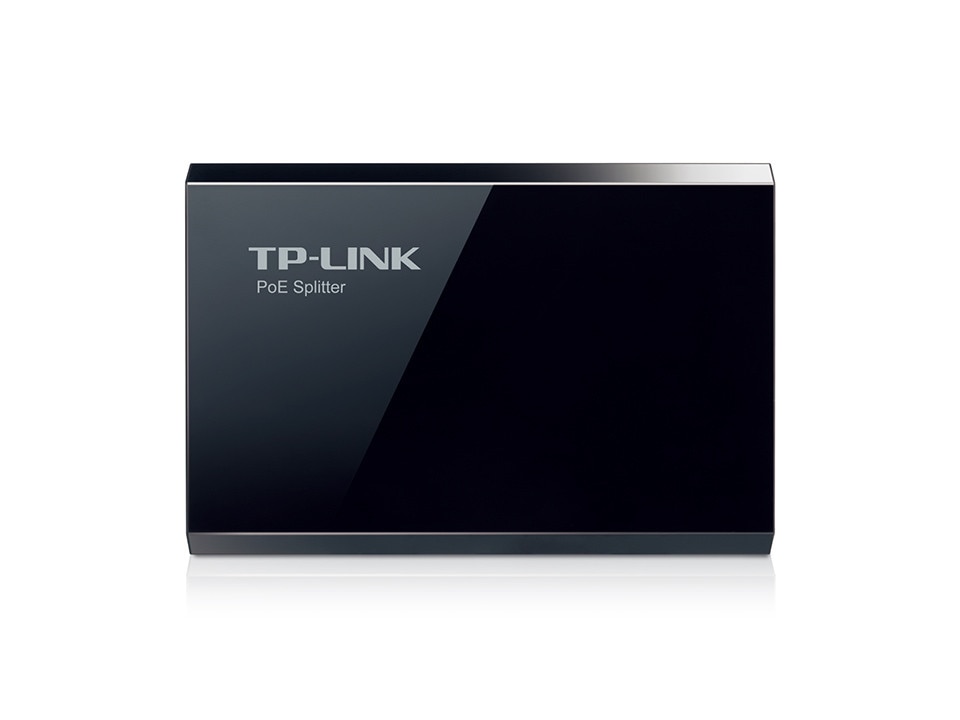

PoE Splitter TL-POE10R

What This Product Does

The PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK's T1600G-52PS, TL-SG1008PE or TL-POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.


Features:

  • IEEE 802.3af compliant
  • Output: 12VDC 1A, 9VDC 1A, 5VDC 2A selectable
  • Gigabit speed support
  • Plug-and-Play, requires no configuration
