Product Information

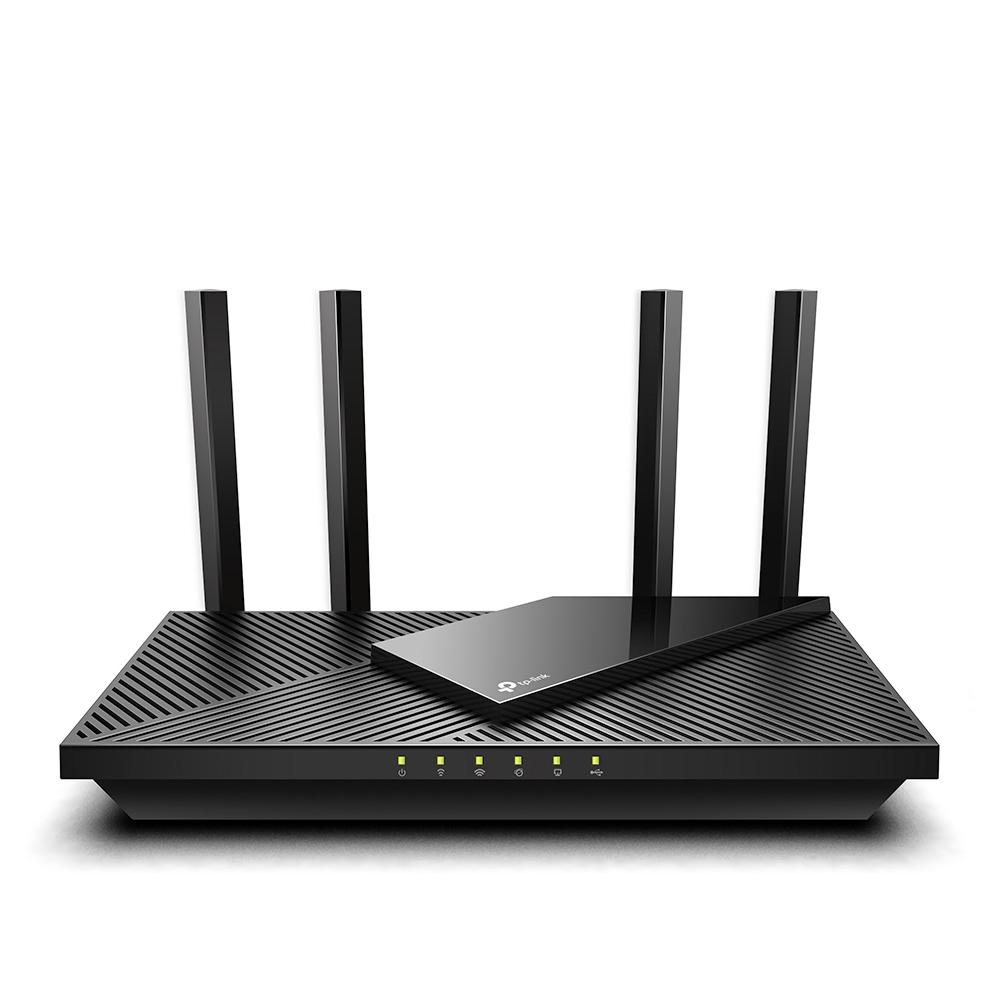

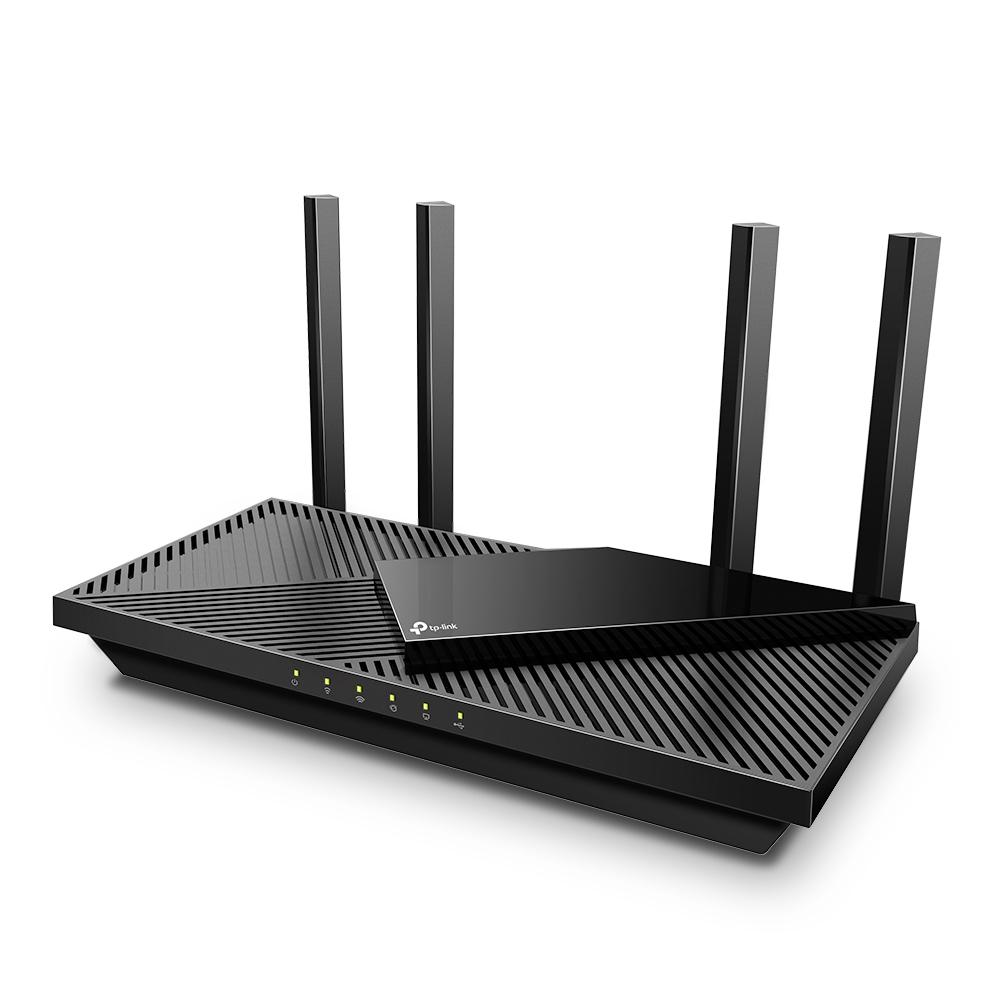

TP-Link Archer AX55
AX3000 Dual Band Gigabit Wi-Fi 6 Router
The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Incredible Speed
Drastically improved speeds enable streaming, fast downloading, and gaming—all at the same time. 5 GHz with 160 MHz channel support doubles the bandwidth, enabling 8K video without lag.
More Responsive Experiences
Enjoy smooth gaming, video streaming, and live feed simultaneously. OFDMA makes your WiFi stronger by allowing multiple clients to share one band at the same time, which cuts latency and jittering.
Connect More without Dropping Speed
Behind the Wi-Fi 6 technology structure are the advanced Qualcomm chipset and high memory. Enjoy fast connections with minimal latency even under a heavy load of transmission. Every click for website links and online playback on your laptop and phone just responds quicker.
Improved Cooling Design Consistent Full Output
No heat ups, no throttles. A larger heat sink and refined case design cool the WiFi 6 system and enable your network to stay at top speed in more versatile environments.
WiFi Coverage Throughout Your Home
4 high-performance external antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for previously hard to reach outlets.
USB 3.0 Ports
Easily share files between connected devices by plugging into an external drive. You can even make it your personal cloud storage and access it from outside securely*.
TP-Link HomeShield: Advanced Security for Your Everyday Devices
With TP-Link HomeShield, enjoy advanced security features delivering a safe environment that protects your family and network's data and privacy.
Home Network Scanner
Real-time network scanner to detect potential threats and security issues.
Parental Controls
Manage time online and block inappropritate content keeping your family safe online.
Quality of Service
Assign your favorite devices to have the fastest connections for top performance.
WPA3—New Level of Cyber Security
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.
Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AX55 in minutes. The Tether app allows you to manage network settings from any Android or iOS device.
Protect Your Children
Block inappropriate content for your children, and customize a time range for better online habits.
New Connection Notification
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.
Easy Firmware Upgrade
Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto schedule.
Features:
- Next-Gen Gigabit Wi-Fi 6 Speed—2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.
- Connect More Devices—OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.
- Ultra-Low Latency—Enables more responsive gaming and video chatting.
- Expanded Wi-Fi Coverage—Four high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home.
- TP-Link HomeShield - Enhanced security defends against the latest cyber threats.
- Improved Battery Life—Target Wake Time helps your devices to communicate more while consuming less power.
- Compatible with Alexa—Control your router via voice commands and make your life smarter and easier with Amazon Alexa.
Specifications
Specifications
| Hardware | |
| Antennas | 4× High-Performance Antennas |
| Ethernet Ports | 1× Gigabit WAN Port + 4 × Gigabit LAN Ports |
| USB Ports | 1× USB 3.0 Port |
| Dimensions | 10.2 × 5.3 × 1.5 in (261.1 × 134.5 × 41.0 mm) |
| Wireless | |
| Wireless | 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz), compatible with 11a/b/g/n/ac Wi-Fi standards |
| Frequency | 2.4 GHz and 5 GHz |
| Transmit Power | CE: <20dBm (2.4GHz); <23dBm (5.15GHz~5.35GHz); <30dBm (5.47GHz~5.725GHz) FCC: <30dBm (2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz) |
| Reception Sensitivity | 2.4GHz: 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-74dB 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dB 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm 5GHz: 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-75dBm 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm 11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm 11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-61dBm 11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-58dBm |
| Wireless Function | Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security | WPA/WPA2-Personal, WPA2/WPA3-Personal, WPA/WPA2-Enterprise |
| Software | |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management | Access Control, Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| NAT Forwarding | Port Forwarding, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP, TP-Link |
| Access Control | Parental Controls, Local Management Control, Host List, White List, Black List |
| Firewall Security | SPI Firewall, IP and MAC Address Binding |
| Protocols | IPv4, IPv6 |
| USB Sharing | Supports Samba(Storage)/FTP Server/Media Server |
| Guest Network | 2.4 GHz Guest Network, 5 GHz Guest Network |
| VPN Server | OpenVPN, PPTP VPN |
| Others | |
| Certification | FCC, CE, RoHS |
| System Requirements | nternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing |
