TP-Link AXE16000 Quad-Band 16-Stream Wi-Fi 6E Router with Two 10G Ports
- SKU: ARCHER AXE300
- Manufacturer: TP-Link
Product Information

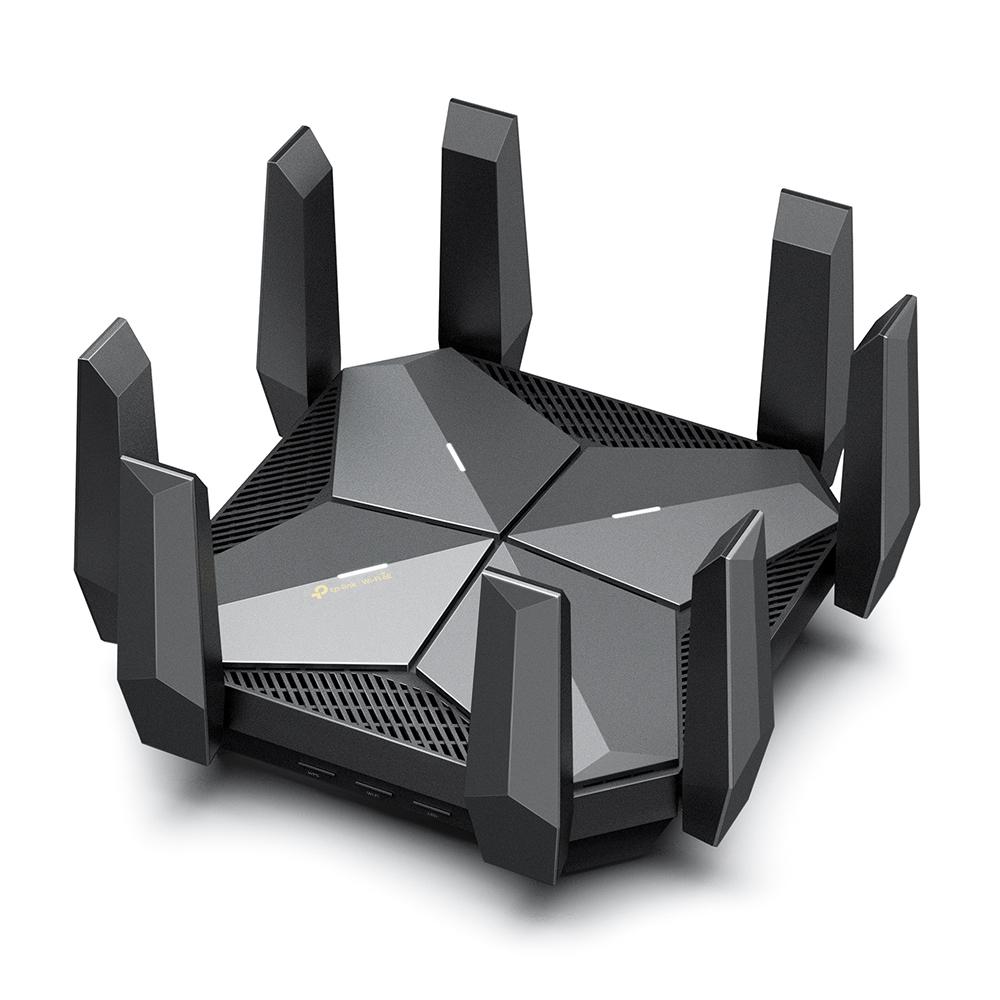

TP-Link Archer AXE300
AXE16000 Quad-Band 16-Stream Wi-Fi 6E Router with Two 10G Ports
WiFi 6E: A Freer and Faster Future
WiFi 6E introduces the brand new 6 GHz band without any overlap or interference from other bands and older devices. This means a congestion-free frequency that offers more bandwidth, faster speed, and lower latency.
Run Your 15.6 Gbps WiFi into Top Gear
Up to 15.6 Gbps Quad-Band WiFi enables your devices to run at full speed.*1 Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
Our Fastest WiFi 6E and WiFi 6 Router to Date Two 10G Multi-gig Ports
Equipped with two 10G WAN/LAN ports—one RJ45 port and a RJ45/SFP+ combo port—Archer AXE300 provides flexible support for both fiber and copper connections. WAN/LAN options and flexible 10 Gbps, 2.5 Gbps, and 1 Gbps ports make it an ideal solution for future-proofing your home network. Its USB 3.0 port offers up to 10× faster transfer speeds than USB 2.0.§
Industry-Leading CPU, Powerful Processing
The state-of-the-art 2.0 GHz quad-core 64-bit CPU with 1 GB RAM memory handles huge throughput to eliminate lag. Enjoy fast connections and minimal latency even under the heaviest transmission loads.
Boosted WiFi Coverage Throughout Your Home
8× high-performance dual-band antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.
Ideal for 3+ Bedroom Houses Massively Expanded Device Capacity
The number of IoT devices today creates greater demands on home networks. Archer AXE300 future-proofs your home WiFi with a higher capacity of up to 200+ devices.*1
TP-Link OneMesh™ : Flexibly Create Whole Home WiFi with Archer AXE300
OneMesh™ is a simple way to form a mesh network with a single WiFi name for seamless whole home coverage. Just connect a OneMesh™ range extender to a OneMesh™ router. No more searching for a stable connection.
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer AXE300 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer axe300 in minutes. The Tether app allows you to manage network settings from any Android or iOS device.
Protect Your Children
Block inappropriate content for your children, and customize a time range for better online habits.
New Connection Notifications
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.
Easy Firmware Upgrades
Tired of upgrading firmware manually? OTA updates simplify firmware upgrades with a click in the management panel. To keep your security and functions always up to date, just turn on the auto schedule.
Features:
- Our Fastest Wi-Fi 6E and Wi-Fi 6 Router to Date: Up to 15.6 Gbps Quad-Band WiFi for faster browsing, streaming, and downloading, all at the same time.
- WiFi 6E Unleashed: The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency.
- Two 10G Ports: 1× 10 Gbps WAN/LAN port + 1× 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1× 2.5 Gbps WAN/LAN port + 4× Gigabit LAN ports + 1× USB 3.0 port ensure max flexibility and boosted throughput.
- Powerful CPU: 2.0 GHz quad-core processor and 1 GB RAM ensure fast transmission speeds and smooth operation of numerous devices and applications.
- Maximized Coverage: 8× high-performance dual-band antennas along with Beamforming boost WiFi signals throughout your home.
- More Devices with Less Lag: OFDMA and MU-MIMO technology deliver data to multiple devices, simultaneously.
- TP-Link HomeShield: Enhanced security defends against the latest cyber threats.
Specifications
Specifications
| WIRELESS | |
| Standards | • IEEE 802.11ax 6 GHz, • IEEE 802.11ax/ac/n/a 5 GHz, • IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AXE16000 • 6 GHz: 4804 Mbps (802.11ax) • 5 GHz-1: 4804 Mbps (802.11ax) • 5 GHz-2: 4804 Mbps (802.11ax) • 2.4 GHz: 1148 Mbps (802.11ax) |
| WiFi Range | 4 Bedroom Houses 8× Fixed High-Performance Antennas |
| WiFi Capacity | Very High Quad-Band |
| Working Modes | • Router Mode • Access Point Mode |
| HARDWARE | |
| Processor | 2.0 GHz Quad-Core CPU |
| Ethernet Ports | • 1× 10 Gbps RJ45/SFP+ Combo WAN/LAN Port§ • 1× 10 Gbps WAN/LAN Port§ • 1× 2.5 Gbps WAN/LAN Port§ • 4× 1 Gbps LAN Ports |
| USB Support | 1× USB 3.0 Port • Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 • Supported Functions: FTP Server Media Server Samba Server |
| Buttons | • Power On/Off Button • Wi-Fi On/Off Button • LED On/Off Button • WPS Button • Reset Button |
| Power | 12 V ⎓ 5 A |
| SECURITY | |
| WiFi Encryption | • WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x) |
| Network Security | • SPI Firewall Real-Time IoT Protection |
| Guest Network | • 1× 6 GHz Guest Network • 1× 5 GHz-1 Guest Network • 1× 5 GHz-2 Guest Network • 1× 2.4 GHz Guest Network |
| VPN Server | • OpenVPN Server • PPTP VPN Server • L2TP VPN Server |
| VPN Client | • Open VPN Client • PPTP VPN Client • L2TP VPN Client |
| SOFTWARE | |
| Protocols | • IPv4 • IPv6 |
| Service Kits | HomeShield |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. |
| Parental Controls | HomeShield Parental Controls Custom Profiles |
| WAN Types | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | • Auto Firmware Upgrade • TP-Link ID • DDNS |
| NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
| IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
| DHCP | • Address Reservation • DHCP Client List • Server DDNS • TP-Link • NO-IP • DynDNS |
| Management | • Tether App • Webpage |
| OTHER | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing |
| TEST DATA | |
| WiFi Transmission Power | FCC: < 30 dBm (2.4 GHz), < 30 dBm (5 GHz), ≤ 25 dBm (6 GHz) |
| WiFi Reception Sensitivity | 2.4 GHz: 11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm 11ax HE40 MCS0: -95dBm, 11ax HE40 MCS11: -64dBm 5 GHz-1: 11ax HE20 MCS0: -93dBm, 11ax HE20 MCS11: -62dBm 11ax HE40 MCS0: -91dBm, 11ax HE40 MCS11: -60dBm 11ax HE80 MCS0: -88dBm, 11ax HE80 MCS11: -57dBm 11ax HE160 MCS0: -82dBm, 11ax HE160 MCS11: -52dBm 5 GHz-2: 11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -64dBm 11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -62dBm 11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -59dBm 11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -53dBm 6 GHz: 11ax HE20 MCS0: -95dBm, 11ax HE20 MCS11: -65dBm 11ax HE40 MCS0: -93dBm, 11ax HE40 MCS11: -62dBm 11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -58dBm 11ax HE160 MCS0: -84dBm, 11ax HE160 MCS11: -53dBm |
| Dimensions (W×D×H) | 9.1 × 9.1 × 2.7 in (232 × 232 × 68 mm) |
