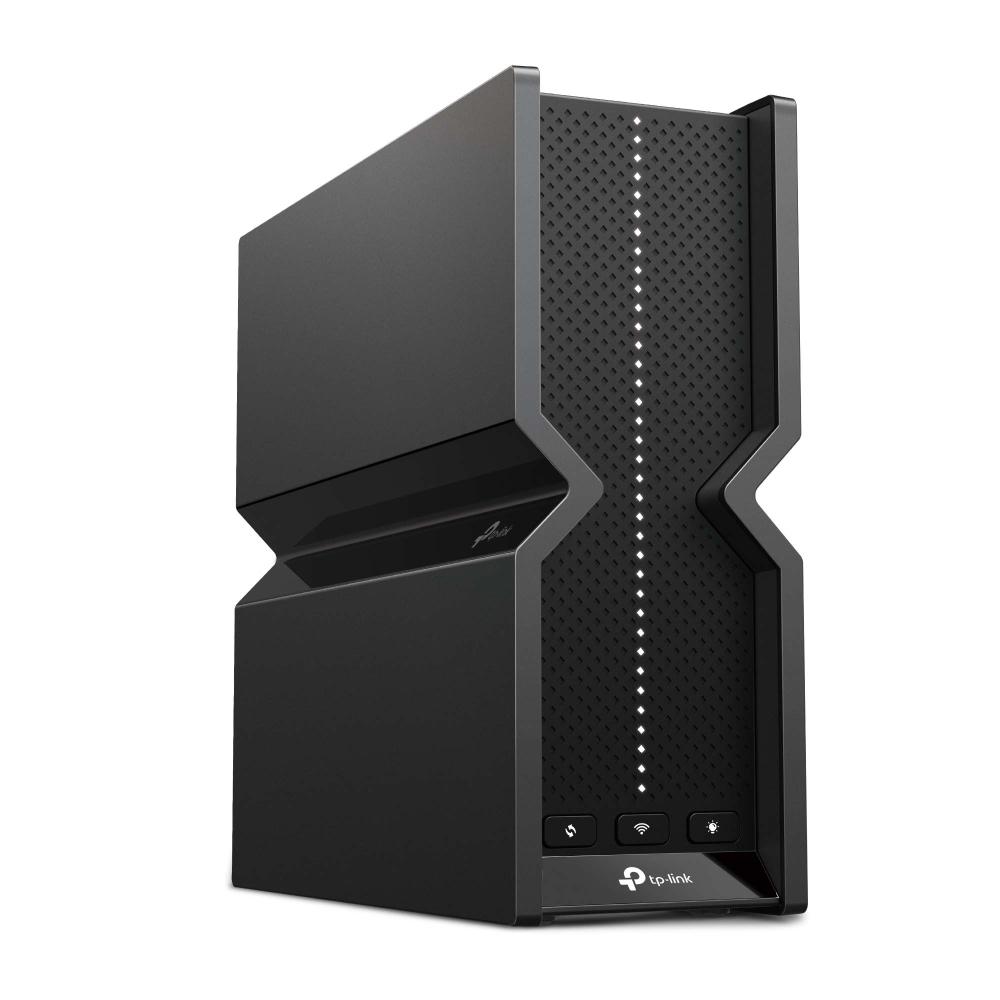

TP-Link BE9300 Tri-Band Wi-Fi 7 Router
- SKU: Archer BE550
Product Information
TP-Link Archer BE550
BE9300 Tri-Band Wi-Fi 7 Router
WiFi 7 — WiFi Like Never Before
WiFi 7 offers accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.
Ultra-Fast 9214 Mbps 6-Stream Tri-Band WiFi
Enjoy smooth 8K streaming, VR/AR, video conferencing, online gaming, and high-speed downloading.
5× 2.5 Gbps Ports for Full Multi-Gigabit Connectivity
One 2.5 Gbps WAN port maximizes home internet speeds with up to 2.5× the wired speed of a typical Gigabit Ethernet port. The additional four 2.5 Gbps LAN ports make Archer BE550 an ideal solution for future-proofing your home network.☆ Let’s begin the unprecedented smooth game!
6 High Gain Antennas with Beamforming, for Broader Coverage
- 6× Internal Antennas: Proprietary WiFi optimization and 6× optimally positioned antennas boost WiFi signals throughout your home.
- Beamforming Technology: Detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.
Flexibly Create Whole Home Mesh WiFi
Archer BE550 is EasyMesh-compatible. If you have any dead zones at home, just add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection. ※
Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer BE550 in minutes. The Tether app allows you to manage network settings from any Android or iOS device.
Protect Your Children
Block inappropriate content for your children and customize a time range for better online habits.
New Connection Notifications
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.
Easy Firmware Upgrades
Tired of upgrading firmware manually? OTA updates simplify firmware upgrades with a click in the management panel. To keep your security and functions always up to date, just turn on the auto schedule.
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer BE550 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
Homeshield Your Security is Our Priority
With TP-Link HomeShield, enjoy advanced security features that deliver a safe environment that protects your family and network's data and privacy.*
- Home Network Scanner: Real-time network scanner to detect potential threats and security issues.
- Parental Controls: Manage time online and block inappropriate content to keep your family safe online.
- Quality of Service: Assign your favorite devices to have the fastest connections for top performance.
Private IoT Network for More Security
Set up a separate WiFi for IoT devices and overlay HomeShield and advanced WPA3 encryption** to better protect the security of your home network and IoT devices.
Features:
- Redefining WiFi Routers: With powerful WiFi 7 performance, lightning-fast wired connections, and a brand-new design.
- Blazing-Fast 9.2 Gbps Tri-Band WiFi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.†‡
- Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.‡
- Full 2.5G Ports: One 2.5 Gbps WAN port and four 2.5 Gbps LAN ports break through the 1G bottleneck, driving your devices to peak performance.
- Maximized Coverage: Proprietary WiFi optimization and optimally positioned antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.
- EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.
- TP-Link HomeShield: Enhanced security defends against the latest cyber threats.
Specifications
Specifications Archer BE550
WIRELESS | |
WiFi Speeds | BE9300 • 6 GHz: 5760 Mbps (802.11be) • 5 GHz: 2880 Mbps (802.11be) • 2.4 GHz: 574 Mbps (802.11ax) |
WiFi Range | 4 Bedroom Houses Beamforming High-Power FEM |
WiFi Capacity | High 2×2 MU-MIMO OFDMA Airtime Fairness DFS 6 Streams |
Working Modes | • Router Mode • Access Point Mode |
Advanced Functions | • Multi-Link Operation (MLO) • 320 MHz Channel • 4K-QAM • Multi-RUs • EasyMesh-Compatible • Works with Alexa and Google Assistant • IoT Network |
SECURITY | |
Network Security | • SPI Firewall • HomeShield Security |
Guest Network | • 1× 6 GHz Guest Network • 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network |
VPN Server | • OpenVPN Server • PPTP VPN Server • L2TP VPN Server |
VPN Client | • Open VPN Client • PPTP VPN Client • L2TP VPN Client |
WiFi Encryption | • WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x) |
HARDWARE | |
Processor | High-Performance CPU |

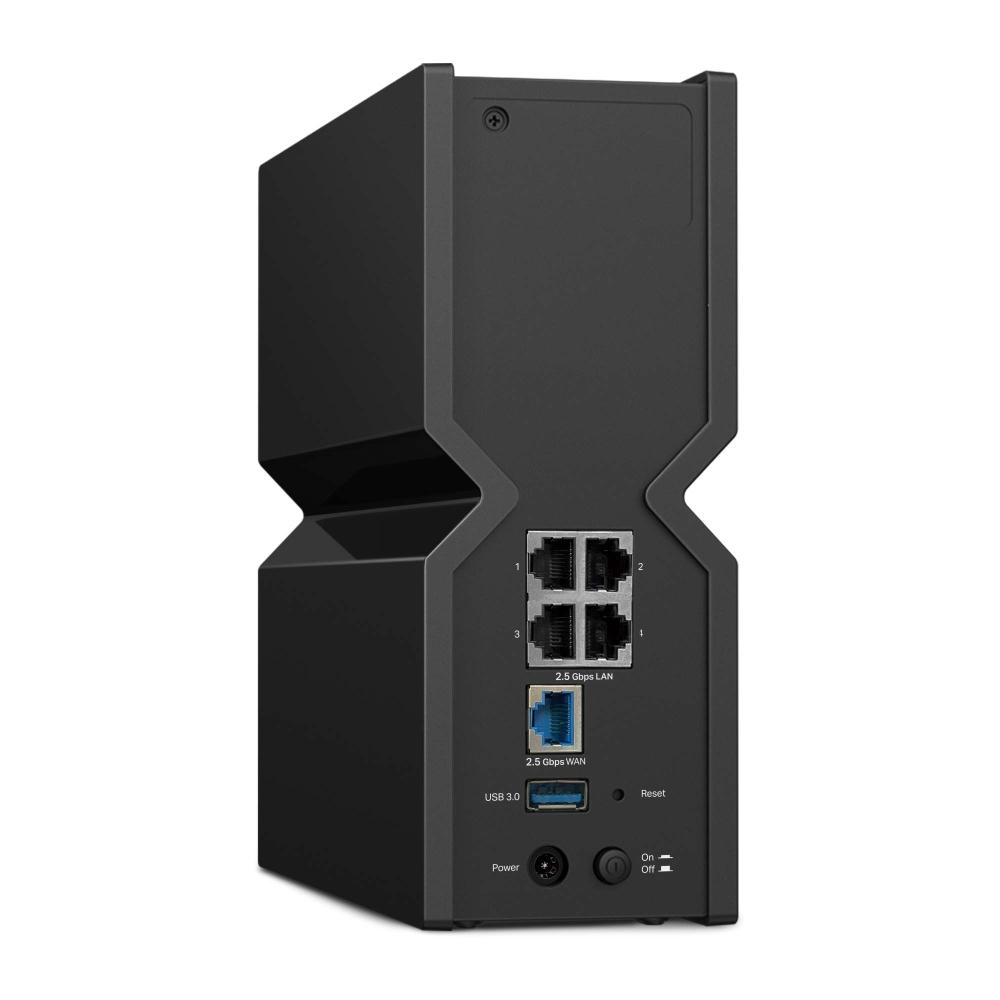

Ethernet Ports | • 1× 2.5 Gbps WAN • 4× 2.5 Gbps LAN |
USB Support | 1× USB 3.0 • Supported Partition Formats: • Supported Functions: |

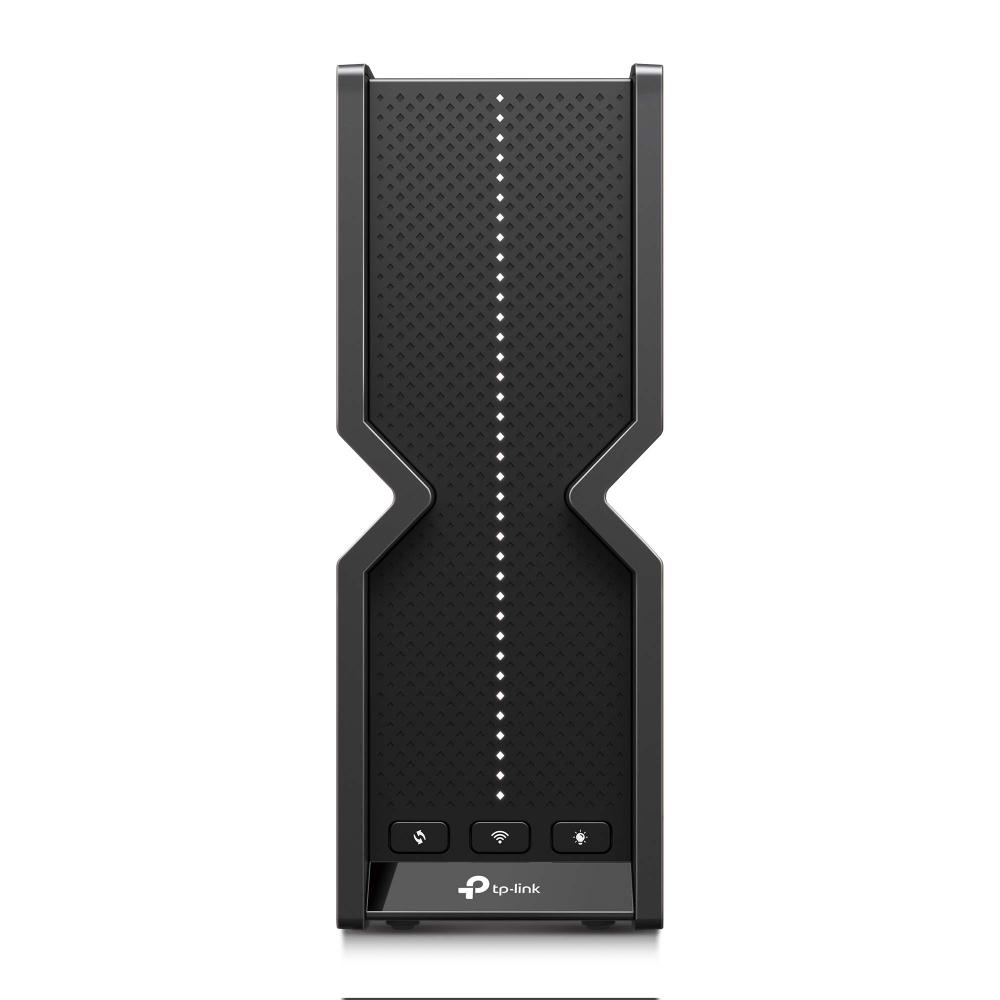

Buttons | • Power On/Off Button • Wi-Fi On/Off Button • LED Button • WPS Button • Reset Button |
Power | 12 V ⎓ 3.3 A |
SOFTWARE | |
Protocols | • IPv4 • IPv6 |
Service Kit | HomeShield |
EasyMesh | Compatible with EasyMesh |
Parental Controls | HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
WAN Type | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
Quality of Service | QoS by Device |
Cloud Service | • Auto Firmware Upgrade • TP-Link ID • DDNS |
NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
DHCP | • Address Reservation • DHCP Client List • Server |
DDNS | • TP-Link • NO-IP • DynDNS |
Management | • Tether App • Webpage |
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
Certifications | CE, FCC, RoHS |
Environment | • Operating Temperature: 0℃~40℃ (32℉ ~104℉) • Operating Humidity: 10%~90% non-condensing |
Dimensions (W×D×H) | 3.0 × 9.1 × 8.0 in (76 × 231.7 × 203 mm) Weight: 2.44 lb |
