TP-Link AC1200 WiFi Bluetooth 4.2 PCIe Adapter

  • SKU: Archer T5E
  • Manufacturer: TP-Link
  • Data Sheet: Download
  • User Guide: Download
  • Quick Installation Guide: Download
  • Availability: Direct Ship item Item usually ships directly from the manufacturer Email me when this product is in stock!
    Out of stock at College Station
US$‎39.99

Specifications Archer T5E

HARDWARE FEATURES
InterfacePCI Express
Dimensions4.8 × 3.3 × 0.85 in (120.8 × 83.2 × 21.5 mm)
Antenna2 Detachable External Antennas
BLUETOOTH FEATURES
Standards and ProtocolsBluetooth 4.2, Bluetooth 4.0
InterfaceUSB 2.0
WIRELESS FEATURES
Wireless StandardsIEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz
Signal Rate11ac: Up to 867 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic)
Reception Sensitivity5 GHz: 11ac HT80: -59.0dBm 11n HT40: -68.5dBm 11a 54Mbps: -73.5dBm 11a 6Mbps: -91dBm 2.4 GHz: 11n HT40: -69.5dBm 11g 54Mbps: -74dBm 11b 11Mbps: -87dBm
Transmit Power5 GHz: 21.5dBm(FCC) 2.4 GHz : 20.5dBm(FCC)
Wireless ModesInfrastructure mode
Wireless SecurityWEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Modulation TechnologyDBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
OTHERS
CertificationFCC, RoHS
System RequirementsWindows 10/8.1/8/7 (32/64 bit)
EnvironmentOperating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

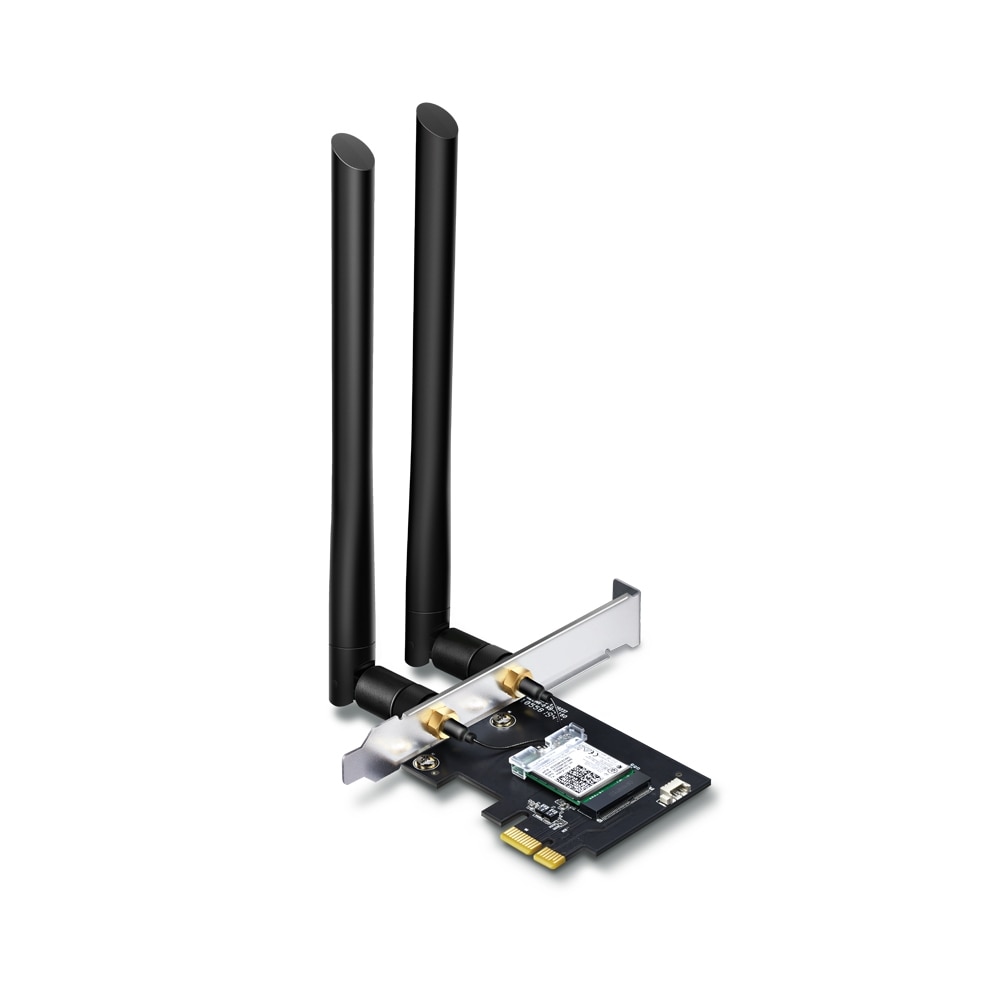

TP-Link Archer T5E

AC1200 WiFi Bluetooth 4.2 PCIe Adapter

Dual Band WiFi for Faster Connections

Archer T5E is an 802.11ac dual-band WiFi PCI Express adapter with speeds up to 1167 Mbps (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band), providing WiFi signals on two separate bands for all your online needs. Choose the 2.4 GHz band for surfing, emailing, and social media, or switch to 5 GHz band for gaming, streaming, and large file downloads.

Arm Your PC with Bluetooth 4.2

Archer T5E is compatible with advanced Bluetooth 4.2 technology, achieving 2.5× faster speed and 10× more packet capacity than Bluetooth 4.0 to turn non-Bluetooth PCs into Bluetooth-Capable. Just connect your Bluetooth devices to your computer and enjoy.

Powerful Antennas for Broader Coverage

Two powerful signal-boosting high-gain antennas greatly extend your existing WiFi reception capabilities, allowing you to enjoy fast and uninterrupted 4K streaming and smooth gaming.

Advanced Security

WPA/WPA2 encryption standards ensure your data is safe from cyberattacks

Operating System

Supports Windows 10/8.1/8/7 (32/64 bit)

Low-Profile Bracket

In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases


Features:

  • Super-Fast Speed: Make full use of your network with AC1200 WiFi speeds (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band).
  • Bluetooth 4.2: Achieve 2.5× faster speed and 10× more packet capacity than Bluetooth 4.0.
  • Broad Wireless Range: Connect to your WiFi from further away with two external high-gain antennas ensuring greater range and enhanced stability.
  • Easy Installation: Plug the adapter into an available PCI-E slot and install the drivers with the included CD.
  • Windows Compatibility: Supports Windows 10, 8.1, 8, and 7 (32/64-bit).
  • If you do not have a CD Rom or having difficulty with the CD please visit our homepage and search Archer T5E Driver is available for download on the support page for Archer T5E
