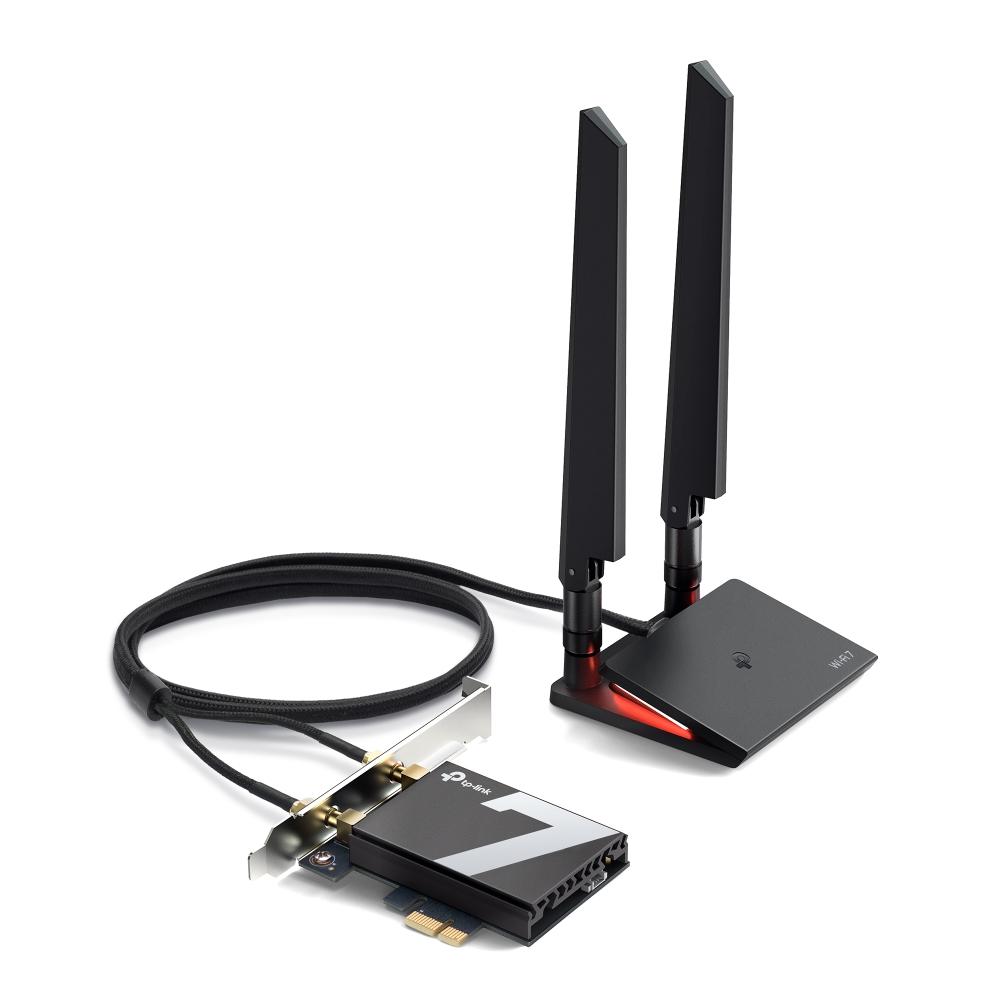

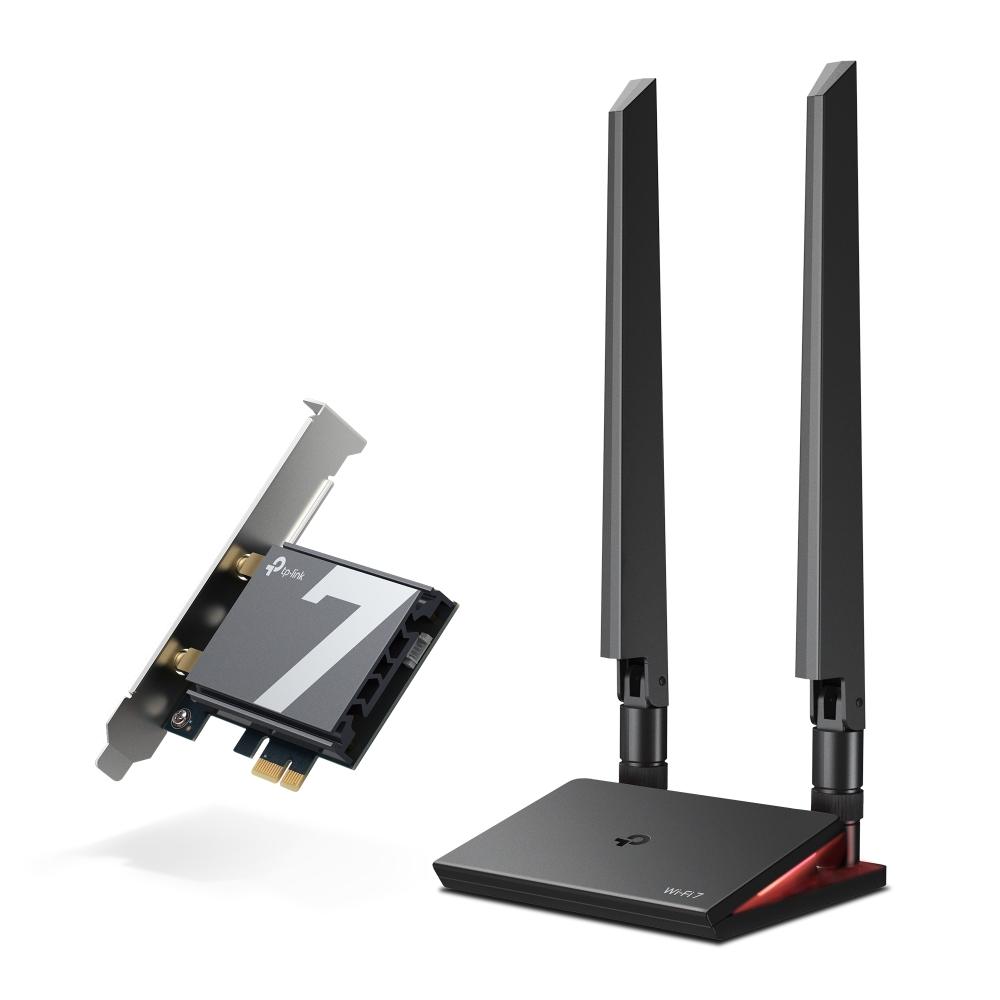

TP-Link BE9300 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter
- SKU: Archer TBE550E
Product Information
TP-Link Archer TBE550E
BE9300 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter
Unrivaled Wi-Fi 7 Technology
Wi-Fi 7 unlocks the full potential of the 6 GHz band, doubling the last generation's bandwidth. TBE550E delivers astonishing wireless speeds and flexible bandwidth combine, facilitating instant multi-stream media playback. Install, connect, and enjoy astonishing wireless speeds.
Maximized Coverage with Flexible Antenna Placement
Archer TBE550E has two multi-directional and high-performance antennas with a magnetized base. Place the antenna base anywhere on your desktop to find the optimal location for signal reception.
Intuitive Wi-Fi Status via Immersive Lighting
With captivating LED lighting effects, the base of Archer TBE550E not only offers an intuitive display of network status but also allows for effortless customization through its responsive touch switch.
Reliable Bluetooth 5.4
Bluetooth 5.4 Building upon the high-speed and wide-range capabilities of its predecessor, the updated Bluetooth 5.4 offers enhanced reliability and security, ensuring seamless interoperability with game controllers, headphones, keyboards, and more.
Refined Security
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.
Fast Installation via USB Drive
Easily set up your Archer TBE550E using the included USB drive—even without network connection. Experience a straightforward and user-friendly installation process.
Recommended Wi-Fi 7 Routers
- Archer BE800: BE19000 Tri-Band Wi-Fi 7 Router
- Deco BE85: BE19000 Tri-Band Whole Home Mesh WiFi 7 System
- Low-Profile Bracket: In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases.
- Operating System: Works with Windows 11.
Features:
- Unparalleled Tri-Band Speed — Boost your overall speeds up to 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 688 Mbps (2.4 GHz)
- Wi-Fi 7 Standard — Unleash the full potential of the 6 GHz band to double the bandwidth of the last generation.
- Wider Signal Coverage — Two multi-directional antennas with a magnetized base are designed for optimal signal reception.
- Reliable Bluetooth 5.4 – Security and reliability improvement than last-gen high-speed Bluetooth 5.3
- Improved Security – The latest security enhancement, WPA3, provides enhanced protection in personal password safety.
- Fast Installation with USB Drive — Plug in the resource USB drive provided with Archer TBE550E to quickly drive without network. Enjoy the simple and friendly adapter installation.
- Multicolor Wi-Fi Status Lighting — Equipped with vibrant LED lighting effects, the base provides an intuitive indication of network status, enhancing both functionality and aesthetics.
Specifications
Specifications Archer TBE550E
| HARDWARE FEATURES | |
| Dimensions | 3.7 × 4.8 × 0.8 in (95.2 ×120.8 ×21.5 mm) |
| Antenna Type | 2× High-Performance Tri-Band Antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax/be |
| WLAN Signal Rate | 6 GHz: 11be: Up to 5760 Mbps(dynamic) 11ax: Up t0 2402Mbps(dynamic) 5 GHz: 11be: Up to 2880 Mbps(dynamic) 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1732 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11be: Up to 688 Mbps(dynamic) 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| WLAN Reception Sensitivity | 6 GHz: 11ax HE20 MCS0: -94 dBm 11be EHT320 MCS13: -44dBm 5 GHz: 11ac VHT20 MCS0: -94 dBm 11be EHT160 MCS13: -48dBm 2.4 GHz: 11n HT20 MSC0: -95 dBm 11be EHT40 MSC13: -56dBm |
| WLAN Transmit Power | 2.4 GHz: 24dBm(FCC) (EIRP)/ 20dBm(CE) (EIRP) 5 GHz: 24dBm(FCC) (EIRP) /20dBm(CE) (EIRP) 6 GHz: 20dBm(FCC) (EIRP) /20dBm(CE) (EIRP) |
| WLAN Modes | Infrastructure mode |
| Wireless Security | WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
| Certification | FCC/CE/IC/NCC/JRF/VCCI/BSMI |
| System Requirements | Supported operating system: Windows 11(64-bit) only |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Accessories Specifications | Extension Cable Length: 1 m Bluetooth Header Cable Length: 0.3 m |
