TP-Link Archer TX20U Plus AX1800 Dual Antennas High Gain Wireless USB Adapter

(0)No Reviews yet
  • SKU: Archer TX20U Plus
US$‎49.99
  • Manufacturer: TP-Link

Out of Stock

 Open chat or call us for stock status

Product Information

TP-Link Archer TX20U Plus

AX1800 Dual Antennas High Gain Wireless USB Adapter

Your Upgrade to WiFi 6

Forget about buying a new PC. TX20U Plus delivers powerful dual band WiFi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps.

Coverage Powered by Beamforming

High-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.

Escape the Congestion with MU-MIMO

Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.

Lower Your Ping with OFDMA

Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.

A Perfect Match for Faster Speeds

USB 3.0 ensures there’s no bottleneck between TX20U Plus and your PC.

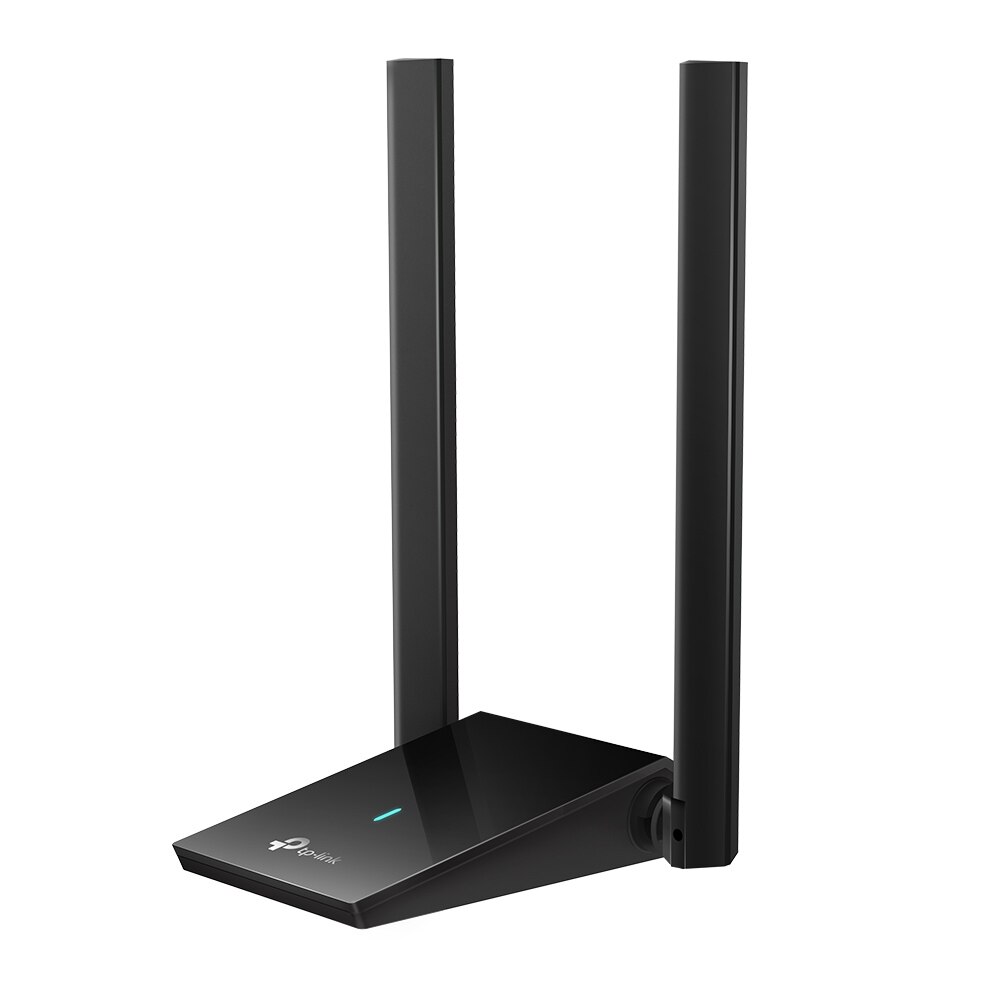

Adjustable, Multi-Directional Antennas

Rotate and adjust the antennas 180° for the best reception from any location.

Simple Design and Placement

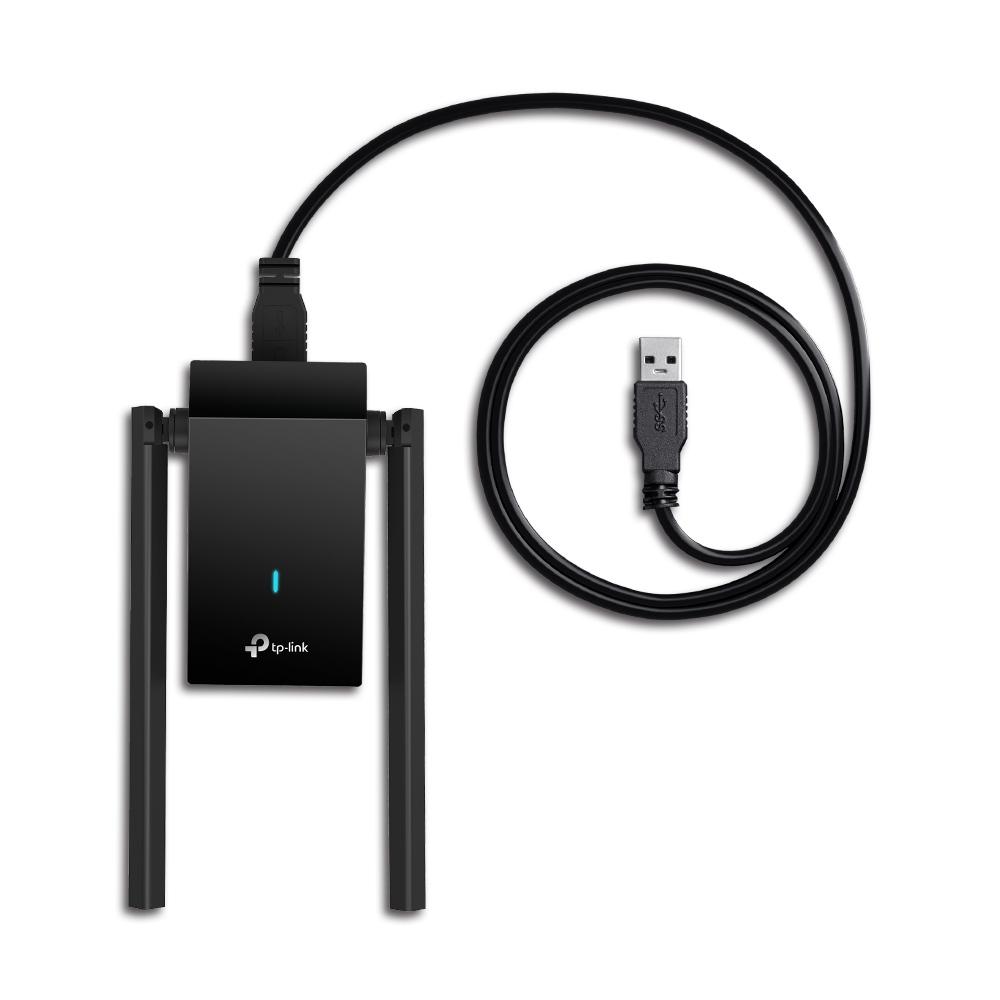

Find the best spot for network reception with TX20U Plus’s desktop-friendly design and 1-meter USB cable.



Features:

  • Lightning-Fast WiFi 6 – Stream flawless video with 1800 Mbps wireless speeds (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz)†
  • Flexible Dual Band – Ensure your PC has the best connection with 5 GHz and 2.4 GHz bands
  • Dual High-Gain Antennas – Connect from farther away with high-quality signals and transmissions
  • MU-MIMO – Maintain high download and upload speeds even when other devices are eating up your bandwidth△
  • OFDMA – Reduce your latency for impeccable conferencing and gameplay on crowded networks△
  • SuperSpeed USB 3.0 – Up to 10× faster transfer speeds than USB 2.0
  • Refined Security – Protect your personal data with the latest WPA3 encryption

Specifications

Specifications Archer TX20U Plus

HARDWARE FEATURES
LEDStatus
Dimensions84 × 156.3 × 19.2 mm (3.3 × 6.2 × 0.76 in)
Antenna2× High-Gain Dual-Band Antennas
WIRELESS FEATURES
Wireless StandardsIEEE 802.11a/b/g/n/ac/ax
Signal Rate
5 GHz:
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
2.4 GHz:
11ax: Up to 574 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
Reception Sensitivity
5 GHz:
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm
2.4 GHz:
11ax HE40 MCS0: -94 dBm
11ax HE40 MCS11: -66 dBm
11g 54Mbps: -79 dBm
11n HT40 MCS9: -74dBm
Transmit Power5 GHz: 19dBm(FCC) /16dBm(CE) (EIRP) 2.4 GHz : 19dBm(FCC) / 14.5dBm(CE) (EIRP)
Wireless ModesInfrastructure mode
Wireless SecurityWEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK
OTHERS
Certification
FCC, CE, RoHS
System Requirements
Supported operating systems include Windows 10, 11
Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
