TP-Link Omada 5-Port Gigabit Easy Smart Switch
- SKU: DS105GE
$24.99
Product Information

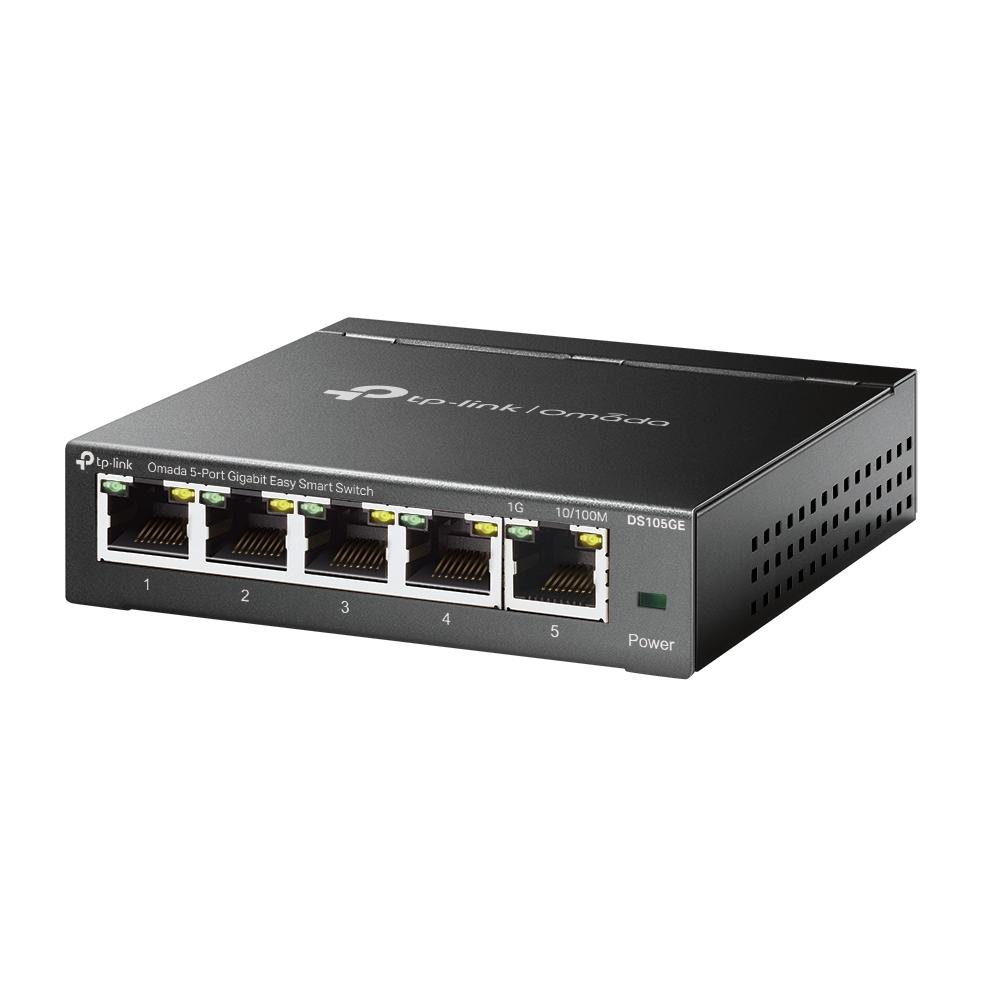

TP-Link DS105GE
Omada 5-Port Gigabit Easy Smart Switch
Features:
- 5× 10/100/1000Mbps RJ45 ports
- Plug and play for instant connectivity
- Simple configuration via web-based user interface and management utility*
- Durable metal casing of superior quality and professional appearance
- Green technology reduces power consumption
- Note: This Omada Easy Smart switch does not support Omada SDN central management.
Specifications
Specifications DS105GE
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | • 5× 10/100/1000 Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter (Output: 5 VDC/ 0.6 A) |
| Dimensions ( W x D x H ) | 3.9 × 3.9 × 1.0 in. (100 × 98 × 25 mm) Weight: 1.41 lb |
| Max Power Consumption | 2.82 W (220 V/ 50 Hz) |
| Max Heat Dissipation | 9.62 BTU/h |
| PERFORMANCE | |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 2 K |
| Packet Buffer Memory | 1 Mb |
| Jumbo Frame | 16 KB |
| SOFTWARE FEATURES | |
| Quality of Service | • Port/802.1p/DSCP priority • Support 4 priority queues • Rate Limit • Storm Control |
| L2 Features | • IGMP Snooping • Static Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention |
| VLAN | • Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) • MTU/Port/Tag VLAN |
| Transmission Method | Store-And-Forward |
| Certification | FCC, CE, RoHS |
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | • Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
