TP-Link BE10000 Whole Home Mesh Wi-Fi 7 System(Tri-Band)
- SKU: Deco BE63(1-pack)
Product Information

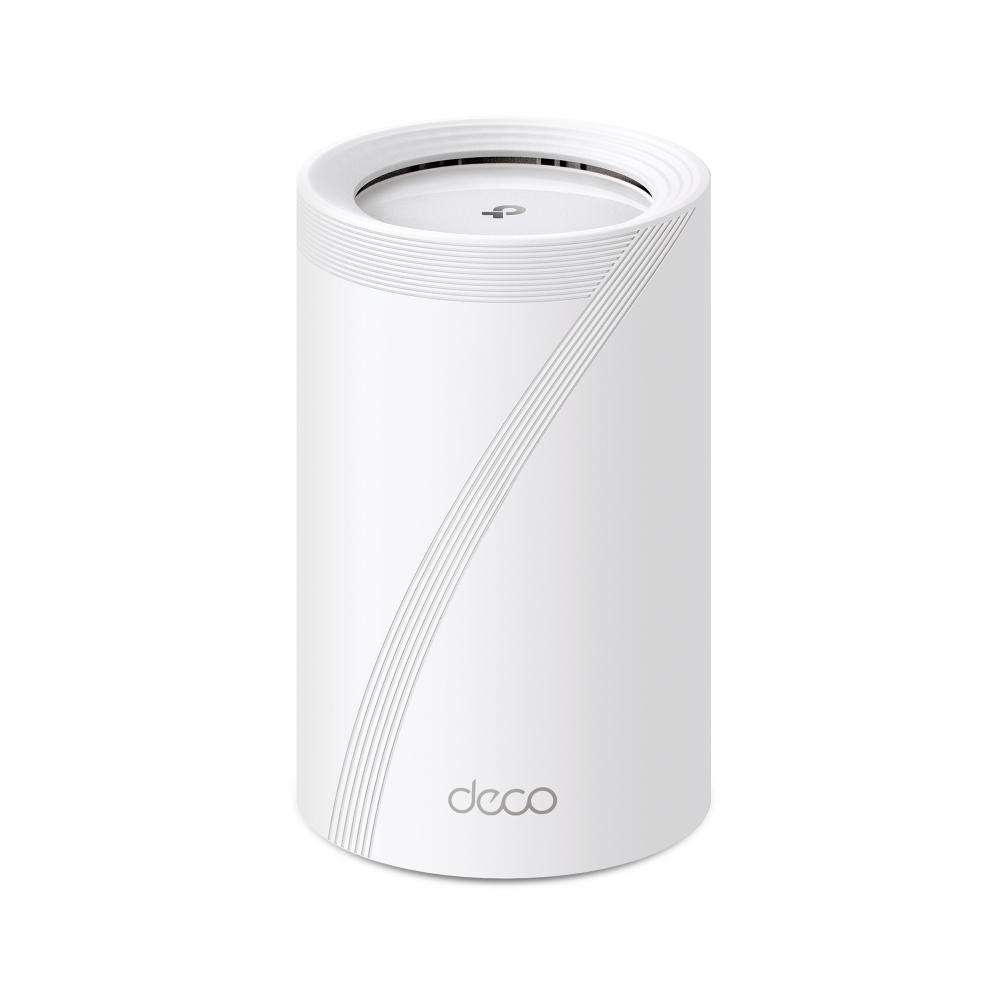

TP-Link Deco BE63(1-pack)
BE10000 Whole Home Mesh Wi-Fi 7 System(Tri-Band)
WiFi 7, WiFi Like Never Before
WiFi 7 offers accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.
Unrivaled WiFi 7 Speed up to 10 Gbps
Wi-Fi 7 unleashes the full potential of 4K-QAM and the 6 GHz band with up to 320 MHz channels, delivering unprecedented Wi-Fi speeds up to 10 Gbps. The new 6 GHz band provides exceptional bandwidth congestion-free channels.†
Whole Home Multi-Gigabit Connectivity
2.5 Gbps Wired BackhaulMost of the home is covered by 2.5 Gbps high-speed connections. The edge of the house also remained at around 2 Gbps. This builds the true whole home Multi-Gigabit mesh WiFi.***
Wireless Backhaul
The 1st-floor Deco BE63 remains the same as with a wired backhaul. But due to the walls and ceiling between the two floors, the center of the other Deco BE63 receives at least 1.5 Gbps speeds.***
Ultra-Fast 2.5 Gbps Wired Performance
4× 2.5 Gbps ports maximize home internet speeds with up to 2.5× the wired speed of a typical Gigabit Ethernet port. The additional USB port makes Deco BE63 an ideal solution for future-proofing your home network. Connect your favorite wired devices to Deco BE63 and get impressed.§
The Ultimate Backhaul: Stronger and More Flexible
Through our self-developed technology, Deco BE63 can connect a wireless and wired backhaul with each unit simultaneously. What’s more, with the latest WiFi 7 MLO technology, the system’s wireless and wired combined backhaul aggregation flow rate is increased. This way, it greatly improves overall throughput and reduces latency, delivering broader coverage with more stable and reliable connections.
Smart Security for Smart Living
HomeShield provides a series of built-in services that protect all your devices comprehensively with various features for when you’re at home or on the go. With HomeShield, safer internet experiences bring more happiness to your smart living.
Network Protection
Simply configure your gateway and achieve whole home network security. HomeShield examines your network by scanning and identifying potential risks, stopping them in their tracks before they harm your network.*
Parental Controls
Parental Controls protect your kids, while helping them maintain healthy digital habits. Parents can set app blocking, web filtering, YouTube restrictions, SafeSearch, and online time limits to keep kids safe while they’re having fun online.*
Maintain Protection Away from Home
Devices remain secure everywhere with devices security app. And through KidShield, parents can monitor their kids’ locations and set geofencing. This way, kids stay digitally protected even on the go.*
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. You can create different VPN connection types, including OpenVPN, PPTP, L2TP/IPSec VPN. Besides, Deco can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
Private IoT Network for More Security
Set up a separate WiFi for IoT devices and overlay HomeShield and advanced WPA3 encryption** to better protect the security of your home network and IoT devices.
Seamless AI-Driven Mesh Uninterrupted Streaming when Moving Between Rooms
Deco Mesh forms a unified network with a single network name. With built-in AI-Roaming technology, it creates the ideal WiFi solution with its advanced algorithms and self-learning. Walk through your home and enjoy seamless streaming at the fastest possible speeds.‡
Simple. Easy. Yet Powerful.
Setup and manage your network anytime and anywhere on the friendly TP-Link Deco app. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.
Easy Management
Manage your WiFi at home or away on the Deco app. See every connected device, prioritize your own, and set up a guest network.
Voice Control
Use an Amazon Alexa or Google Assistant-enabled device to control Deco BE63 with just your voice.
All Decos Work Together
Deco BE63 is compatible with every other Deco model to form a Mesh network. Expand Mesh WiFi coverage anytime by adding more Decos.
Features:
- 10 Gbps Tri-Band WiFi – 5188 Mbps (6 GHz) + 4324 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
- 2.5 Gbps Wired Connections – 4× 2.5 Gbps ports ensure max flexibility and boosted throughput.
- Premium Backhaul Performance – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.
- Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.△
- New 320 MHz Channels – Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.
- New 6 GHz Band – Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.
- TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.
- Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem.
Specifications
Specifications Deco BE63(1-pack)
WIRELESS | |
Standards | Wi-Fi 7 IEEE 802.11be/ax 6 GHz IEEE 802.11be/ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds | BE10000 6 GHz: 5188 Mbps (802.11be) 5 GHz: 4324 Mbps (802.11be) 2.4 GHz: 574 Mbps (802.11ax) |
WiFi Range | Broader Whole Home Coverage AI-Driven Mesh 4× High-Performance Antennas (Internal) Tri-Band |
WiFi Capacity | Very High 2×2 MU-MIMO OFDMA 6 Streams |
Working Modes | Router Mode Access Point Mode |
Advanced Functions | • Multi-Link Operation (MLO) • 320 MHz Channel • 4K-QAM • Multi-RUs • Works with Alexa and Google Assistant |
SECURITY | |
Network Security | SPI Firewall HomeShield Security |
Guest Network | 1× 6 GHz Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network Effective Time Bandwidth Control |
VPN Server | • OpenVPN Server • PPTP VPN Server • L2TP/IPSec VPN Server |
VPN Client | • OpenVPN Client • PPTP VPN Client • L2TP/IPSec VPN Client |
WiFi Encryption | WPA-Personal WPA2-Personal WPA3-Personal |
HARDWARE | |

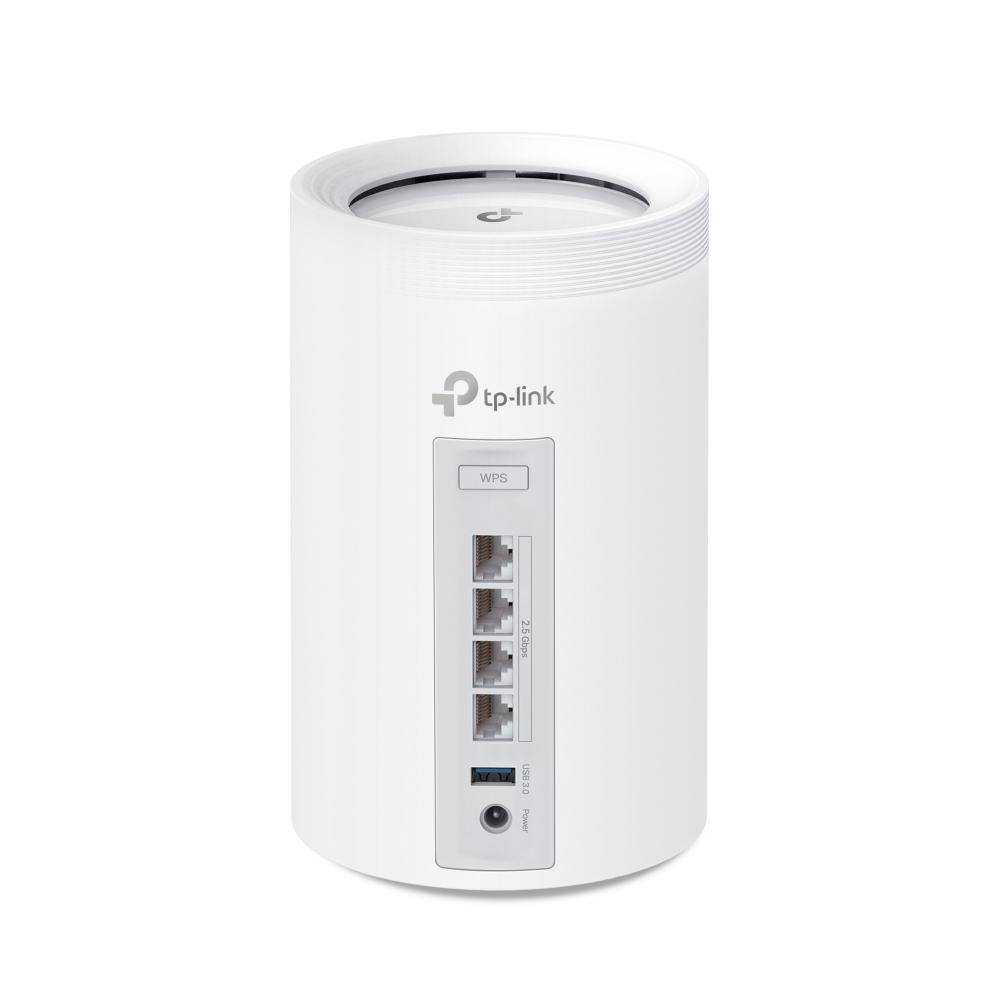

Ethernet Ports | • 4× 2.5 Gbps *Per Deco Unit |
USB Support | 1× USB Port FTP Server Media Server Samba Server |
Buttons | 1× Reset Button 1× WPS |
SOFTWARE | |
Advanced Features | • Reboot Schedule • Tapo/Kasa Onboarding • IoT network & Device Isolation • Static Routing Function • Node/Band Connection Preference |
Protocols | IPv4 IPv6 |
Service Kits | HomeShield |
Parental Controls | HomeShield Parental Controls Youtube Restriction SafeSearch Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service | HomeShield QoS QoS by Device |
Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding | Port Forwarding UPnP |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP | Address Reservation DHCP Client List Server |
DDNS | TP-Link |
Management | Deco App |
PHYSICAL | |
Dimensions (W×D×H) | 4.23 × 4.23 × 6.93 in (107.5 × 107.5 × 176 mm) |
Certifications | CE, FCC, RoHS |
Environment | Operating Temperature: 0°C~40°C (32 °F~104 °F) Storage Temperature: -40°C~60°C (-40 °F~140 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH |
