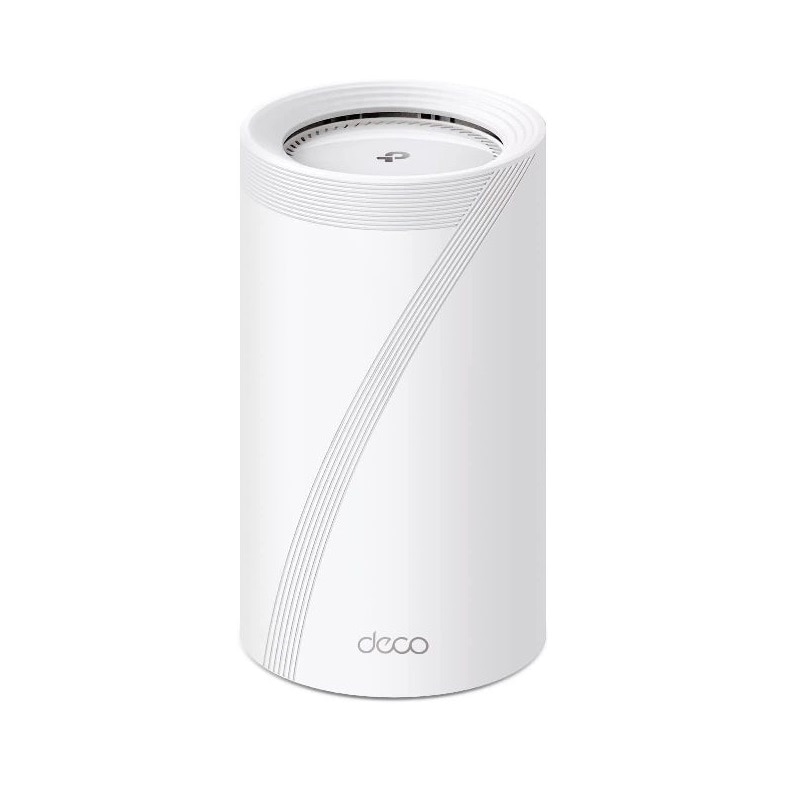

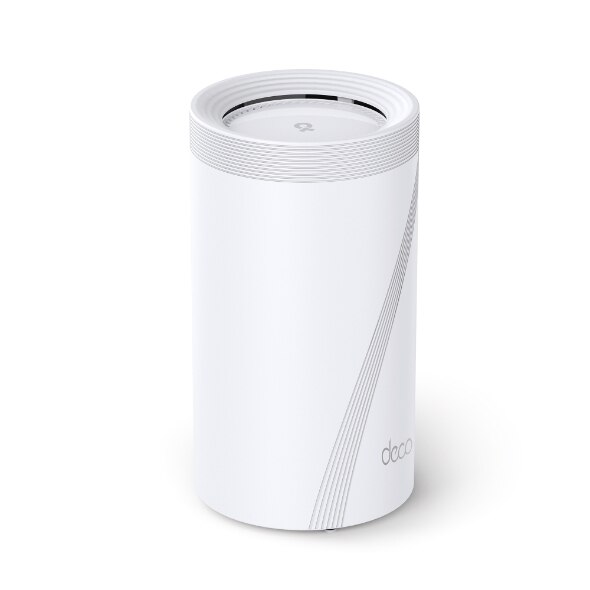

TP-Link BE22000 Tri-Band Whole Home Mesh WiFi 7 System
- SKU: Deco BE85(1-pack)
Product Information
TP-Link Deco BE85(1-pack)
BE22000 Tri-Band Whole Home Mesh WiFi 7 System
WiFi 7, WiFi Like Never Before
WiFi 7 has arrived with jam-dropping performance - offering accelerated throughput, lower latency, stronger anti-jamming and higher efficiency. Join the league of pros and experience the sheer performance of the next-generation WiFi.
High-End, Powerful, Exquisite, Blazing-Fast WiFi for Top Performance
Experience a high-end Tri-Band Whole Home WiFi 7 Mesh system with blazing-fast WiFi speeds up to 22 Gbps.† Now, every device in your home network will run at top performance. The exclusive 6 GHz band provides exceptional bandwidth and congestion-free channels exclusive to your devices.
Outstanding 10 Gbps Wired Performance

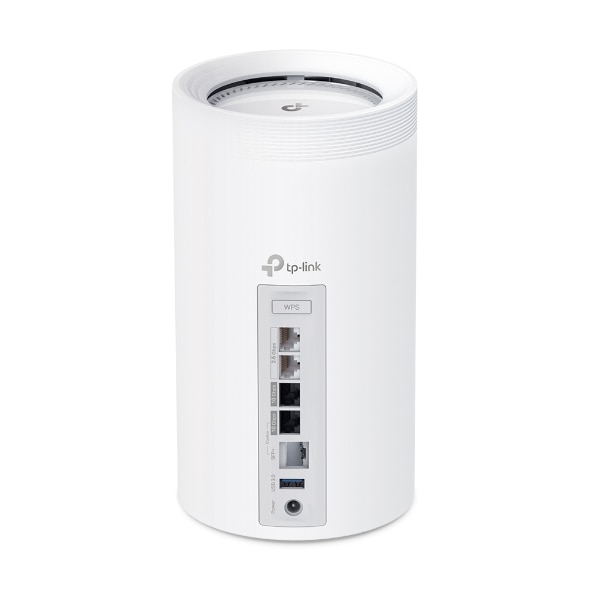

Equipped with two 10 Gbps WAN/LAN ports — one RJ45 port and an RJ45/SFP+ combo port — Deco BE85 provides flexible support for both fiber and copper connections.§ The additional 2.5 Gbps ports and USB 3.0 port make it an ideal solution for future-proofing your home network.
Down to the Last Detail
TP-Link’s in-house component research and thorough hardware selection ensure the quality and value of the entire Deco BE85 system. Everything comes together to form the perfect Mesh device.
The Ultimate Backhaul: Stronger and More Flexible
Through our self-developed technology, Deco BE85 can connect a wireless and wired backhaul with each unit simultaneously. What’s more, with the latest WiFi 7 MLO technology, the system’s wireless and wired combined backhaul aggregation flow rate is increased. This way, it greatly improves overall throughput and reduces latency, delivering broader coverage with more stable and reliable connections.
Smart Security for Smart Living
HomeShield provides a series of built-in services that protect all your devices comprehensively with various features for when you’re at home or on the go. With HomeShield, safer internet experiences bring more happiness to your smart living.
Seamless AI-Driven Mesh, Uninterrupted Streaming when Moving Between Rooms
Deco Mesh forms a unified network with a single network name. With built-in AI-Roaming technology, it creates the ideal WiFi solution with its advanced algorithms and self-learning. Walk through your home and enjoy seamless streaming at the fastest possible speeds.
Simple. Easy. Yet Powerful.
Setup and manage your network anytime and anywhere on the friendly TP-Link Deco app. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.
Easy Management
Manage your WiFi at home or away on the Deco app. See every connected device, prioritize your own, and set up a guest network.
Voice Control
Use an Amazon Alexa or Google Assistant-enabled device to control Deco BE85 with just your voice.
All Decos Work Together
Deco BE85 is compatible with every other Deco model to form a Mesh network. Expand Mesh WiFi coverage anytime by adding more Decos.
Features:
- 12-Stream 22 Gbps Tri-Band WiFi – 11520 Mbps (6 GHz) + 8640 Mbps (5 GHz) + 1376 Mbps (2.4 GHz).
- Unprecedented 10 Gbps Network – 1× 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1× 10 Gbps WAN/LAN port + 2× 2.5 Gbps ports ensure max flexibility and boosted throughput.§
- Wireless and Wired Combined Backhaul – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.
- Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.△
- 320 MHz Channels – Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.△
- Works on the 6 GHz Band – Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.△
- TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.
- Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem.
Specifications
Specifications Deco BE85(1-pack)
Hardware | |
Ethernet Port | 1× 10 Gbps RJ45/SFP+ Combo port + 1× 10 Gbps port + 2× 2.5 Gbps ports per unit (WAN/LAN auto-sensing) |
Button | 1 RESET button at the bottom, 1 WPS button on the back |
Port | 1× USB 3.0 Port |
Power Consumption (without power adapter) | 51 W max |
Dimensions (W × D × H) | 5.04 × 5.04 × 9.29 in (128 × 128 × 236 mm) |
Power Adapter Input | 100-240V~50/60Hz 2A / 100-240~50/60Hz 1.8A |
Power Adapter Output | 15V 5A / 12V 5A |
Wireless | |
Wireless Standards | IEEE 802.11b/g/n/ax/be 2.4 GHz, IEEE 802.11a/n/ac/ax/be 5GHz, IEEE 802.11ax/be 6 GHz |
Mesh protocol | 802.11k/v/r |
Frequency | 2.4 GHz, 5 GHz, 6 GHz |
Signal Rate | 11520 Mbps (6 GHz) + 8640 Mbps (5 GHz) + 1376 Mbps (2.4 GHz)†, 12 Streams |
Transmit Power | FCC: <30 dBm(2.4 GHz), <30 dBm(5 GHz), <30 dBm(6 GHz) |
Wireless Security | WPA/WPA2-PSK/WPA3◊ encryptions |
Software | |
Working Mode | Router, Access Point |
WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
DHCP | Server |
Protocols | Supports IPv4 and IPv6 |
Guest Network | 2.4 GHz Guest Network×1, 5 GHz Guest Network×1, 6 GHz Guest Network ×1 |
IoT Network | IoT Network×1 |
MLO Network | MLO Network×1 |
Features | TP-Link HomeShield*, Multi-Link Operation (MLO)△, 320 MHz Bandwidth△, 4K-QAM△, Multi-RU△, MU-MIMO△, OFDMA△, BSS Color△ |
Management | Local Management; Remote Management; Multi-Managers |
Certification | FCC, RoHS |
Environment | |
Operating Temperature | 0°C~40°C (32°F~104°F) |
Storage Temperature | -40°C~60°C (-40 °F~140 °F) |
Operating Humidity | 10%~90% RH |
Storage Humidity | 5%~90% RH |
