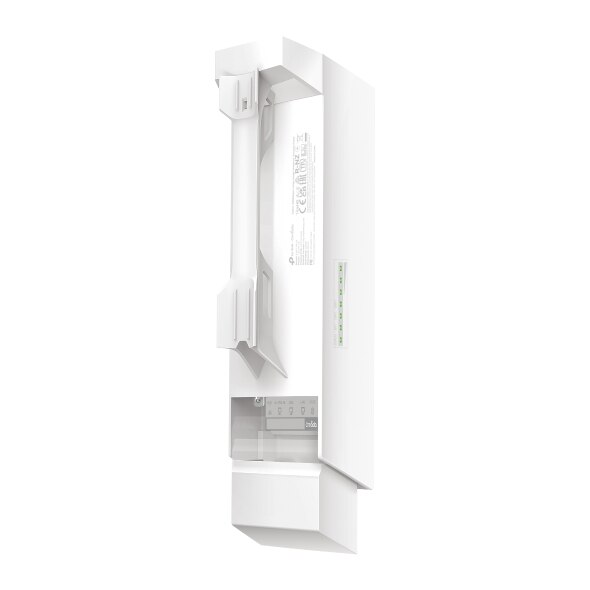

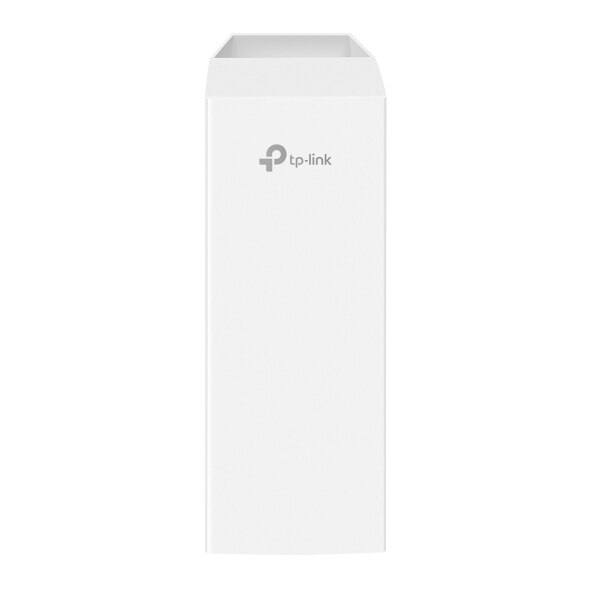

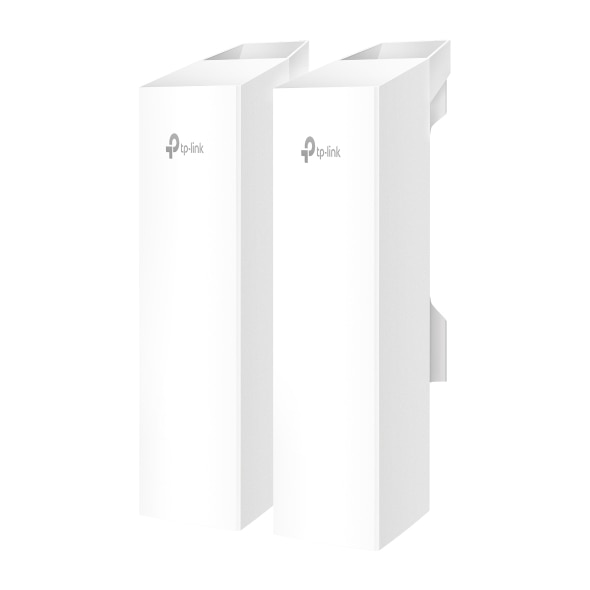

TP-Link 5GHz 300Mbps Long-range Indoor/Outdoor Access Point
- SKU: EAP115-Bridge KIT
$89.99
Product Information
TP-Link EAP115-Bridge KIT
5GHz 300Mbps Long-range Indoor/Outdoor Access Point
Outdoor PtP (Point-to-Point) Wi-Fi Connection
- Extend Wi-Fi to Additional Buildings: Extend your home network or Wi-Fi to your shop, barn, garage, farm, storehouse, guesthouse, or RV.
- Extend Wi-Fi to Additional Offices: Provide 550Mbps bandwidth within a 328ft (100m) range using the EAP215-Bridge KIT or EAP211-Bridge KIT.*
- Elevator PtP Wi-Fi for Surveillance: Record real-time video to an NVR with virtually no hardwiring required
Outdoor PtMP (Point-to-Multipoint) Wi-Fi for Surveillance
- Parking Lots: Remotely connect cameras to
- Farms / Orchards: Remotely connect cameras to protect
- Construction Sites: Rapidly deploy wireless networks to remotely monitor construction progress in real time or manage logistics.
Easy Setup and Installation
- Auto-Pairing to Reduce Setup Time: *Auto pairing works for the original kit. Three or more bridges require manual setup.
- LED Signal Indicator for Easy Alignment
- Pole/Wall Mount for Easy Installation: *Pole mounting accessories are included, while the bracket for wall mounting and pole mounting requires purchase separately.
Standalone Mode Simple Setup for Individual Scenarios
- 1. Power on both bridges and connect one to the network via cable to make it the main bridge.
- 2. Set up the main bridge using the Omada App or Web UI, then configure the sub-bridge step by step.
- 3. Deploy the sub-bridge at the remote location, align it using the signal LED, and optimize with the app if needed.
Works with Omada SDN Faster Batch Deployment and Remote Management
Omada bridges integrate with Omada SDN for centralized management and remote access, enabling faster batch deployment of multiple bridge pairs, using batch provisioning.
Features:
- 802.11n for up to 300 Mbps on the 5 GHz wireless data rate.
- Ideal for long-range wireless transmission up to 5 km.
- Auto-pairing and agile LEDs for efficient deployment.

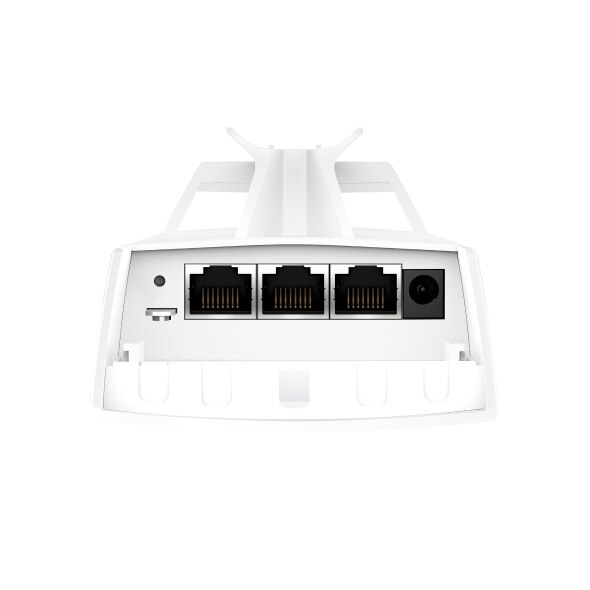

- 3× 10/100 Mbps Ethernet ports for more high-speed IP camera connections.
- Supports Omada SDN for remote and centralized management.
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
- Supports Passive PoE for flexible deployment (adapter included).
Specifications
Specifications EAP115-Bridge KIT
Interface | 3x 10/100 Mbps Ethernet Ports*6 | |
Button | Reset | |
Power Supply | 12V DC / 24V Passive PoE (Passive PoE adapter included.) | |
Power Consumption | 6.5W | |

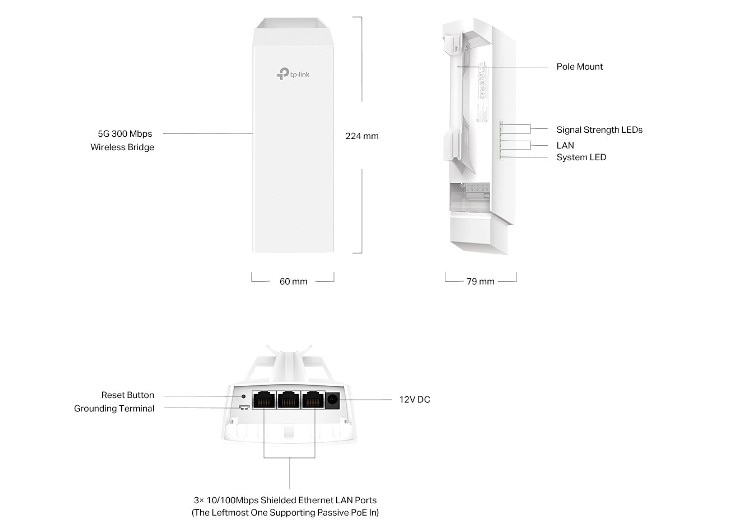

Dimensions ( W x D x H ) | 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm) | |
Antenna Type | Internal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 11.0 dBi Horizontal:35°, Vertical: 35° | |
Weatherproof Enclosure | IP65 | |
Mounting | Pole mounting (Accessories included) | |
WIRELESS FEATURES | ||
Coverage | 5000m(16400ft)5 | |
Wireless Standards | IEEE 802.11 a/n | |
Frequency | 5 GHz | |
Signal Rate | 5 GHz: Up to 300 Mbps | |
Wireless Functions | • Mesh*4 • Load Balance • Beamforming • Airtime Fairness • Seamless Roaming(802.11r) • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP | |
Wireless Security | • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication*4 • Maximum number of MAC Filter: 4,000 • WPA-Personal/Enterprise, WPA2-Personal/Enterprise | |
Transmission Power | • CE: • FCC: | |
MANAGEMENT | ||
Omada App | Yes | |
Restore & Backup | Yes | |
Firmware update via Web | Yes | |
NTP | Yes | |
Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller | |
Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. | |
LED ON/OFF Control | Yes | |
Management MAC Access Control | Yes | |
SNMP | v1, v2c, v3 | |
SSH | Yes | |
Web-based Management | Yes | |
Certification | CE, FCC, RoHS | |
Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
