TP-Link Omada Wireless Bridge 5 GHz 867 Mbps Indoor/Outdoor Access Point

(0)No Reviews yet
  • SKU: EAP211-Bridge KIT
$139.99

3 In Stock

3 in stock
College Station - TX
3 In stock

Product Information

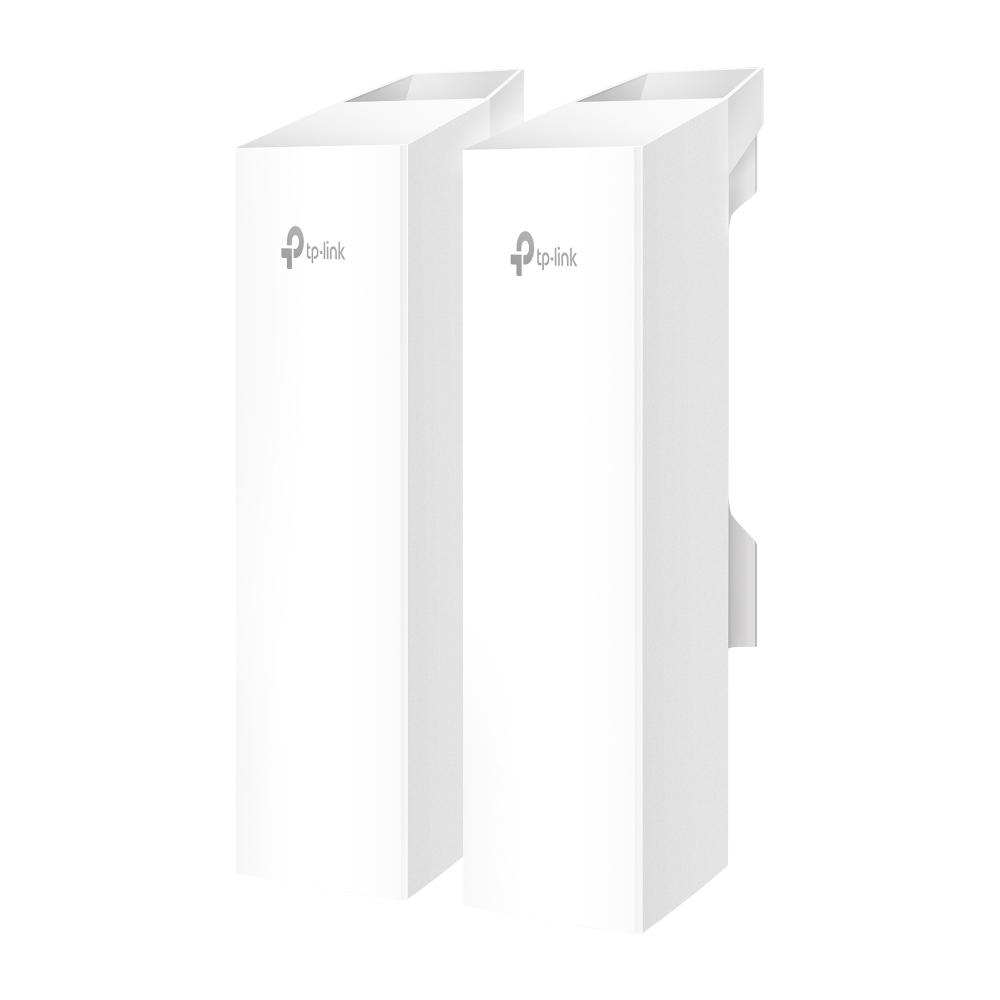

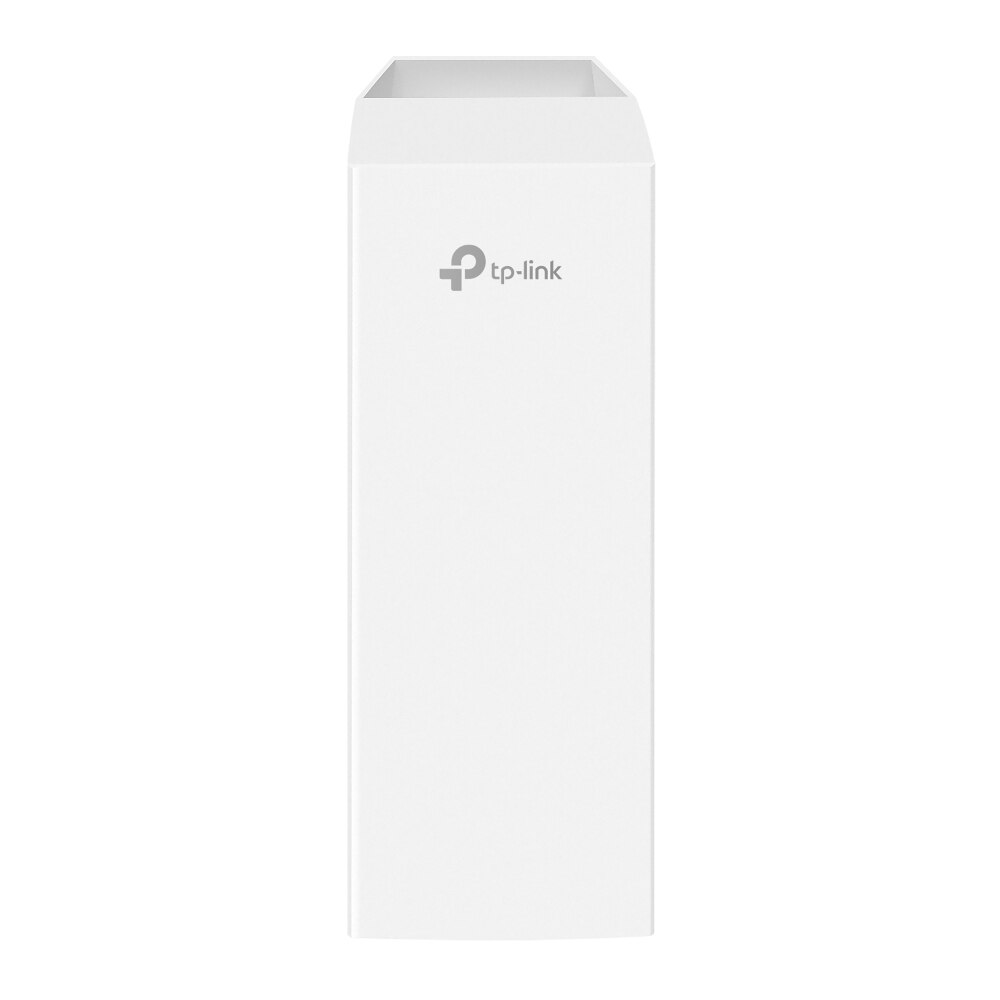

TP-Link EAP211-Bridge KIT

Omada Wireless Bridge 5 GHz 867 Mbps Indoor/Outdoor Access Point

Long-Distance PtMP & PtP Wi-Fi Transmission, Perfect for Multiple Scenarios

  • Up to 3.1mi (5km) Distance: Ideal for setting up networks in remote locations.
  • Up to 70° Beamwidth for Wider Deployment: One central AP covers more distributed APs and cameras, eliminating the need for multiple central APs.
  • Three Ports for More Devices: Connect more cameras and devices without an extra switch.
  • IP65 Weatherproof for Outdoor Use: Durable performance with IP65 rating and operating range of -40°F to 158°F (-40°C to 70°C).
  • Standalone or Omada SDN Mode: Flexible dual modes for batch deployment and remote management via the Omada app or Web UI.

Outdoor PtP (Point-to-Point) Wi-Fi Connection

  • Extend Wi-Fi to Additional Buildings: Extend your home network or Wi-Fi to your shop, barn, garage, farm, storehouse, guesthouse, or RV.
  • Extend Wi-Fi to Additional Offices: Provide 550Mbps bandwidth within a 328ft (100m) range using the EAP215-Bridge KIT or EAP211-Bridge KIT.*
  • Elevator PtP Wi-Fi for Surveillance: Record real-time video to an NVR with virtually no hardwiring required

Outdoor PtMP (Point-to-Multipoint) Wi-Fi for Surveillance

  • Parking Lots: Remotely connect cameras to reduce crime and accidents
  • Farms / Orchards: Remotely connect cameras to protect your property
  • Construction Sites: Rapidly deploy wireless networks to remotely monitor construction progress in real time or manage logistics.

Easy Setup and Installation

  • Auto-Pairing to Reduce Setup Time
  • LED Signal Indicator for Easy Alignment
  • Pole/Wall Mount for Easy Installation

Standalone Mode

Simple Setup for Individual Scenarios

  • 1. Power on both bridges and connect one to the network via cable to make it the main bridge.
  • 2. Set up the main bridge using the Omada App or Web UI, then configure the sub-bridge step by step.
  • 3. Deploy the sub-bridge at the remote location, align it using the signal LED, and optimize with the app if needed.

Works with Omada SDN Faster Batch Deployment and Remote Management

Omada bridges integrate with Omada SDN for centralized management and remote access, enabling faster batch deployment of multiple bridge pairs, using batch provisioning.


Features:

  • 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.*1
  • Ideal for long-range wireless transmission up to 1 km.*2
  • Auto-pairing and agile LEDs for efficient deployment.
  • 3× Gigabit Ethernet ports for more high-speed IP camera connections.*6
  • Supports Omada SDN for remote and centralized management.
  • IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.*3
  • Supports Passive PoE for flexible deployment (adapter included).

Specifications

Specifications EAP211-Bridge KIT

HARDWARE FEATURES

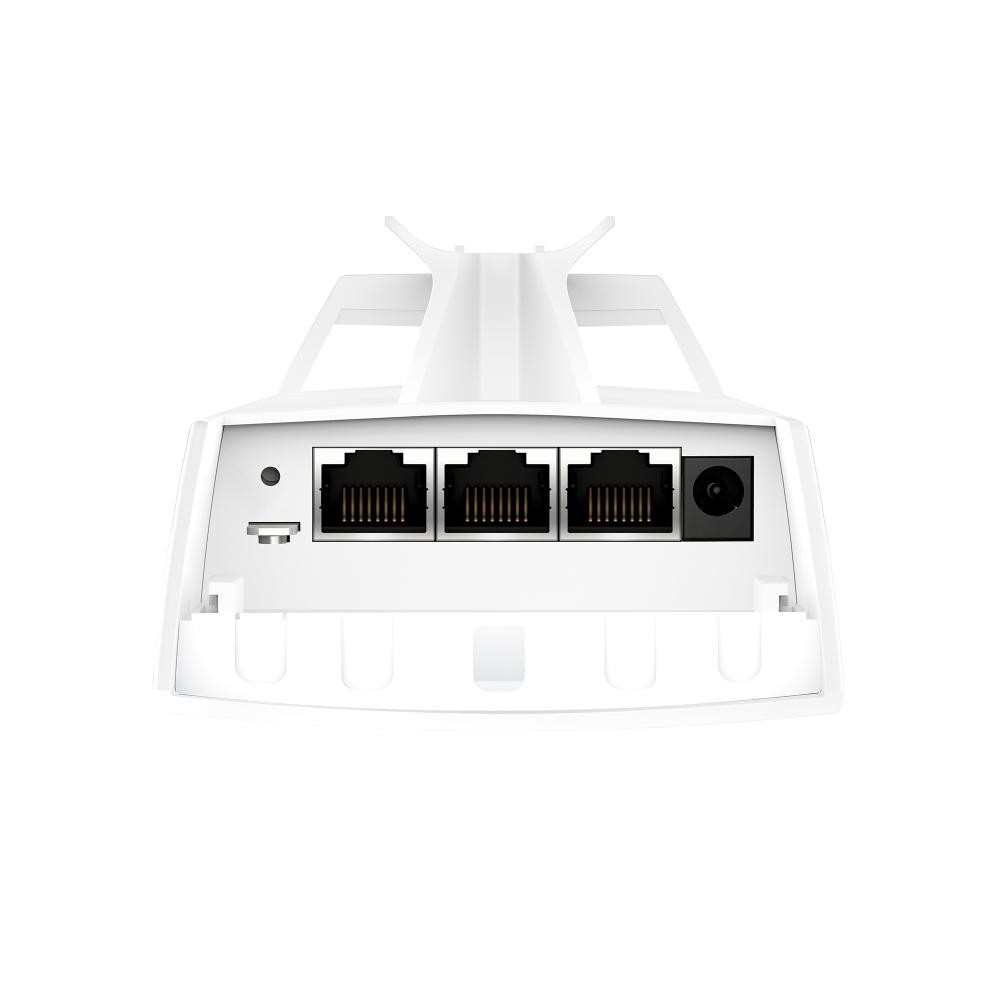

Interface3x Gigabit Ethernet Ports*6
ButtonReset
Power Supply12V DC / 24V Passive PoE (Passive PoE adapter included.)
Power Consumption11.5W

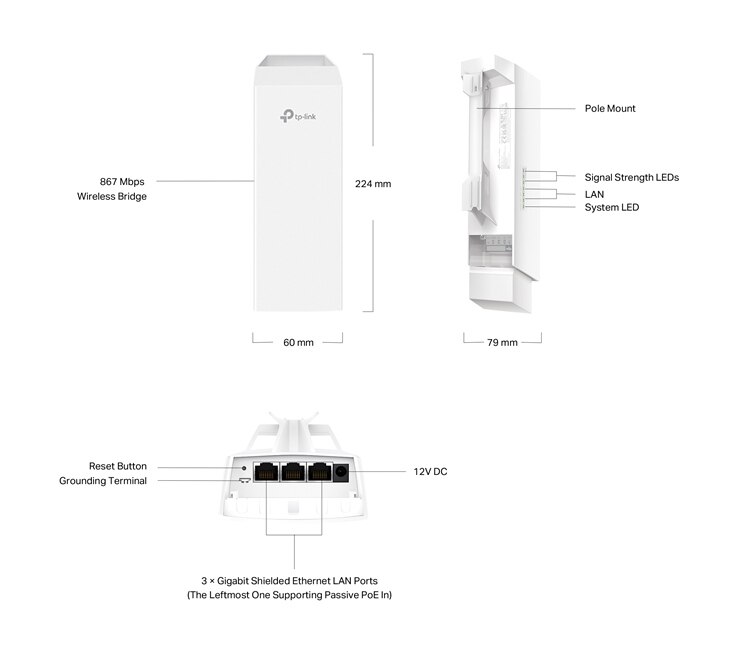

Dimensions ( W x D x H )3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)
Antenna TypeInternal 2×2 Dual-polarized directional MIMO antennas
5 GHz: 7.0 dBi
Horizontal:70°, Vertical: 70°
Weatherproof EnclosureIP65

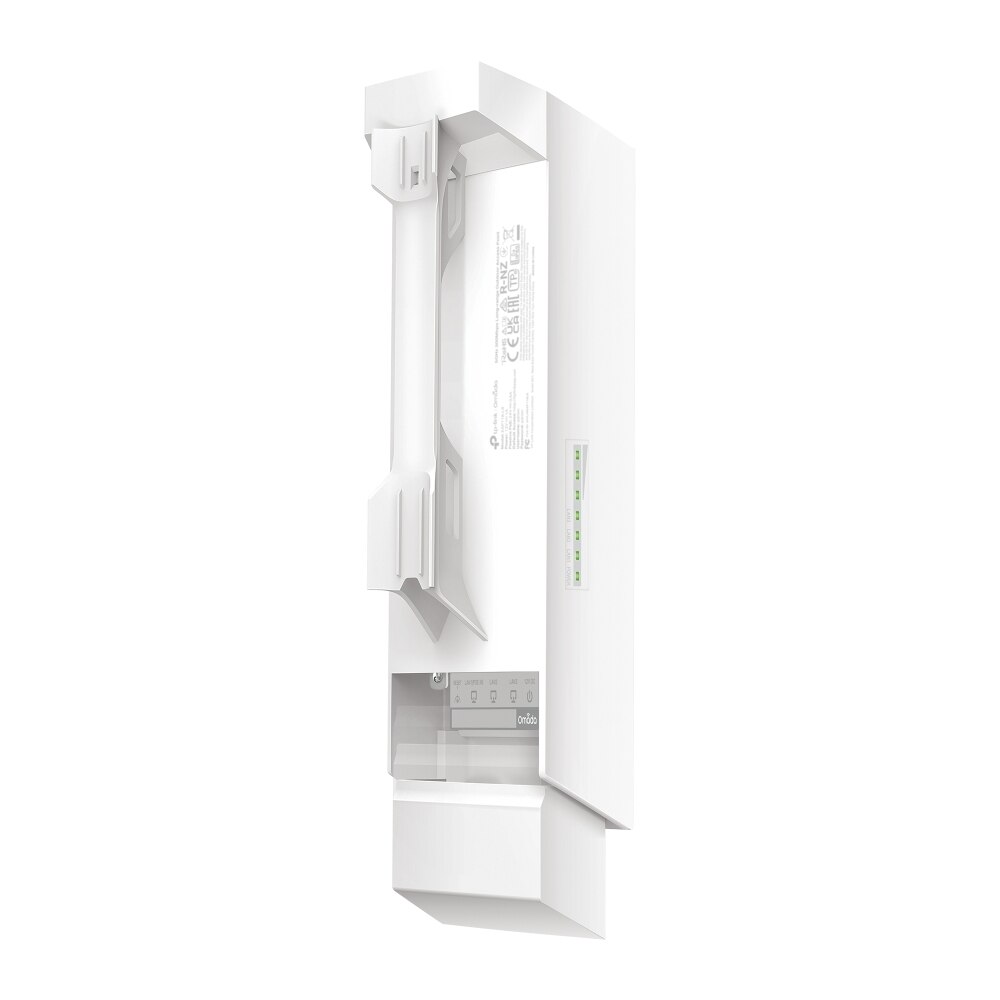

MountingPole Mounting (Accessories included)
WIRELESS FEATURES
Coverage1000m(3280ft)5
Wireless StandardsIEEE 802.11 a/b/g/n/ac
Frequency5 GHz
Signal Rate5 GHz: Up to 867 Mbps
Wireless Functions• Mesh*4
• MU-MIMO: 5G 2x2 MU-MIMO DL
• Load Balance
• Seamless Roaming(802.11r)
• Beamforming
• Airtime Fairness
• Multiple SSIDs:8
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP/Dynamic IP
Wireless Security• VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication*4
• Maximum number of MAC Filter: 4,000
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise
Transmission Power

• CE:
<23dBm (5 GHz, band 1/2, EIRP);
<30dBm (5 GHz band3, EIRP);

• FCC:
<22dBm (5 GHz band1/4)

MANAGEMENT
Omada AppYes
Restore & BackupYes
Firmware update via WebYes
NTPYes
Centralized Management• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud AccessYes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
SSHYes
Web-based ManagementYes
CertificationCE, FCC, RoHS
Environment• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing
