TP-Link AX1800 Indoor/Outdoor Dual-Band Wi-Fi 6 Access Point

(0)No Reviews yet
  • SKU: EAP625-Outdoor HD
$149.99

Out of Stock

 Open chat or call us for stock status

Product Information

TP-Link EAP625-Outdoor HD

AX1800 Indoor/Outdoor Dual-Band Wi-Fi 6 Access Point

High-Performance Wi-Fi 6

Powered by the latest WiFi 6 technologies, such as MU-MIMO and 1024 QAM, our EAP625-Outdoor HD brings speeds up to 1.8 Gbp.

Long Distance Starts with External Antennas

Two detachable external antennas for 5 GHz and 2.4 GHz provide optimal coverage and greater flexibility for your network.

Ideal for High-Density Outdoor Scenes

OFDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open areas. Equipped with an IP67 weatherproof enclosure, our EAP625-Outdoor HD withstands the most extreme environments.


Features:

  • Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz.*1
  • Supports WiFi 6 technologies, such as 1024-QAM, OFDMA, etc.*2
  • High-density connectivity up to 1,000+ clients.*3
  • Long-range coverage with the high-power amplifier and 2× detachable antennas.
  • IP67 weatherproof enclosure for various outdoor environments.
  • Advanced Functions: Centralized management, Omada mesh, and seamless roaming.*4
  • PoE+ Powered: Supports both 802.3at PoE (adapter not included).

Specifications

Specifications EAP625-Outdoor HD

HARDWARE FEATURES

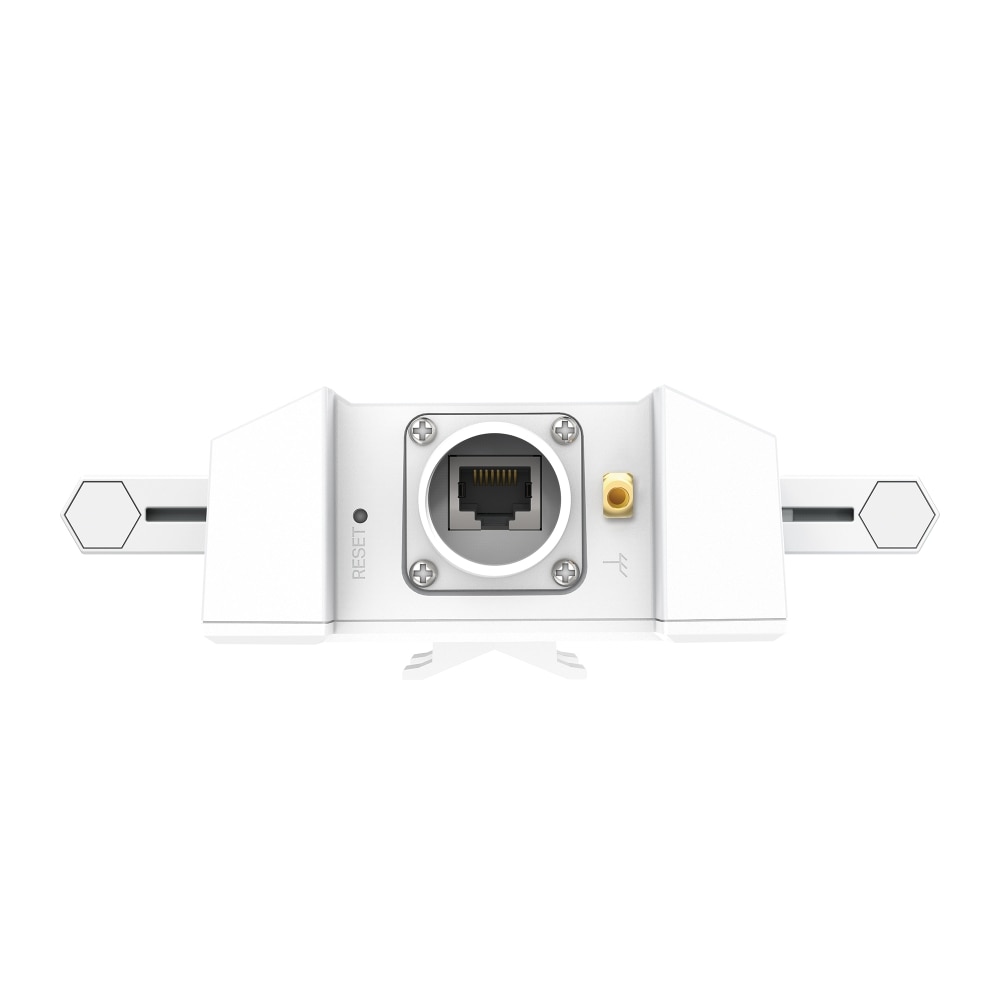

Interface1x Gigabit Ethernet Port
ButtonReset
Power Supply

• 802.3at PoE
• 48V Passive PoE

Note: PoE adapter is not included.

Power Consumption• EU: 12.5W (802.3at PoE or Passive PoE)
• US: 14.7W (802.3at PoE or Passive PoE)

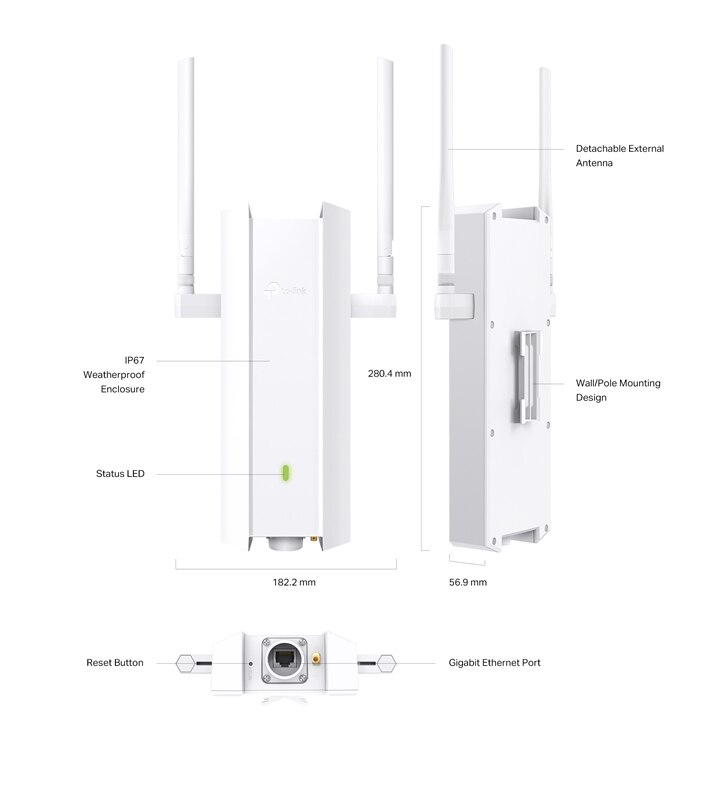

Dimensions ( W x D x H )7.2 × 2.2 × 11.1 in (182.2 × 57 × 281 mm)*5
Antenna Type2× External Dual-Band Omni Antennas
• 2.4 GHz: 3.0 dBi;
• 5 GHz: 5.0 dBi
BluetoothV5.2
Weatherproof EnclosureIP67

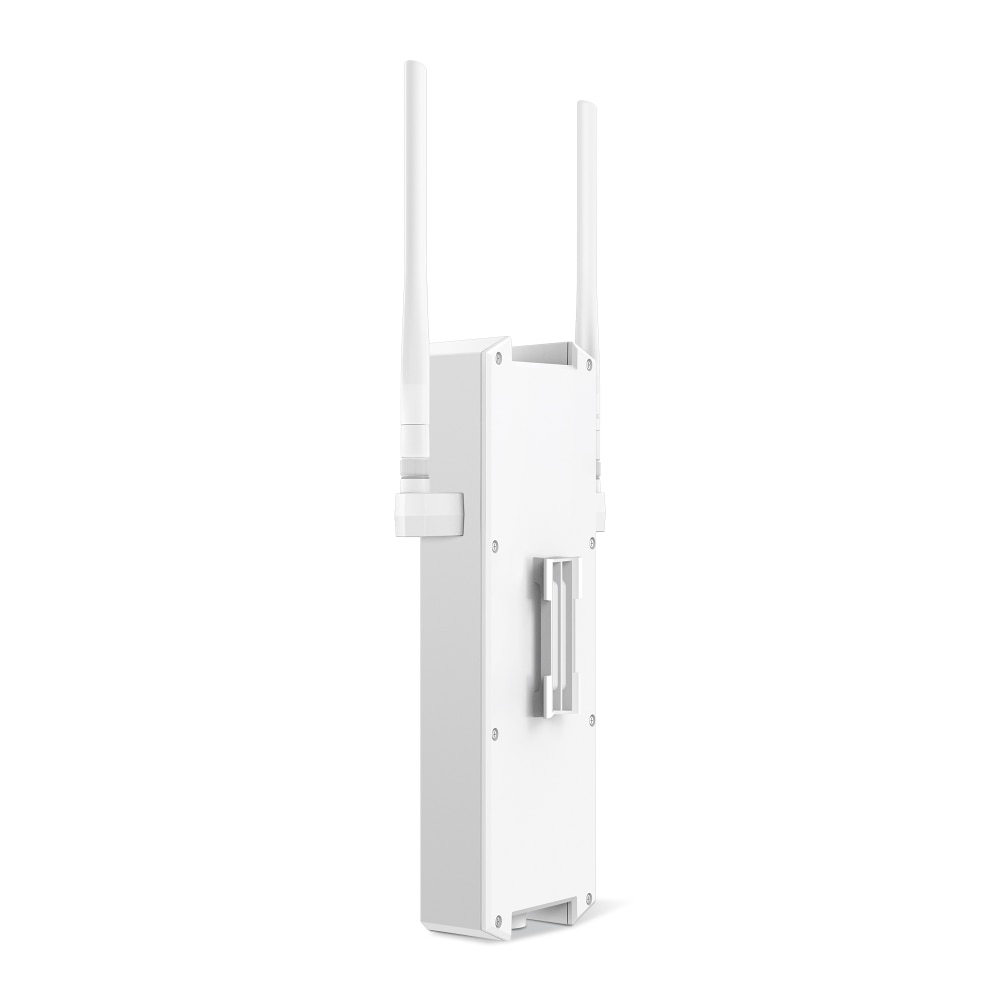

MountingPole/Wall Mounting (Kits included)
WIRELESS FEATURES
Concurrent Clients1,020+3
Wireless StandardsIEEE 802.11 a/b/g/n/ac/ax
Frequency5 GHz, and 2.4 GHz
Signal Rate• 5 GHz: Up to 1201 Mbps
• 2.4 GHz: Up to 574 Mbps
Wireless Functions• Mesh*4
• Seamless Roaming(802.11k/v/r)*4
• Automatic Channel Assignment
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDs:16 (8 for each band)
• MU-MIMO (2x2 MU-MIMO DL)
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP/Dynamic IP
Wireless Security• VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication*4
• Maximum number of MAC Filter: 4,000
• Wireless Isolation between Clients
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• 802.1X Support
Transmission Power• CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP);
• FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)
MANAGEMENT
Omada AppYes
Restore & BackupYes
Firmware update via WebYes
NTPYes
Centralized Management• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud AccessYes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
SSHYes
Web-based ManagementYes
CertificationCE, FCC, RoHS
Environment• Operating Temperature: -30 °C–70 °C (-22 °F–158 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing
