TP-Link BE5000 Wall Plate Wi-Fi 7 Access Point
- SKU: EAP725-Wall
$134.99
Product Information
TP-Link EAP725-Wall
BE5000 Wall Plate Wi-Fi 7 Access Point
Optimized Wired Performance with 2.5G PoE Ports
With 2.5G PoE input and pass-through ports, along with two Gigabit RJ45 ports, enjoy high-speed data transfers and connect multiple devices to your gigabit network. Wired devices, such as IP Phones, can be powered without the need for additional electrical cables.
The PoE pass-through feature requires an 802.3at/bt PoE input. If the power consumption of the AP's downstream device exceeds 7W, the AP needs an 802.3bt input.
Seamless Integration into the Omada SDN
Remotely manage your access points, switches, and routers across multiple sites — all from a single interface.
Features:
- BE5000 Wi-Fi 7 (4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).

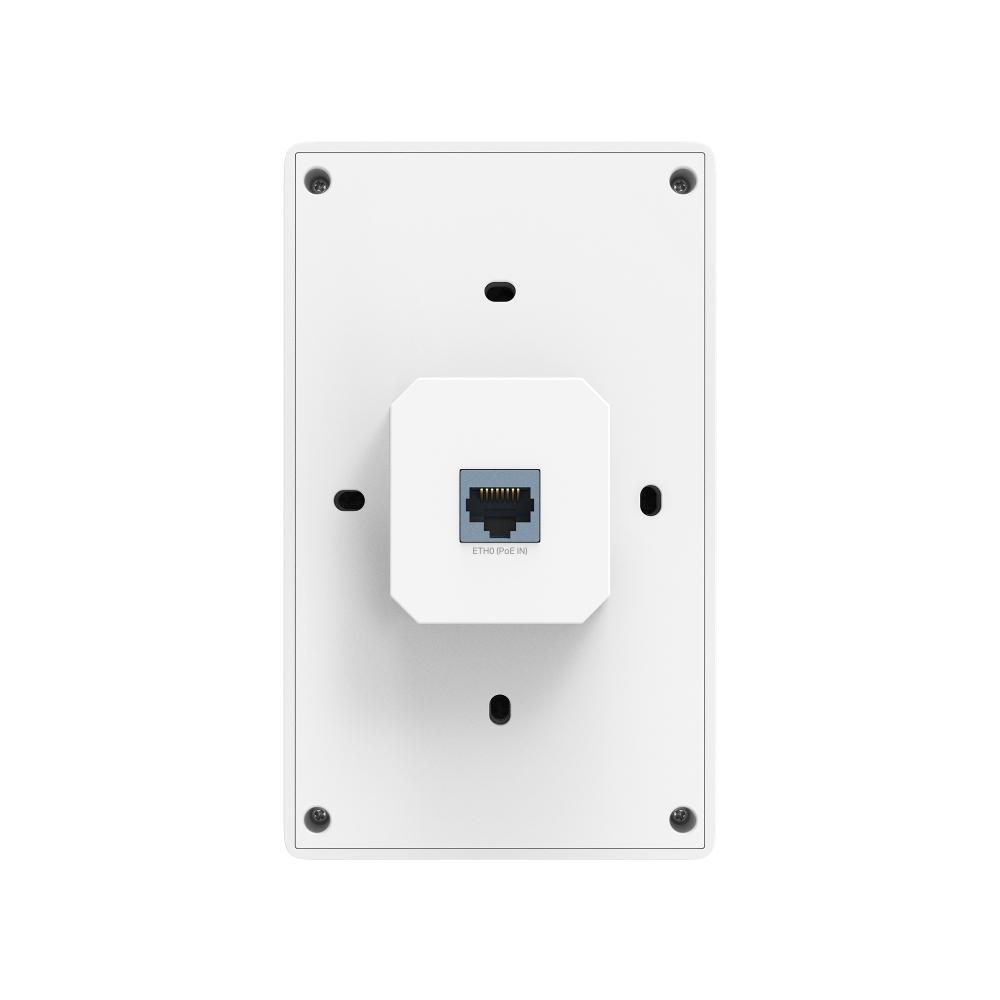

- 1× 2.5G PoE input port + 1× 2.5G pass-through port + 2× Gigabit RJ45 downlink ports.
- 240 MHz bandwidth enables many more simultaneous transmissions.
- Multi-RUs ensure the high performance of your network.
- Advanced Functions: Centralized management, Mesh, and Seamless Roaming.
Specifications
Specifications EAP725-Wall
| HARDWARE FEATURES | |
| Interface | • Uplink: 1× 2.5G Ethernet Port • Downlink: 1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports (The 2.5G port supports PoE pass-through. The PoE pass-through feature requires 802.3at/bt input. If the power consumption of the AP's downstream device exceeds 7W, the AP needs an 802.3bt input.) |
| Physical Security Lock | No |
| Button | Reset, LED |
| Power Supply | 802.3at/bt PoE |
| Max. Power Consumption | • 802.3bt: 17W (PoE Out support 15.4W) • 802.3at: 17W (PoE Out support 7W) |
| Dimensions ( W x D x H ) | 143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in) |
| Antenna | 4× Internal Antennas • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi |
| Mounting | Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Coverage | 50 ㎡ (600 ft²)** |
| Concurrent Clients | 250+§ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 4324 Mbps • 2.4 GHz: Up to 688 Mbps |
| Wireless Functions | • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming△ • Beamforming • Rate Limit (Based on SSID/Client) • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication△ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | < 22 dBm (2.4 GHz) < 22 dBm (5 GHz, band 1 & band 2 & band 3 & band 4) |
| MANAGEMENT FEATURES | |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Certification | FCC, RoHS |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
