TP-Link Omada Gigabit VPN Router

  • SKU: ER7206
  • Manufacturer: TP-Link
  • Data Sheet: Download
  • User Guide: Download
  • Availability: 47 In Stock    (updated live)
    47 In stock at College Station
US$‎149.99

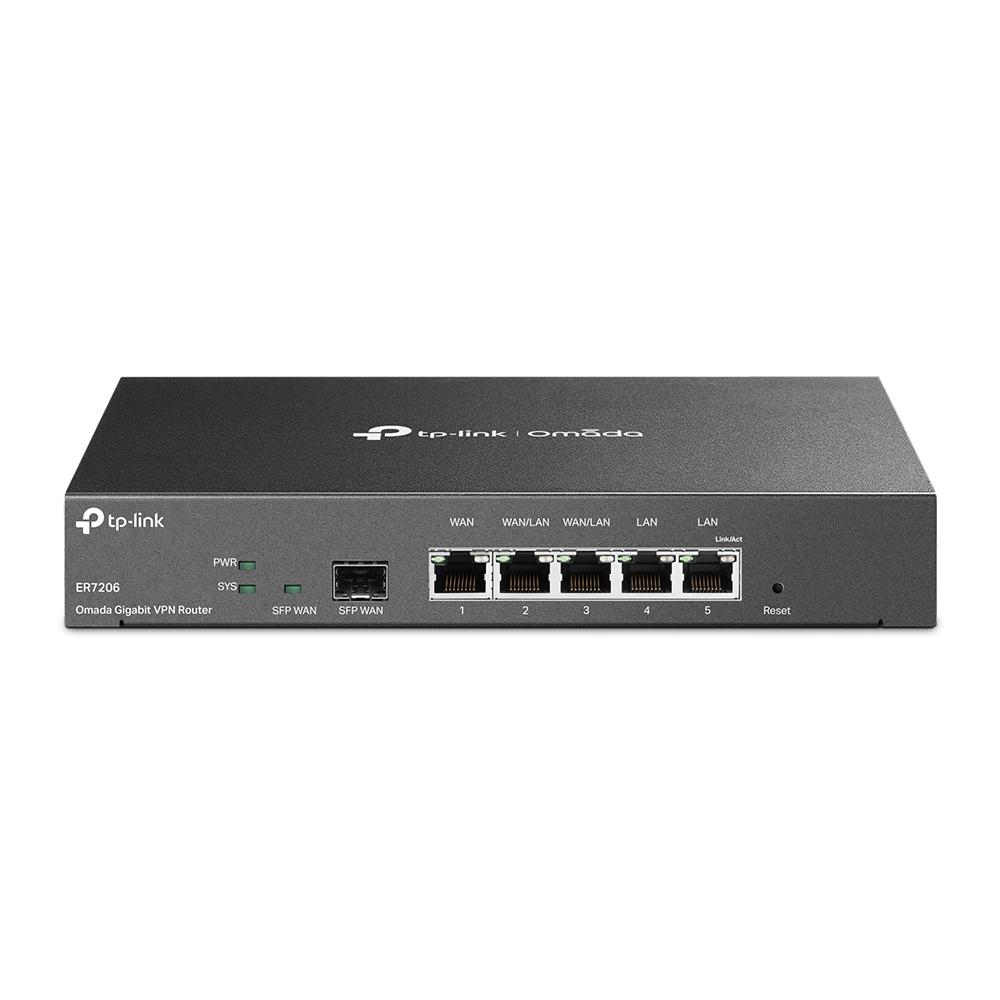

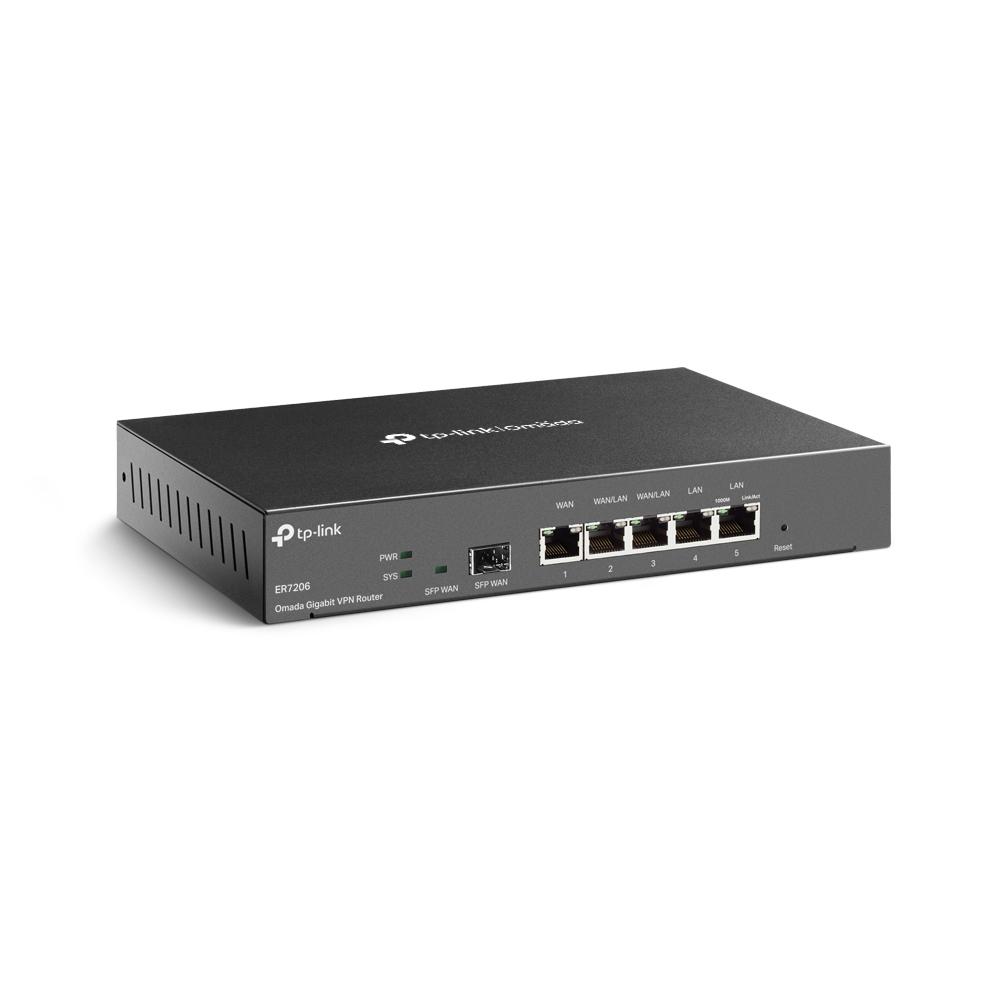

TP-Link ER7206

Omada Gigabit VPN Router

Omada SDN—The Smarter Cloud Solution for Business Networking

As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER7206 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience. Hassle-Free Centralized Cloud Management: 100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage

One gigabit SFP WAN port, one gigabit RJ45 WAN port, and two freely interchangeable WAN/LAN ports allow the router to support up to four WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

Highly Secure VPN

ER7206 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 100× LAN-to-LAN IPSec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.

Abundant Security Features

Powerful Firewall Advanced firewall policies protect your network and data.

Convenient VLAN Support

Create virtual network segments for enhanced security and simplified network management.

DoS Defense

Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.

IP/MAC/URL Filtering

Forcefully prevent viruses and attacks from intruders.

IP-MAC Binding

Reserves static IP assignment for clients to defend against ARP attacks and spoofing.

One-Click ALG Activation

One-Click ALG Activation for applications such as FTP, H323, SIP, IPSec and PPTP.

Internet Access Management Strategy

Standardize users’ online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.


Features:

  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity.
  • Up to 4 WAN Ports: 1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage.
  • Highly Secure VPN: Supports up to 100× LAN-to-LAN IPsec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections.
  • Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data.

Specifications ER7206

HARDWARE
Standards and Protocols• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q

• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface• 1 Fixed Gigabit SFP WAN Port • 1 Fixed Gigabit RJ45 WAN Port • 2 Fixed Gigabit RJ45 LAN Ports • 2 Changeable Gigabit RJ45 WAN/LAN Ports
Network Media• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 100BASE-TX: UTP category 5, 5e cable (Max 100m) EIA/TIA-568 100Ω STP (Max 100m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
ButtonReset Button

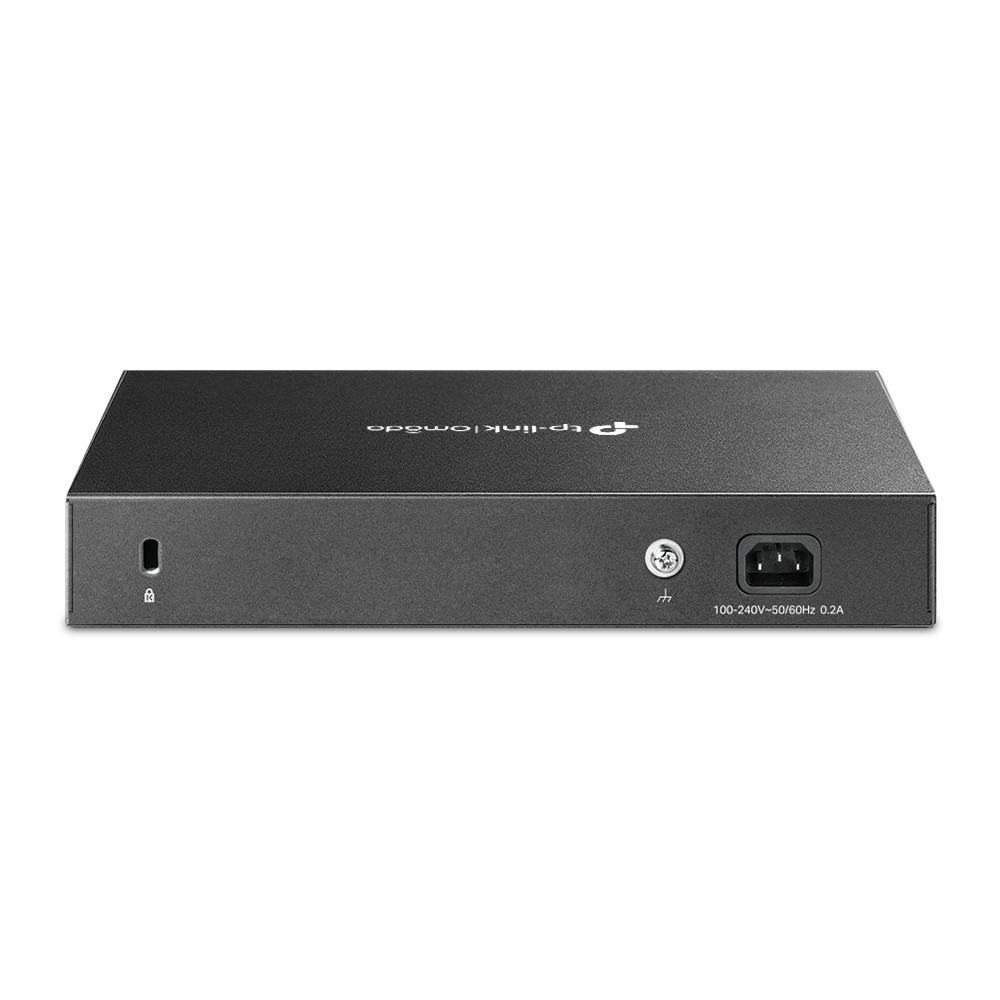

Power Supply100–240 V~50/60 Hz
FlashSPI 4MB + NAND 128MB
DRAM512MB
LEDPWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensions ( W x D x H )8.9 × 5.2 × 1.4 in. (226 × 131 × 35 mm)
PERFORMANCE
Concurrent Session150,000
IPsec VPN Throughput291.6 Mbps
BASIC FUNCTIONS
WAN Connection Type• Static/Dynamic IP • PPPoE • PPTP • L2TP
DHCP• DHCP Server • DHCP Address Reservation • Multi-IP Interfaces* • Multi-Net DHCP*
MAC CloneModify WAN/LAN MAC Address†
IPTVIGMP v2/v3 Proxy
VLAN802.1Q VLAN
ADVANCED FUNCTIONS
ACLIP/Port/Protocol/Domain Name Filtering
Advanced Routing• Static Routing • Policy Routing
Bandwidth Control• IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth
Load Balance• Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing§, Failover) • Online Detection
NAT• One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security• SPI Firewall • VPN Passthrough • FTP/H.323/PPTP/SIP/IPsec ALG • DoS Defence, Ping of Death • Local Management
Session LimitIP-based Session Limit
VPN
IPsec VPN• 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2* • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN• PPTP VPN Server • 10 PPTP VPN Clients • 50 Tunnels • PPTP with MPPE Encryption
L2TP VPN• L2TP VPN Server • 10 L2TP VPN Clients • 50 Tunnels • L2TP over IPSec
OpenVPN• OpenVPN Server* • 10 OpenVPN Clients* • 50 OpenVPN Tunnels*
SECURITY
Attack Defense• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
FilteringWEB Group Filtering
URL Filtering
Web Security
ARP Inspection• Sending GARP Packets§ • ARP Scanning • IP-MAC Binding
Access ControlSource/Destination IP Based Access Control
AUTHENTICATION
Web Authentication• No Authentication • Simple Password* • Hotspot(Local User / Voucher* / SMS* / Radius*) • External Radius Sever • External Portal Sever* • Facebook*
MANAGEMENT
Omada AppYes
Centralized Management• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
ServiceDynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Cloud AccessYes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Maintenance• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3* • Diagnostics (Ping & Traceroute)§ • NTP Synchronize§ • Syslog Support
Management Features• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration • ZTP (Zero-Touch Provisioning)**
OTHERS
CertificationCE, FCC, RoHS
Environment• Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
