Product Information

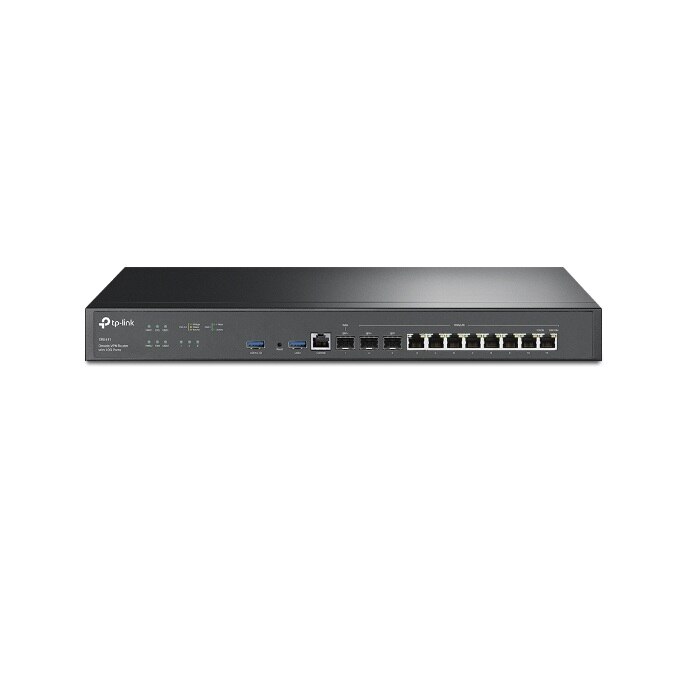

TP-Link ER8411

Omada VPN Router with 10G Ports

Software Defined Networking (SDN) with Cloud Access

Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network——all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Hassle-Free Centralized Cloud Management

100% centralized cloud management of the whole network from different sites——all controlled from a single interface anywhere, anytime.

Assign Different Management Roles

Multi-user privilege assignment is available to increase management efficiency and security. Multi-person management, multi-level permissions, and the ability to add admins as needed, enable flexible network operation and maintenance.

Easy and Intelligent Network Monitoring

Comprehensive Protection for the Whole Network The easy-to-use dashboard makes it easy to see your real-time network status; check network usage and traffic distribution; receive network condition logs, abnormal event warnings, and notifications; or even track key data for better business results. Network topology helps IP admins quickly see and troubleshoot connection at a glance.



Features:

  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*3, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Two 10GE SFP+ Ports: 1× WAN and 1× WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity.
  • Up to 10 WAN Ports: Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband 1.
  • Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN are ideal for use across multiple branches and for WFH.
  • Abundant Security Features: Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security.

Specifications

Specifications

Dimensions ( W x D x H )17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
HARDWARE FEATURES
• 2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
• 1× 1GE SFP WAN/LAN Ports
• 8× 1GE RJ45 WAN/LAN Ports
• 1× RJ45 Console Ports
• 2× USB Ports (Connecting 4G/3G Modem as WAN Backup)
Interface
ButtonReset Button
Power SupplyRedundant Dual Power Supplies (100–240 VAC, 50/60 Hz)
Flash4MB SPI NOR + 256 MB NAND
DRAM4 GB DDR4
LEDPWR, SYS, WAN, LAN, USB, FAN
Max Power Consumption• 26.36 W (with USB 3.0 connected)• 19.12 W (without USB 3.0 connected)
PERFORMANCE
Concurrent Session2,300,000
New Sessions /Second20,000
NAT (Static IP)• Upload: 9445.82 Mbps • Download: 9449.26 Mbps
NAT(DHCP)• Upload: 9426.83 Mbps • Download: 9426.20 Mbps
NAT(PPPoE)• Upload: 9413.96 Mbps • Download: 9102.01 Mbps
NAT (L2TP)• Upload: 4230.62 Mbps • Download: 4169.53 Mbps
NAT (PPTP)• Upload: 3933.86 Mbps • Download: 3821.97 Mbps
64 Byte Packet Forwarding Rate• Upload: 1080 Mbps • Download: 1030 Mbps
IPsec VPN Throughput• SHA1-AES256: 2140.45 Mbps • SHA2-AES256: 2080.20 Mbps
OpenVPN1665.64 Mbps
L2TP VPN Throughput• Unencrypted: 5013.50 Mbps • Encrypted: 2274.74 Mbps
SSL VPN Throughput1511.10 Mbps
BASIC FUNCTIONS
WAN Connection Type
• Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
• 6to4 Tunnel
• Pass-Through
• Mobile Broadband: 4G/3G modem for backup via USB port
MAC CloneModify WAN/LAN MAC Address*4
DHCP• DHCP Server/Client • DHCP Address Reservation • Multi-net DHCP • Multi-IP Interfaces
IPv6WAN Connection
VLAN802.1Q VLAN
IPTVIGMP v2/v3 Proxy
ADVANCED FUNCTIONS
ACLIP/Port/Protocol/Domain Name Filtering
Advanced Routing• Static Routing • Policy Routing
Bandwidth Control• IP/Port-based Bandwidth Control • Guarantee & Limited Bandwidth
Load Balance
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing*5, Failover)
• Online Detection
NAT
• One-to-One NAT*5
• Multi-Net NAT
• Virtual Server
• Port Triggering*5
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Security
• SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management
Session LimitIP-based Session Limit
VPN
SSL VPN• SSL VPN Server • SSL VPN Client • 500 OpenVPN Tunnels
IPsec VPN
• 300 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm
• IKE v1/v2
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN
• PPTP VPN Server
• PPTP VPN Client (32)*6
• 300 Tunnels (Shared with L2TP)
• PPTP with MPPE Encryption
L2TP VPN
• L2TP VPN Server
• L2TP VPN Client (32)*6
• 300 Tunnels (Shared with PPTP)
• L2TP over IPSec
OpenVPN
• OpenVPN Server
• OpenVPN Client (10)*6
• 110 OpenVPN Tunnels
SECURITY
Filtering• WEB Group Filtering*5 • URL Filtering • Web Security*5
ARP Inspection• Sending GARP Packets*5 • ARP Scanning*5 • IP-MAC Binding*5
Attack Defense• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN
Access ControlSource/Destination IP Based Access Control
AUTHENTICATION
Web Authentication
• No Authentication
• Simple Password*2
• Hotspot(Local User / Voucher*2 / SMS*2 / Radius*2
• External Radius Sever
• External Portal Sever*2
• Facebook Check-In*2
• Instagram Follow*2
MANAGEMENT
Omada AppYes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud AccessYes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
ServiceDynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)*5
• NTP Synchronize*5
• Syslog Support
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
Management Features
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
