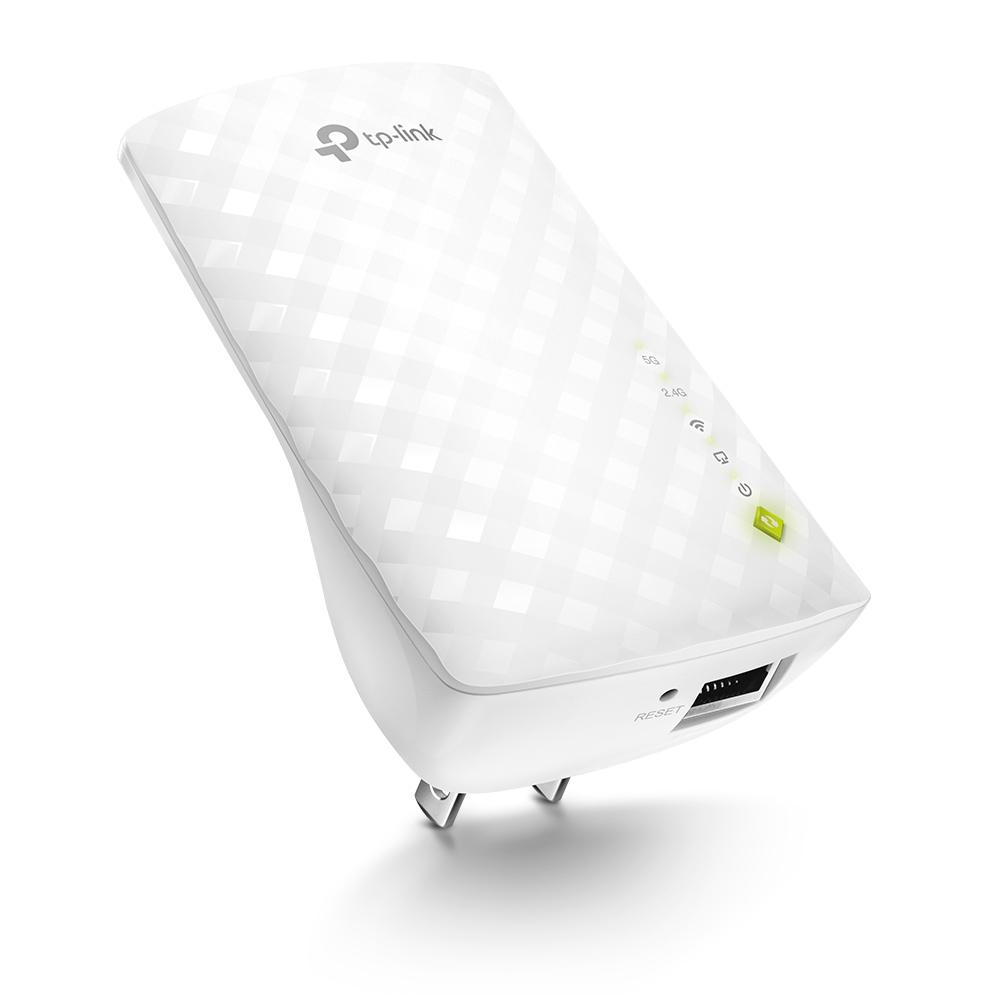

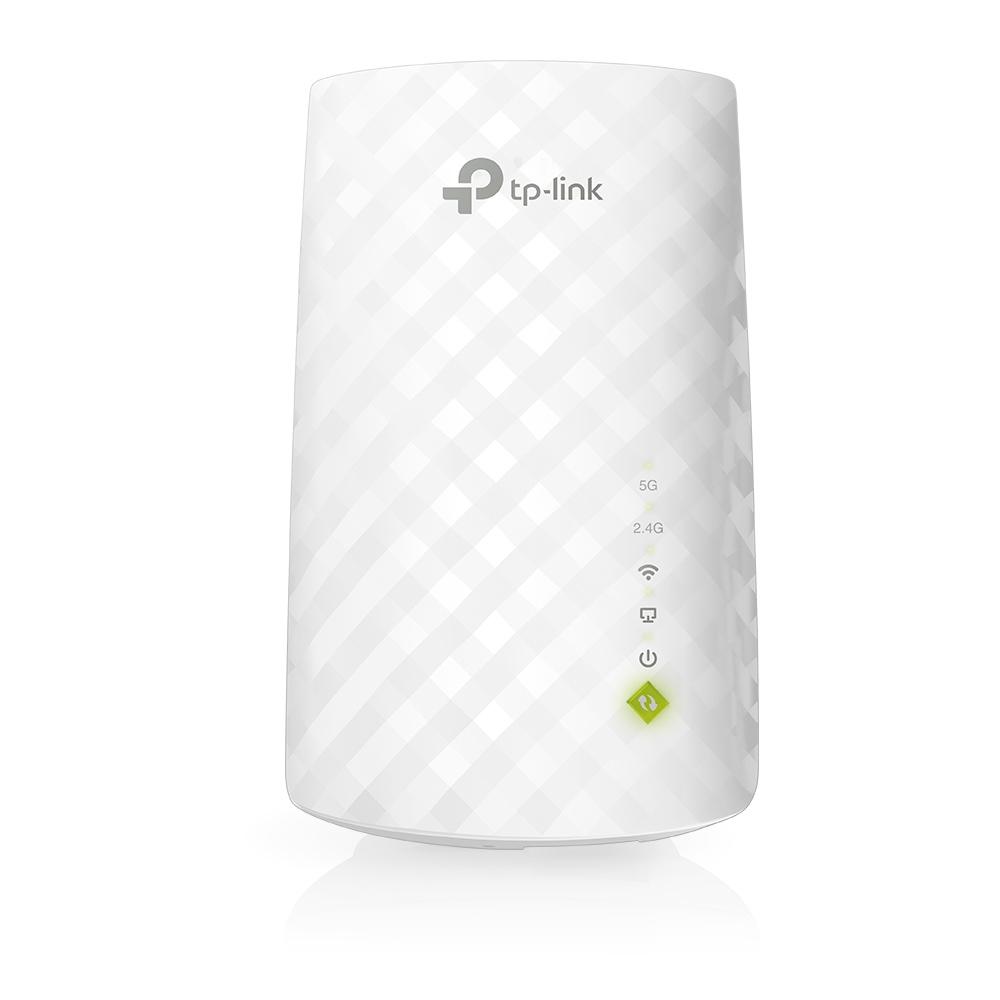

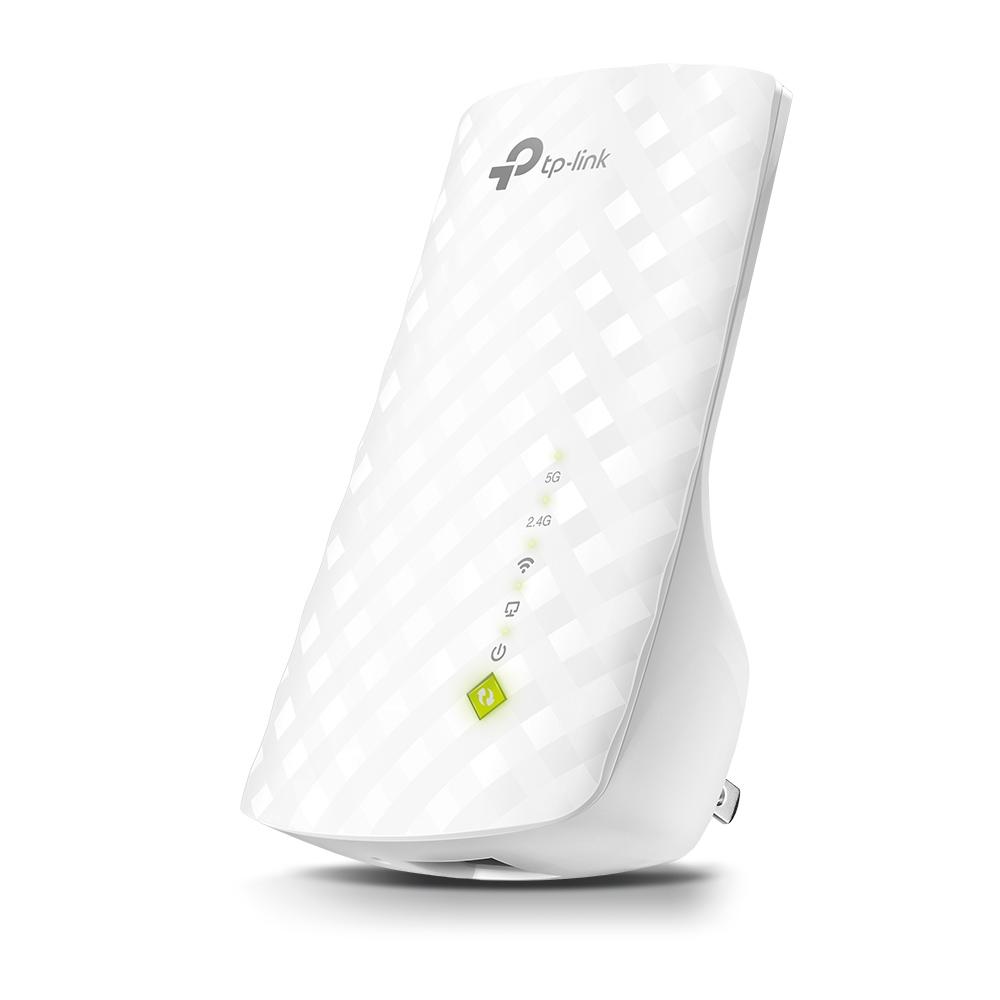

TP-Link AC750 WiFi Range Extender
AC750 WiFi Range Extender
Boost Your WiFi to hard-to-reach Areas
Place the RE220 between your wireless router and wireless devices, expanding WiFi coverage while eliminating WiFi dead zones with dual-band WiFi speeds that can reach up to 750 Mbps.* Make the most of your ISP speeds by streaming HD videos, gaming online and other bandwidth-intensive tasks.
Stable Dual Band Connection for More Devices*
The RE220’s wireless AC technology creates faster and stronger WiFi connections across your home for all your devices. Dual 2.4 GHz and 5 GHz bands provide WiFi connections for up to 20 devices, allowing you to enjoy a stable WiFi experience on all your devices.
Simple Two-Step Setup
- Step 1: Press the WPS button on the router and RE220 to easily connect the extender to the network. Or connect the extender via Tether app or Web UI if your router doesn’t support WPS.
- Step 2: Relocate the extender to a better location for optimal WiFi coverage with the help of the smart signal indicator light.
An Access Point and Wireless Adapter
The Ethernet port of RE220 can easily turn your wired Internet connection into a wireless access point. It can also function as a wireless adapter to connect wired devices.
High Speed Mode for Maximized Performance
High Speed Mode uses one dedicated WiFi band as backhaul and another dedicated WiFi band as an access point to maximize the bandwidth on extender's WiFi.
The RE220 is compatible with any of your existing WiFi router or access points, making it easy to expand and strengthen your WiFi network.
Smart Management by Tether App
Set up and manage your WiFi through the TP-Link Tether app on your smartphone (Android, iOS).
- Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
- Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices
- Dual band speeds up to 750Mbps*
- Miniature size and wall-mounted design make it easy to deploy and move flexibly
- Ethernet port allows the Extender to function as a wireless adapter to connect wired devices
|Standards and Protocols||IEEE802.11ac,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b|
|Interface||1 x 10/100M Ethernet Port (RJ45)|
|Button||RE (Range Extender) Button, Reset Button|
|Power Consumption||About 6.5W|
|Dimensions ( W x D x H )||4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)|
|Antenna||3 x internal|
|Frequency||2.4GHz & 5GHz|
|Signal Rate||5GHz:Up to 433Mbps 2.4GHz:Up to 300Mpbs|
|Reception Sensitivity||2.4G: 270M: -70dBm@10% PER 130M: -70dBm@10% PER 108M: -73dBm@10% PER 54M: -75dBm@10% PER 11M: -86dBm@8% PER 6M: -92dBm@10% PER 1M: -94dBm@8% PER 5G: 390M: -60dBm@10% PER 29.3M: -83dBm@10% PER 180M: -64dBm@10% PER 13.5M: -87dBm@10% PER 78M: -68dBm@10% PER 6.5M: -90dBm@10% PER 54M: -75dBm@10% PER 6M：-90dBm@10% PER|
|Transmit Power||< 20 dBm (EIRP)|
|Wireless Modes||Range Extender|
|Wireless Functions||WMM (Wi-Fi Multimedia) Wireless Statistic Domain Login Function|
|Wireless Security||64/128/152-bit WEP WPA-PSK / WPA2-PSK|
|Package Contents||AC750 Wi-Fi Range Extender RE220 Quick Installation Guide|
|System Requirements||Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.|
|Environment||Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing|
