TP-Link Omada 10GBase-BX Single-Mode WDM Bi-Directional SFP+ LC Module
- SKU: SM5110LSA-10
$34.99
Product Information

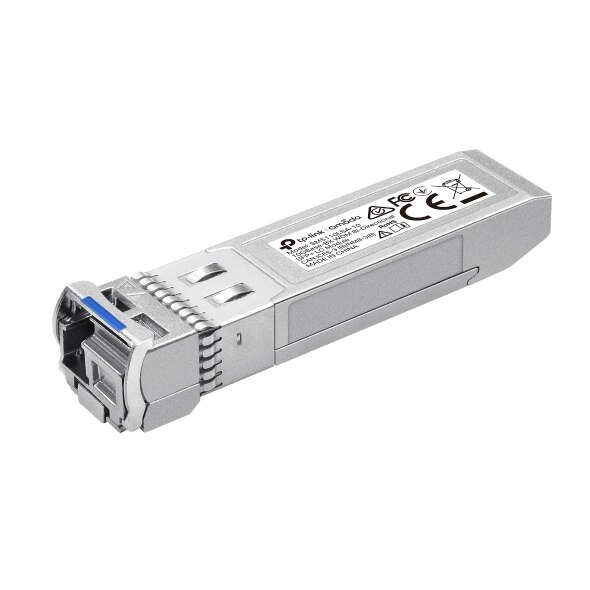

TP-Link SM5110LSA-10
Omada 10Gbase-BX Single-Mode WDM Bi-Directional SFP+ Module
The SM5110LSA-10 is designed to extend transmission distance up to 10km with a maximum rate of 10Gbps. It is a single-mode SFP+ transceiver that supports bi-directional data transmission, which is cost-saving.
*Note: Use SM5110LSA-10 & SM5110LSB-10 together for fast and reliable connectivity.
Features:
- Supports WDM Bi-Directional technology, using a single strand of fiber, cost saving
- Single mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+)
- Compatible with switches with 10G ports like SG3428X and SG3452X
Specifications
Specifications SM5110LSA-10
| TRANSCEIVER | |
| Standards and Protocols | • IEEE 802.3ae • SFF 8431, SFF 8432, SFF-8472 |
| Wave Length | •TX: 1330nm •RX: 1270nm |
| Power Supply | 3.3V |
| Fiber Type | 9μm/125μm Single-Mode |
| Max. Cable Length | 10km |
| Data Rate | 10.3125 Gbps |
| Connector | LC/UPC |
| Regulatory Compliance | CE, FCC, RoHS |
| Environment | • Operating Temperature: 0°C to 70°C (32–158 ℉) • Storage Temperature: -40°C to 85°C (-40°F to 185°F) • Operating Humidity: 10% to 90% RH non-condensing • Storage Humidity: 5% to 90% RH non-condensing |
| HARDWARE FEATURES | |
| DDM | Yes |
| Hot Swappable | Yes |
| Dimensions ( W x D x H ) | 2.24*0.55*0.47 in (57*14*12.0 mm) |
