Product Information

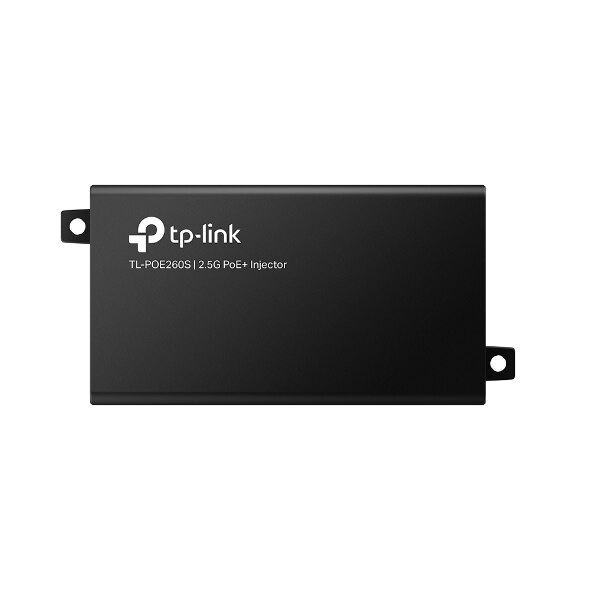

TP-Link POE260S
2.5G PoE+ Injector Adapter
The 2.5G PoE+ Injector TL-POE260S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or other equivalent products, to expand your network to where there are no power line or outlet, where you wish to fix device such as 2.5G AP, HD IP Camera or IP Phone, etc.
Features:
- 2x2.5 Gbps ports ensure faster transmission
- Complies with IEEE802.3af/at standards, supplies up to 30 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, requires no configuration
- Integrated power supply
Specifications
Specifications POE260S
| Standards | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3af, IEEE802.3at |

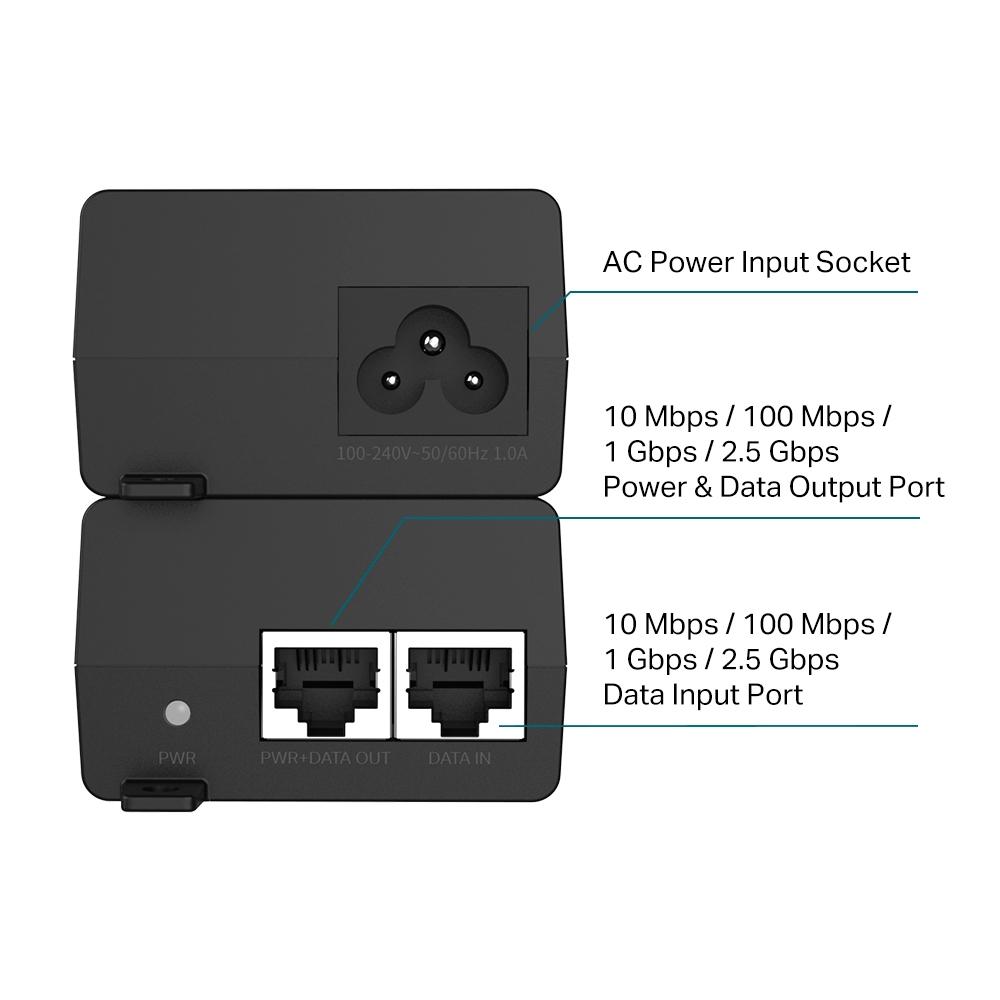

| Ports | • 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 data-in port • 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 power+data-out port • 1 AC socket |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) • 2.5GBASE-T: UTP category 5e or above cable(maximum 100 m) |
| Basic Function | • Auto-Sensing Algorithm enables providing power with 802.3af/at PD • Auto-determine the necessary power requirements • Wall-mounting and desktop installation supported • Plug-and-Play |
| Power | Input: 100-240 V, 50/60 Hz Output: Auto-determine the necessary power requirements (max. 30 W) |
| LED Indicator | ON: Supplying power normally OFF: No power supply |
| Dimensions ( W x D x H ) | 4.9*2.3*1.4 in (125*59.4*36.8 mm) |
| FCC, CE, RoHS | |
| Package Contents | TL-POE260S, power cord, RJ45 cable, installation guide, wall-mounting kits |
| Environment | Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing |
