TP-Link 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+

  • SKU: TL-SG1008MP
  • Manufacturer: TP-Link
  • Data Sheet: Download
  • Availability: 11 In Stock    (updated live)
US$‎129.99

HARDWARE FEATURES
Interface8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity1
Physical Security LockNo

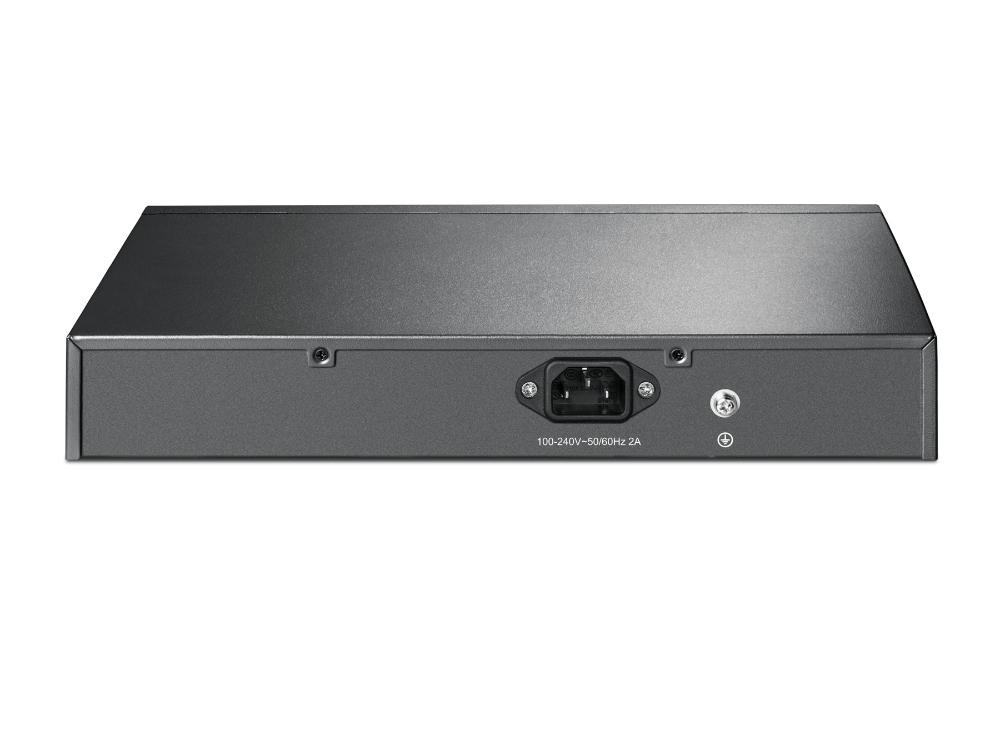

Power Supply100-240VAC, 50/60Hz
PoE+ Ports(RJ45)Standard: 802.3at/af (30W)
PoE+ Ports: 8 Ports
Total PoE Budget: 126W
Backbound Bandwidth16Gbps
Mac Address Table4K
Buffer Size1.5Mbits
Dimensions ( W x D x H )11.6 × 7.1 × 1.7 in.
(294 × 180 × 44 mm)
Mounting13" and 19" 1U rack mountable
Max Power Consumption9.9W(no PD load)
144.4W(with 124W PD load)
Max Heat Dissipation33.7BTU/h(no PD load)
492.6BTU/h(with 124W PD load)
SOFTWARE FEATURES
Advanced FeaturesCompatible With IEEE 802.3af/at Compliant power devices (PD)
Port Priority Function
MAC Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control
Transfer MethodStore-And-Forward
OTHERS
CertificationFCC, RoHS
Package ContentsTL-SG1008MP
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Consumption9.5 watts (max. no PD connected)
140.1 watts (max. with 126w PD connected)
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

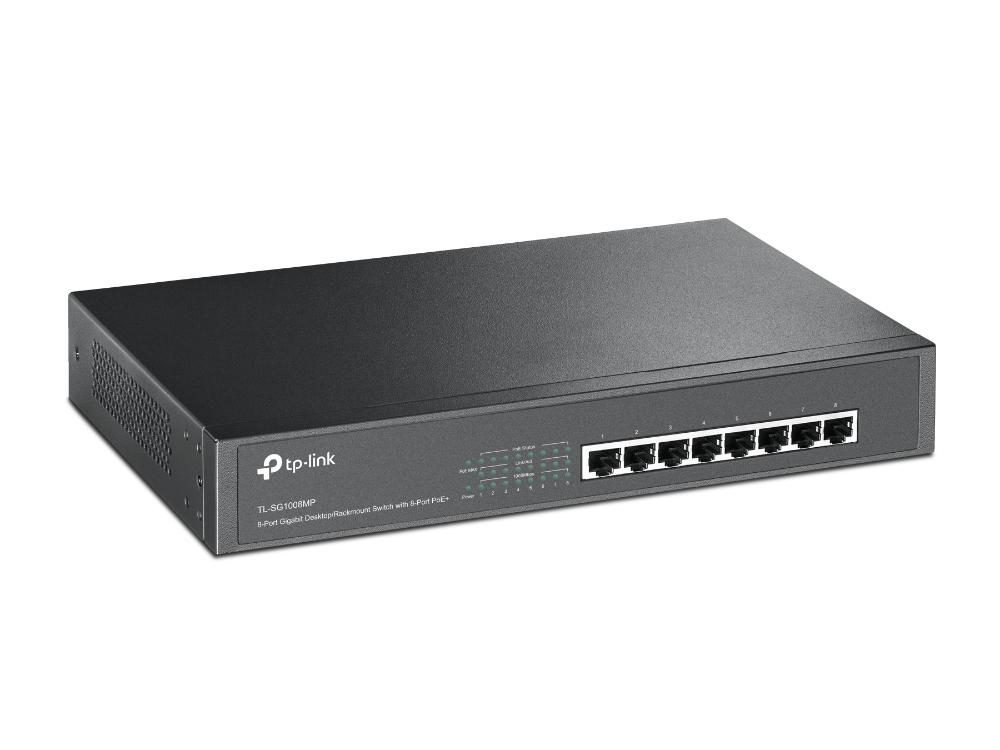

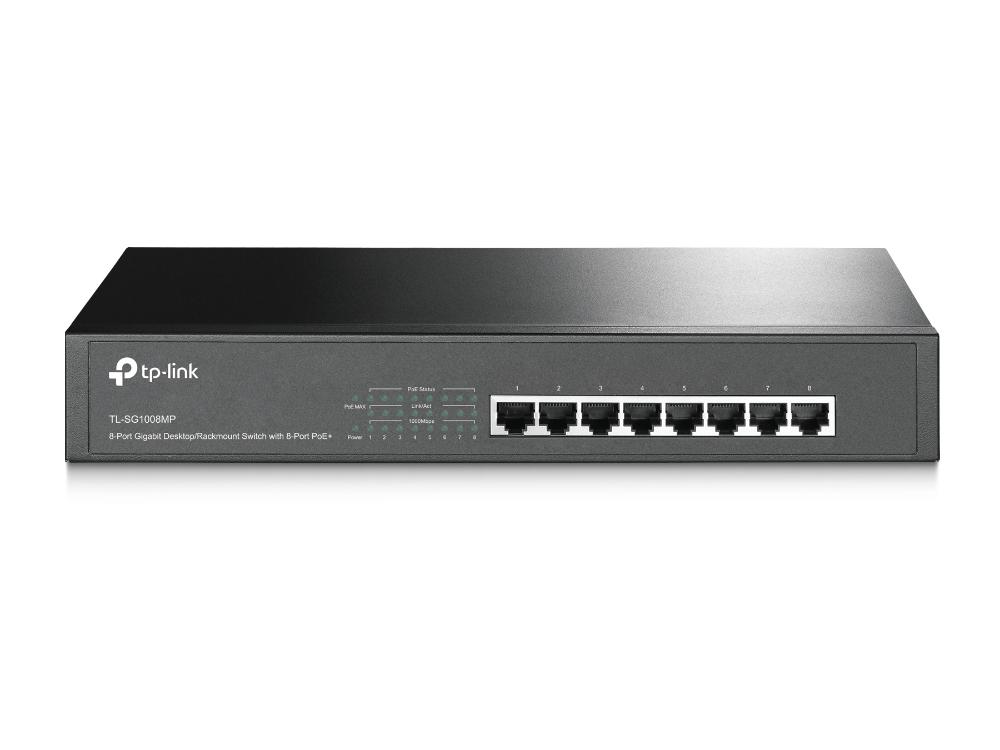

TP-Link TL-SG1008MP

8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+

What This Product Does

The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP reduces power consumption, making it an eco-friendly solution for your business network.

How This Product Works

All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.

Prioritized Power Supply

Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.

Easy To Use

TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.


Features:

  • 8 10/100/1000Mbps RJ45 ports
  • Equipped with 8 PoE+ ports to power 8 PoE devices at the same time
  • Works with IEEE 802.3af or 802.3at compliant up to 30W per port device
  • Innovative energy-efficient technology reduces power consumption
  • Rack mountable with included rack mount bracket
  • Total PoE power budget up to 126W
  • Plug and play design, no configuration required
